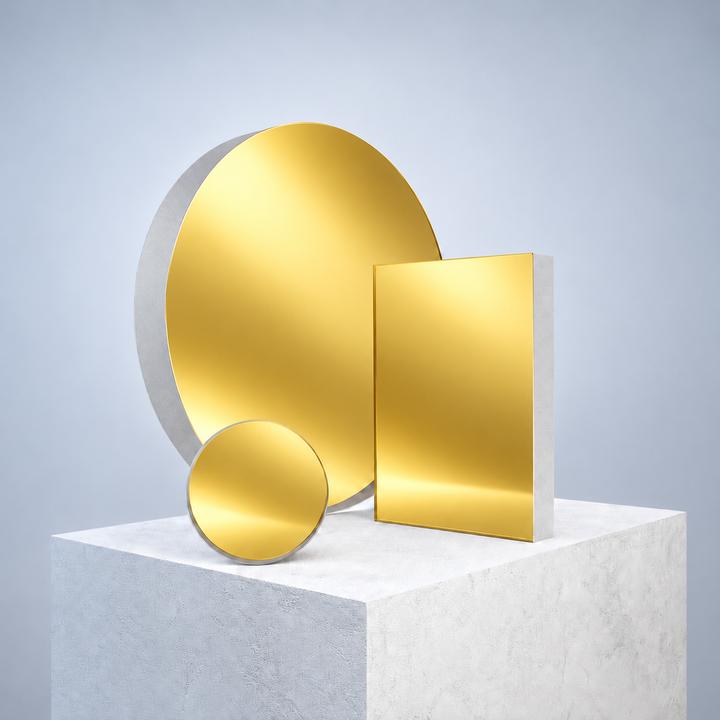

Protected Gold Plano Mirrors SKU: 094-3330
Variant specifications
| Product | Value |
|---|---|
| Shape Type | Rectangular |
| Center Thickness | 10 mm |
| Center Thickness Upper Tolerance | 0.2 mm |
| Center Thickness Lower Tolerance | -0.2 mm |
| Material | UVFS |
| Parallelism, angle | 0 - 30 sec |
| Surface 1 | Value |
|---|---|
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
| Clear Aperture, % | > 90 % |
| Surface 1, Wavelength 1 | Value |
|---|---|
| Coating | Metallic |
| Wavelength | 900 nm - 1200 nm |
| Reflectivity, % | > 98 % |
| LIDT | 1 J / cm² at 1064 nm, 50 Hz, 11 nsec pulses |
| Surface 2 | Value |
|---|---|
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
Variant files
Technical drawings, models and data files for SKU 094-3330.
