Protected Aluminium Mirrors SKU: 092-3115R-150

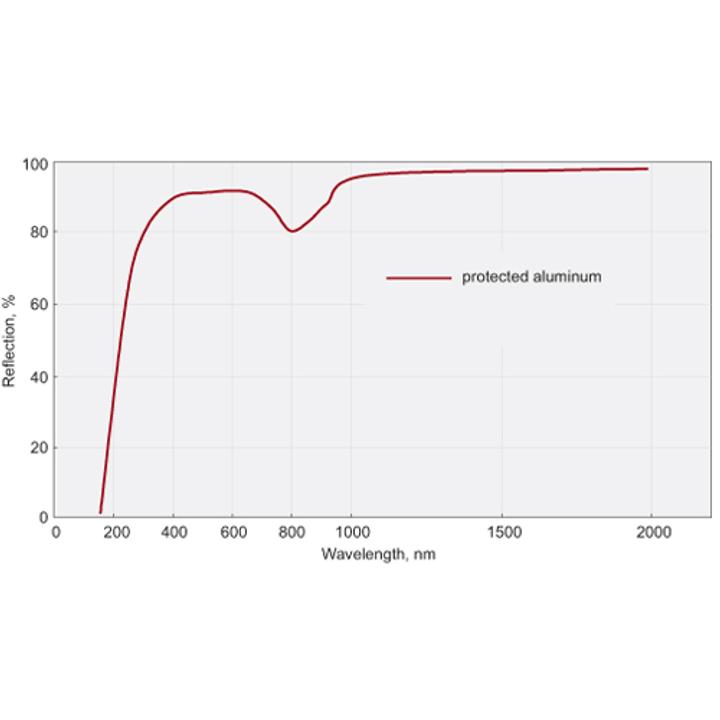

• LIDT - 0.25 J/cm² at 1064 nm, 50 Hz, 11 nsec pulses* • LIDT - 0.1 J/cm² at 355 nm, 50 Hz, 5.7 nsec pulses* • Average Reflection >86% for 300 nm – IR • Round, Square and Flat or Spherical Mirrors available • OEM capabilities - please contact for special pricing …
Variant specifications
| Specification | Value |
|---|---|
| Material | UVFS |
| Type | pl/cv |
| Size | ø 25.4 mm |
| Thickness | 6 mm |
| Radius | -150 mm |
| Group | Protected Aluminium Spherical Plano-Concave Mirrors |
Shared product specifications
These specifications apply across the Protected Aluminium Mirrors product family.
| Material | UVFS |
| S1 Surface Irregularity* | λ / 10 @ 633 nm |
| S1 Surface Quality* | 40-20 scratch & dig (MIL-PRF-13830B) |
| S2 Surface Quality | Commercial polish |
| Clear aperture | >90% of the diameter |
| Diameter Tolerance | 0.00 / -0.13 mm |
| Thickness Tolerance | ±0.2 mm |
| Laser Induced Damage Threshold @ 1064 nm | 0.25 J / cm² at 1064 nm, 50 Hz, 11 nsec pulses |
| Laser Induced Damage Threshold @ 355 nm | 0.1 J / cm² at 355 nm, 50 Hz, 5.7 nsec pulses |
Classification
| Coating | metallic |
