Variable Attenuator for Femtosecond and Nd:YAG Laser Pulses 990-0073
• Divides laser beam into two beams of manually adjustable intensity ratio separated by 68° angle • Large dynamic range • Transmitted beam shift ~1.4 mm • High optical damage threshold This variable… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Design Wavelength Range | Input Aperture Diameter | Extinction ratio | Angular Tilt Range | Beam Separation Angle | |
|---|---|---|---|---|---|---|---|
| 990-0073-1064 | Transmission type - Manual | 1064 nm - 1064 nm | 36 mm | 200:1 | 9 Deg | 68 deg 0 min 0 sec |
Out of stock
$1,854
|
| 990-0073-400H | Transmission type - Manual | 400 nm - 400 nm | 36 mm | 200:1 | 9 Deg | 68 deg 0 min 0 sec |
Out of stock
$2,004
|
| 990-0073-800B | Transmission type - Manual | 780 nm - 820 nm | 36 mm | 200:1 | 9 Deg | 68 deg 0 min 0 sec |
Out of stock
$2,184
|
| 990-0073-800H | Transmission type - Manual | 800 nm - 800 nm | 36 mm | 200:1 | 9 Deg | 68 deg 0 min 0 sec |
Out of stock
$2,028
|
| 990-0073-800HB | Transmission type - Manual | 780 nm - 820 nm | 36 mm | 200:1 | 9 Deg | 68 deg 0 min 0 sec |
1 in stock
Ships in: 2–5 calendar days
$2,304
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Transmission type - Manual |
| Input Aperture Diameter | 36 mm |
| Extinction ratio | 200:1 |
| Width | 125 mm |
| Length | 145 mm |
| Height | 150 mm |
| Weight | 0.6 kg |
| Angular Tilt Range | 9 Deg |
| Beam Separation Angle | 68 deg 0 min 0 sec |
Description
- Divides laser beam into two beams of manually adjustable intensity ratio separated by 68° angle
- Large dynamic range
- Transmitted beam shift ~1.4 mm
- High optical damage threshold

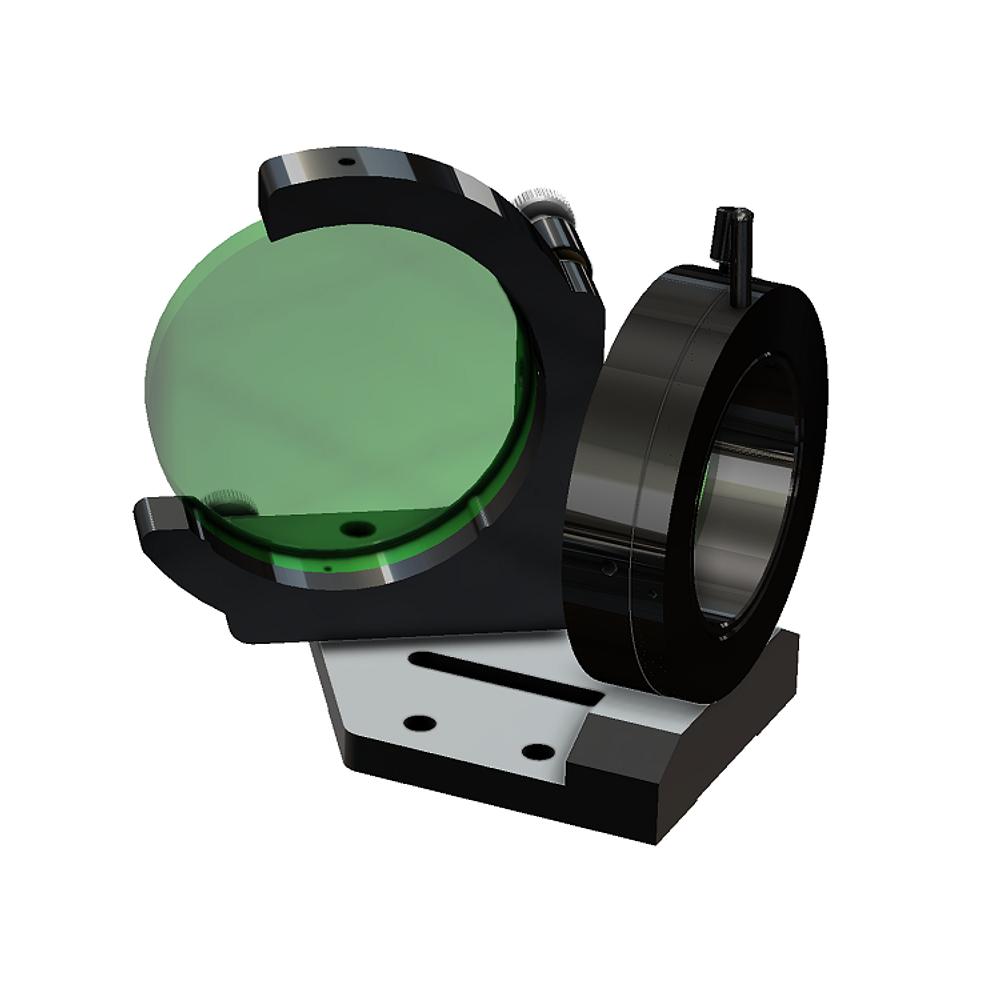

This variable attenuator/beamsplitter consists of UV FS Thin Film Brewster Type Polarizer diameter 76.2 mm, which reflect s-polarized light while transmitting p-polarized light, that is housed into Beamsplitter Mount 840-0056-13 and a quartz Zero Order (optically contacted) Half Waveplate diameter 40 mm (for femtosecond pulses), Zero Order Air-Spaced Half Waveplate (for high power applications) or Multi Order Half waveplate (for Nd:YAG laser pulses) is housed in rotating Polarizer Holder 840-0180-A2, placed in the incident linearly polarized laser beam.
The intensity ratio of those two separated and different polarized beams may be continuously varied without alteration of other beam parameters by rotating the waveplate. The intensity of either exit beam, or their intensity ratio, can be controlled over a wide dynamic range. P-polarization could be selected for maximum transmission, or high-purity s-polarization could be reflected when maximum attenuation of the transmitted beam takes place.
840-0056-13 Kinematic Mount allows to adjust angle of incidence (AOI) of the thin film Brewster type polarizers by ±4.5° and to get the maximum extinction contrast. The mounts are on one base plate.
The optical axis height is 58.5 mm from the table top.
