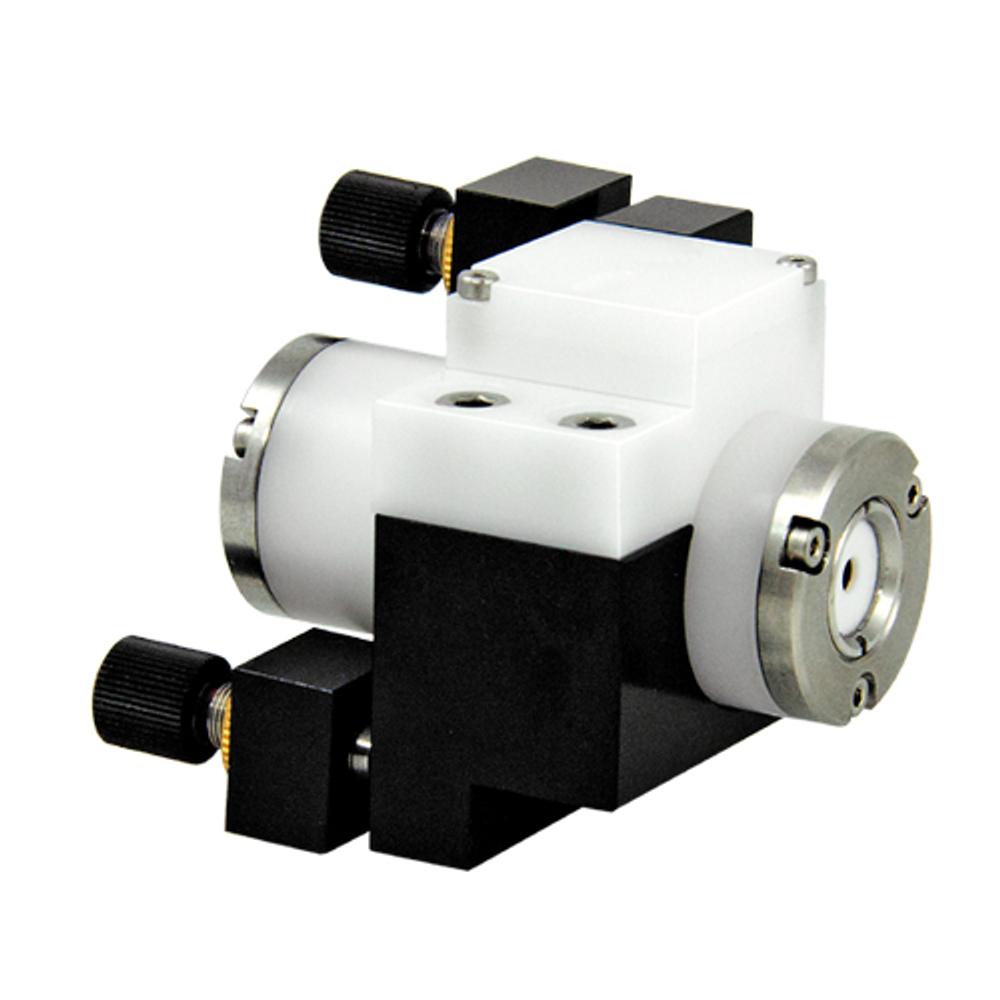

Mounting Stages for Pockels Cells of dia 25.4 mm
PCRH series mounting stage for Pockels cells of 25.4 mm of diameter.
Listed in
Configure & order — pick a catalog variant or configure your own
Amount of Adjustment Screws
Any
Adjustment Screw Thread
Any
or
Screw Sensitivity, µm
Any
6
catalog variants — refine the spec to narrow it down.
| SKU | Adjustment Screw Thread · Screw Sensitivity, µm · Amount of Adjustment Screws | |
|---|---|---|
| PCH1-2-0.25 | M6x0.25·0.5·2 |
Out of stock
—
|
| PCH1-2-0.35 | M6x0.35·1.3·2 |
Out of stock
—
|
| PCH1-2-0.5 | M6x0.5·1.5·2 |
Out of stock
—
|
| PCH1-3-0.25 | M6x0.25·0.5·3 |
Out of stock
—
|
| PCH1-3-0.35 | M6x0.35·1.3·3 |
Out of stock
—
|
| PCH1-3-0.5 | M6x0.5·1.5·3 |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
Specifications
| SPECIFICATIONS | |
| Adjusting angle allong X and Y axis | 8 deg |
| Rotation angle along Z-axis for D-Compact series Pockels cells | 22 deg |
| Rotating angle along Z-axis for BBO Pockels cells | 12 deg |
Description
PCRH series mounting stage for Pockels cells of 25.4 mm of diameter.
