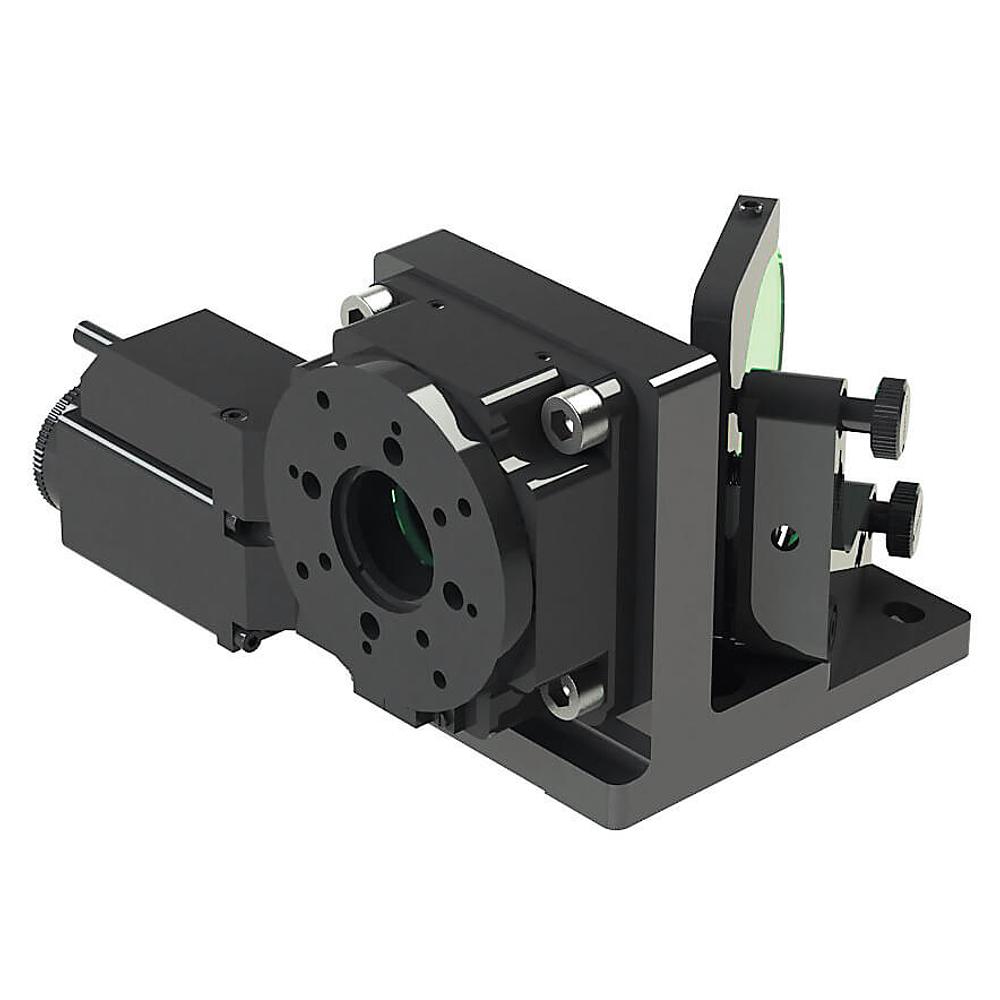

Motorized Variable Attenuator for Femtosecond and Nd:YAG Laser Pulses 990-0072M
• Divides laser beam into two beams of manually adjustable intensity ratio separated by 68° angle • Large dynamic range • Transmitted beam shift ~1 mm • High optical damage threshold This variable… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Wavelength · Damage threshold · Configuration · Group | |
|---|---|---|
| 990-0072-1030BM | 1010-1050 nm·>10 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-1030BM+CP | 1010-1050 nm·>10 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For Femtosecond Laser Pulses |
Out of stock
$2,904
|
| 990-0072-1030HBM | 1010-1050 nm·>100 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-1030HBM+CP | 1010-1050 nm·>100 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For High Power Laser Applications |
Out of stock
$3,121
|
| 990-0072-1030HM | 1030 nm·>100 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-1030HM+CP | 1030 nm·>100 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For High Power Laser Applications |
Out of stock
$3,005
|
| 990-0072-1030M | 1030 nm·>10 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-1030M+CP | 1030 nm·>10 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For Femtosecond Laser Pulses |
Out of stock
$2,800
|
| 990-0072-266HM | 266 nm·>100 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-266HM+CP | 266 nm·>100 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For High Power Laser Applications |
Out of stock
$3,075
|
| 990-0072-343HM | 343 nm·>100 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-343HM+CP | 343 nm·>100 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For High Power Laser Applications |
Out of stock
$3,011
|
| 990-0072-343M | 343 nm·>10 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-343M+CP | 343 nm·>10 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For Femtosecond Laser Pulses |
Out of stock
$2,798
|
| 990-0072-400HM | 400 nm·>100 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-400HM+CP | 400 nm·>100 mJ/cm², 50 fs @ 800 nm·with controller & power supply |
Out of stock
—
|
| 990-0072-400M | 400 nm·>10 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-400M+CP | 400 nm·>10 mJ/cm², 50 fs @ 800 nm·with controller & power supply |
Out of stock
—
|
| 990-0072-515HM | 515 nm·>100 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-515HM+CP | 515 nm·>100 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For High Power Laser Applications |
Out of stock
$2,977
|
| 990-0072-515M | 515 nm·>10 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-515M+CP | 515 nm·>10 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For Femtosecond Laser Pulses |
Out of stock
$2,763
|
| 990-0072-800BM | 780-820 nm·>10 mJ/cm², 50 fs @ 800 nm·without controller & power supply·For Femtosecond Laser Pulses |
Out of stock
$1,985
|
| 990-0072-800BM+CP | 780-820 nm·>10 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For Femtosecond Laser Pulses |
Out of stock
$2,892
|
| 990-0072-800HBM | 780-820 nm·>100 mJ/cm², 50 fs @ 800 nm·without controller & power supply·For High Power Laser Applications |
Out of stock
$2,198
|
| 990-0072-800HBM+CP | 780-820 nm·>100 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For High Power Laser Applications |
Out of stock
$3,109
|
| 990-0072-800HM | 800 nm·>100 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-800HM+CP | 800 nm·>100 mJ/cm², 50 fs @ 800 nm·with controller & power supply·For High Power Laser Applications |
Out of stock
$2,994
|
| 990-0072-800M | 800 nm·>10 mJ/cm², 50 fs @ 800 nm·without controller & power supply |
Out of stock
—
|
| 990-0072-800M+CP | 800 nm·>10 mJ/cm², 50 fs @ 800 nm·with controller & power supply |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
For Femtosecond Applications
| Aperture diameter | 22 mm |
| Damage threshold / for high power laser applications: | >10 mJ / cm², 50 fs pulse at 800 nm, typical / >100 mJ / cm², 50 fs pulse at 800 nm, typical |
| Time dispersion | t<4 fs for 100 fs Ti:Sapphire laser pulses |
| Polarization Contrast | >1:200 |
For Nd:YAG Laser Applications
| Aperture diameter | 22 mm |
| Damage threshold | >5 J / cm² pulsed at 1064 nm, typical |
| Polarization Contrast | >1:200 |
| Rotation resolution: in full step mode / in 1 / 8 step mode | 0.6 arcmin / 4.5 arcsec |
| Max. rotation speed | 50 deg / s |
| Controller | 980-1045 |
| Power supply | PS12-3-4 |
| Motorized Variable Attenuator - 3D files |
Description
- Divides laser beam into two beams of manually adjustable intensity ratio separated by 68° angle
- Large dynamic range
- Transmitted beam shift ~1 mm
- High optical damage threshold
This variable attenuator/beamsplitter consists of UV FS Thin Film Brewster Type Polarizer diameter 50.8 mm, which reflect s-polarized light while transmitting p-polarized light, that is housed into Beamsplitter Mount 840-0056-12 and a quartz Zero Order (optically contacted) Half Waveplate diameter 25.4 mm (for femtosecond applications) or Zero-Order Air-Spaced Half Waveplate (for high power applications) housed in rotating Polarizer Holder 840-0190-01, placed in the incident linearly polarized laser beam.
The intensity ratio of those two separated and different polarized beams may be continuously varied without alteration of other beam parameters by rotating the waveplate. The intensity of either exit beam, or their intensity ratio, can be controlled over a wide dynamic range. P-polarization could be selected for maximum transmission, or high-purity s-polarization could be reflected when maximum attenuation of the transmitted beam takes place.
840-0056-12 Kinematic Mount allows to adjust angle of incidence (AOI) of the thin film Brewster type polarizers by ±4.5° and to get the maximum extinction contrast. The mounts are on rods, rod holders and movable base 820-0090.
The optical axis height from the table top can be adjusten in the range of 78-88 mm. Other height can be offered as custom changing the standard rods and rod holders into higher.
