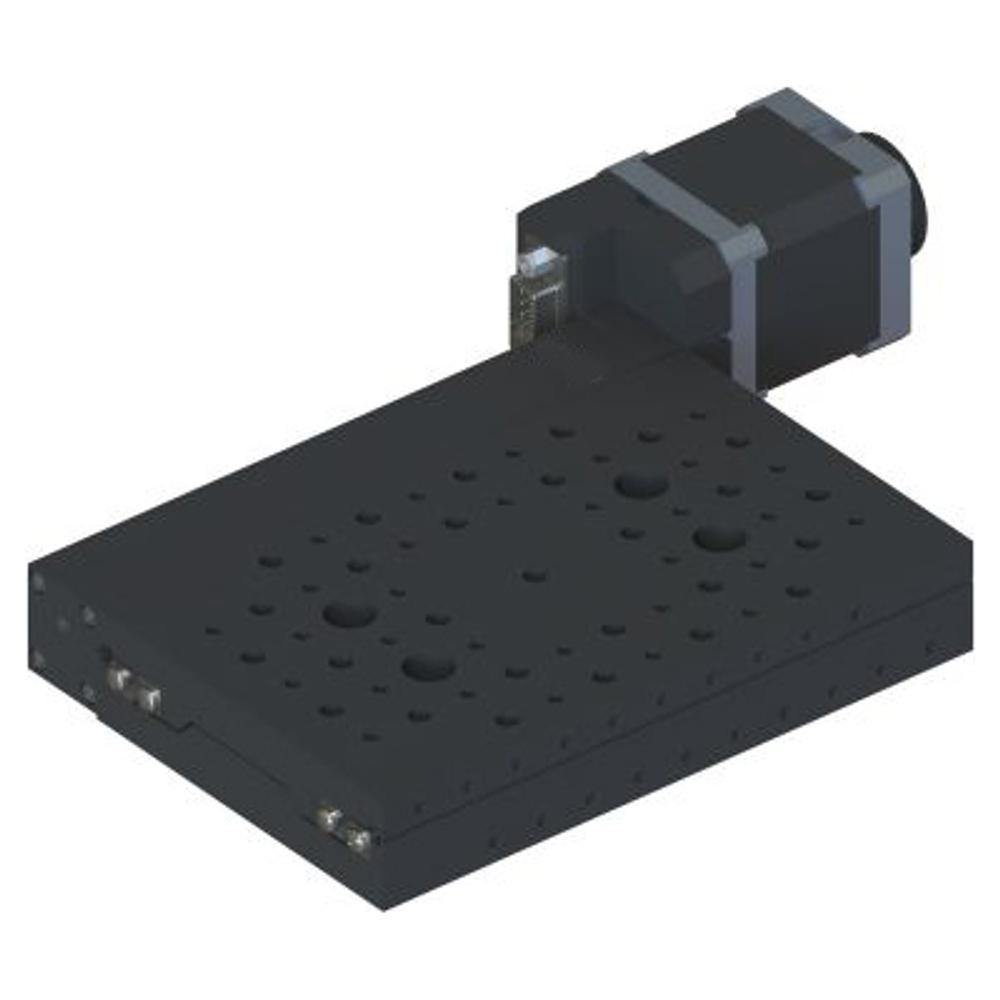

Motorized Translation Stages 960-0070-03
960-0070-03 models are made with solid platform. 960-0070-03BS1, unlike the 960-0070-03LS, is designed for high-speed movement. Used ball bearing lead screw makes movement fast and smooth.
Order
| SKU | Product Type | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|
| 960-0070-03LS | Motorized Translation Stage | 25 mm | X | 30 kg |
Out of stock
—
|
Specifications
| Product Type | Motorized Translation Stage |
| Travel Range | 25 mm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 30 kg |
| Load Capacity Vertical | 7 kg |
| Maximum Travel Speed | 6 mm/s |
| Weight | 0.8 kg |
| Cable Length, m | 1.6 m |
| Mounting Thread | M6, M4 |
| Width | 92 mm |
| Length | 171 mm |
| Height | 36.5 mm |
| Travel Resolution | 1.25 µm |
| Lead Screw Pitch | 0.25 mm |
Description
960-0070-03 models are made with solid platform. 960-0070-03BS1, unlike the 960-0070-03LS, is designed for high-speed movement. Used ball bearing lead screw makes movement fast and smooth.
