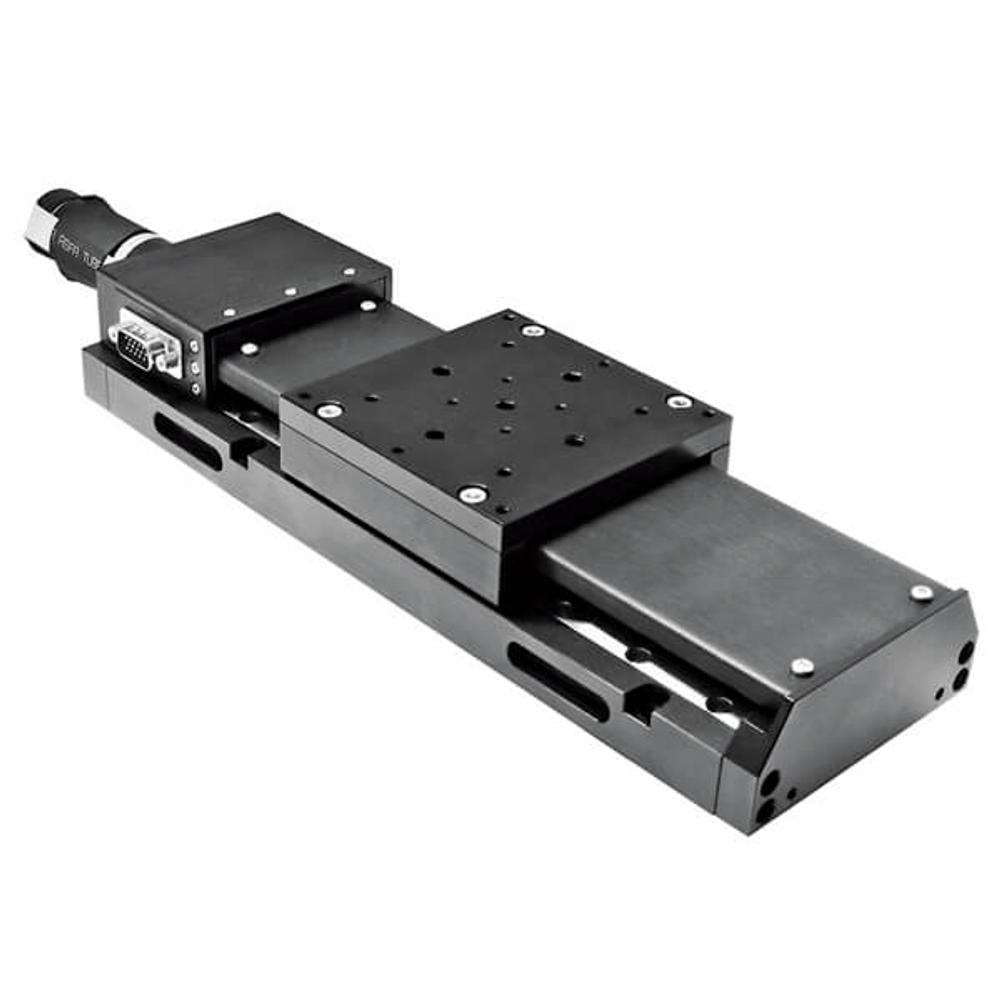

Motorized Translation Stage with DC motor 961-0095
• Compact design • Travel range 100 mm • Lead screw pitch 0.5 mm • Resolution 0.028 µm • 3 Axis Motorized Translation-Rotation System is available
Listed in
Order
| SKU | Description | |
|---|---|---|
| 960-0095 | Motorized Translation Stage with stepper motor 4247 |
Out of stock
$2,073
|
| 960-0095SM | Motorized Translation Stage with SM system |
Out of stock
$4,241
|
| 961-0095 | Motorized Translation Stage with DC Motor DCE RE25 |
Out of stock
$2,526
|
Specifications
| Travel range | 100 mm |
| Lead screw pitch | 0.5 mm |
| Minimal incremental pitch | 0.02 µm |
| Resolution | 0.028 µm |
| Max. speed | 13 mm / s |
| Load capacity / Horizontal / Vertical | 30 kg / 5 kg |
| Motor connector | HDB15(M) |
| DC motor | DCE RE25 |
| Weight, kg | 2.2 kg |
| Mechanical end limit switches | 2, pushed is closed |
SPECIFICATIONS
| Translation xy | 100x100 mm 960-0095SM |
| Rotation z | 360° / 960-0150SM |
| Load Capacity | 5 kg on rotation stage |
Description
- Compact design
- Travel range 100 mm
- Lead screw pitch 0.5 mm
- Resolution 0.028 µm
- 3 Axis Motorized Translation-Rotation System is available
