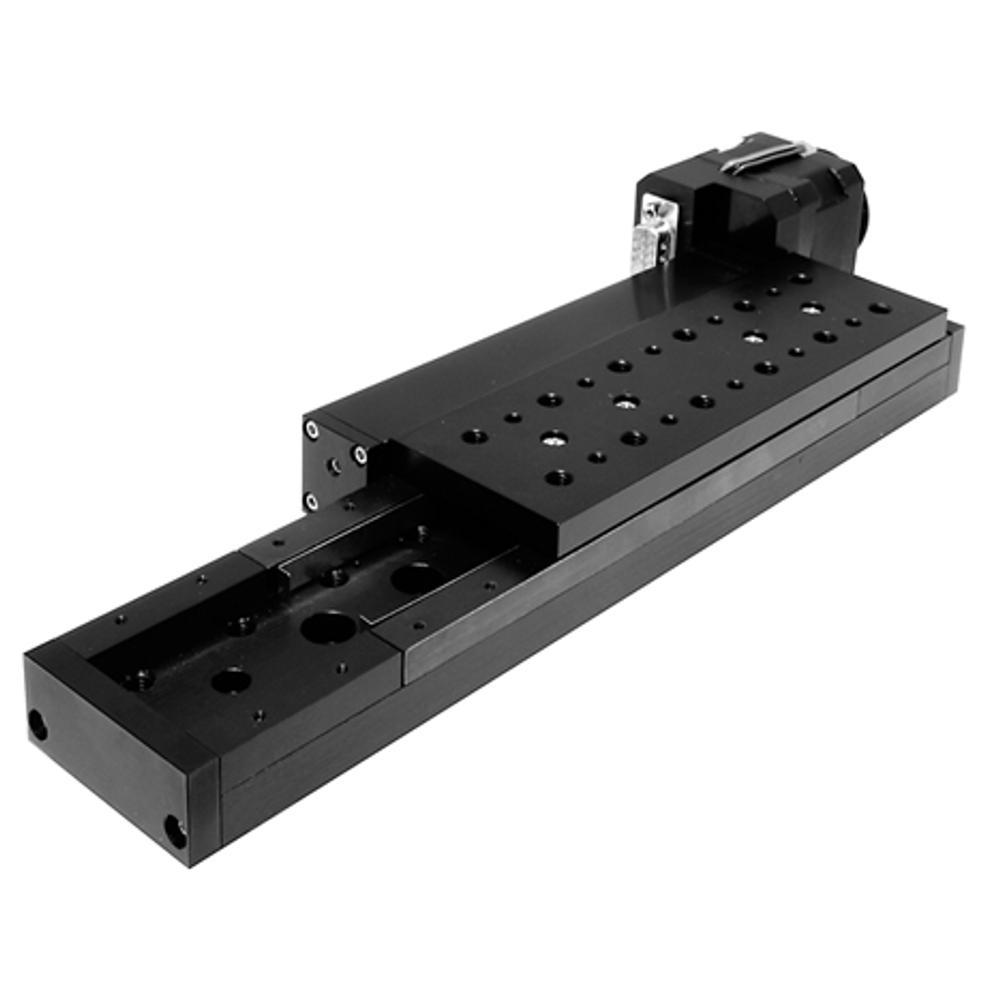

Motorized Translation Stage 960-0090
• Narrow • Compact design • Resolution 0.125 µm (1/8 step) • X-Y-Z configurations available • Motors of other types are available As a standard motorized translation and rotation stages are provided with a dial… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 960-0090 |
Out of stock
$1,290
|
|
| 960-0090-28 |
Out of stock
—
|
|
| 960-0090-XY |
Out of stock
$2,579
|
|
| 960-0090-XYZ |
Out of stock
$3,988
|
Specifications
| Model | 960-0090 | 960-0090-28 |
|---|---|---|
| Travel range | 100 mm | 100 mm |
| Lead screw pitch | 0.5 m | 0.5 m |
| Resolution:* / in full step mode / in 1 / 8 step | 1 µm / 0.125 µm | 1 µm / 0.125 µm |
| Reduction motor / screw | 2.5:1 | 2.5:1 |
| Max. speed* | 5 mm / s | 5 mm / s |
| Load capacity: / horizontal / vertical | 8 kg / 3 kg | 8 kg / 3 kg |
| Motor connector | DB9(M) | HDB15(M) |
| Stepper motor | 4247 | 28 |
| Assemblies: / X-Y / Z | directly / 810-0160 | directly / 810-0160 |
| Mechanical end limit switches | 2 | 2 |
| Switch polarity | pushed is closed | pushed is closed |
Description
- Narrow
- Compact design
- Resolution 0.125 µm (1/8 step)
- X-Y-Z configurations available
- Motors of other types are available
As a standard motorized translation and rotation stages are provided with a dial knob.
Encoder, Revolution sensor or Damper are available. More information.
