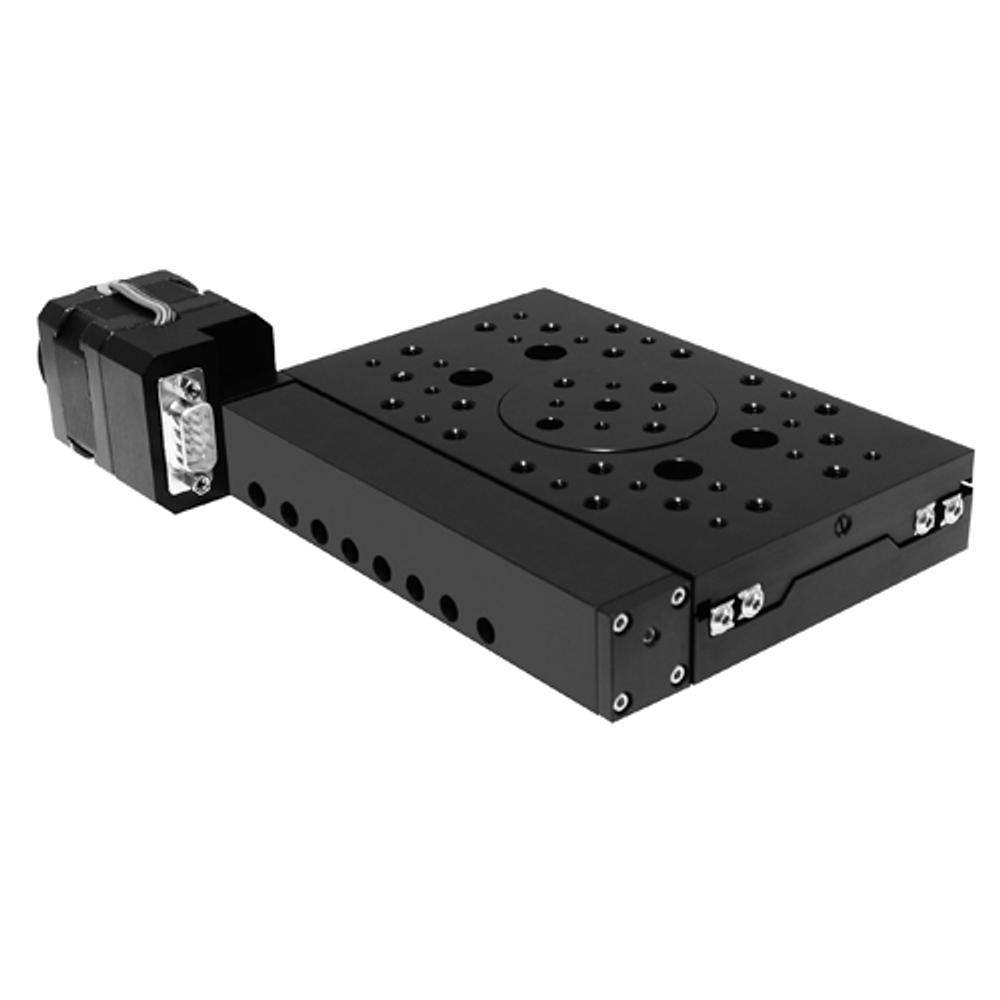

Motorized Translation Stage 960-0070-04
Motorized Translation Stage 960-0070-04 is designed on the basis of 860-0070-04 translator. The movement is produced by a step motor through the reducing gear and a lead-screw. There are 1000 steps per… Read more →
Order
| SKU | Product Type | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|
| 960-0070-04 | Motorized Translation Stage | 100 mm | X | 7 kg |
Out of stock
$1,739
|
| 960-0070-0428 | Motorized Translation Stage | 100 mm | X | 7 kg |
Out of stock
$1,739
|
| 960-0070-04C28 | Motorized Translation Stage | 100 mm | X | 7 kg |
Out of stock
$1,757
|
Specifications
| Product Type | Motorized Translation Stage |
| Travel Range | 100 mm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 7 kg |
| Load Capacity Vertical | 3 kg |
| Maximum Travel Speed | 5 mm/s |
| Weight | 1.4 kg |
| Cable Length, m | 1.6 m |
| Mounting Thread | M6, M4 |
| Travel Resolution | 1 µm |
| Lead Screw Pitch | 0.5 mm |
Description
Motorized Translation Stage 960-0070-04 is designed on the basis of 860-0070-04 translator. The movement is produced by a step motor through the reducing gear and a lead-screw. There are 1000 steps per millimeter.
Individual units are accompanied by indication of electrical parameters and connection schemes of the motors. The motors have 200 steps per revolution. To drive the motor, we offer a range of controllers. Controllers can drive the motor in 1, 1/2, 1/4, 1/8 step division mode.
There are microstepping controllers, available from other manufacturers, which divide a step into 10 parts. Mechanics of 960-0070-04 translation stage can be easily attached to any type of stepping motor or servo motor of your choice.
Motorized translation stage motor or controller is available upon request.
- Travel range: 960-0070-04: 100 mm; 960-0070-04C28: 100 mm; 960-0070-0428: 100 mm; 961-0070-04: 100 mm
- Resolution in full step / in 1 / 8 step: 960-0070-04: 1 µm / 0.125 µm; 960-0070-04C28: 1 µm / 0.125 µm; 960-0070-0428: 1 µm / 0.125 µm; 961-0070-04: - / -
- Lead screw pitch: 960-0070-04: 0.5 mm; 960-0070-04C28: 0.5 mm; 960-0070-0428: 0.5 mm; 961-0070-04: 0.5 mm
- Reduction motor / screw: 960-0070-04: 2.5:1; 960-0070-04C28: 2.5:1; 960-0070-0428: 2.5:1; 961-0070-04: 11:1
- Bi-direction repeatability: 960-0070-04: 2 µm; 960-0070-04C28: 2 µm; 960-0070-0428: 2 µm; 961-0070-04: 0.8 µm
- Minimal incremental motion: 960-0070-04: -; 960-0070-04C28: -; 960-0070-0428: -; 961-0070-04: 0.023 µm
- Maximum speed: 960-0070-04: 5 mm / s; 960-0070-04C28: 5 mm / s; 960-0070-0428: 5 mm / s; 961-0070-04: 5.5 mm / s
- Maximum load capacity: / horizontal / vertical: 960-0070-04: 7 kg / 3 kg; 960-0070-04C28: 7 kg / 3 kg; 960-0070-0428: 7 kg / 3 kg; 961-0070-04: 7 kg / 3 kg
- Limit switches: 960-0070-04: 2 pc mechanical; 960-0070-04C28: 2 pc mechanical; 960-0070-0428: 2 pc mechanical; 961-0070-04: 2 pc mechanical
- Cable: 960-0070-04: 1.6 m length; 960-0070-04C28: 1.6 m length; 960-0070-0428: 1.6 m length; 961-0070-04: 1.6 m length
- Motor connector: 960-0070-04: HD9(M); 960-0070-04C28: HD9(M); 960-0070-0428: HDB15(M); 961-0070-04: HDB15(M)
- Stepper motor: 960-0070-04: 4247; 960-0070-04C28: 28; 960-0070-0428: 28; 961-0070-04: -
- DC motor: 960-0070-04: -; 960-0070-04C28: -; 960-0070-0428: -; 961-0070-04: DCE RE25
- To stack 960-0070-04 stages in X-Y-Z coordinates you need a connecting plate 810-0270 and an angle bracket 810-0116.
