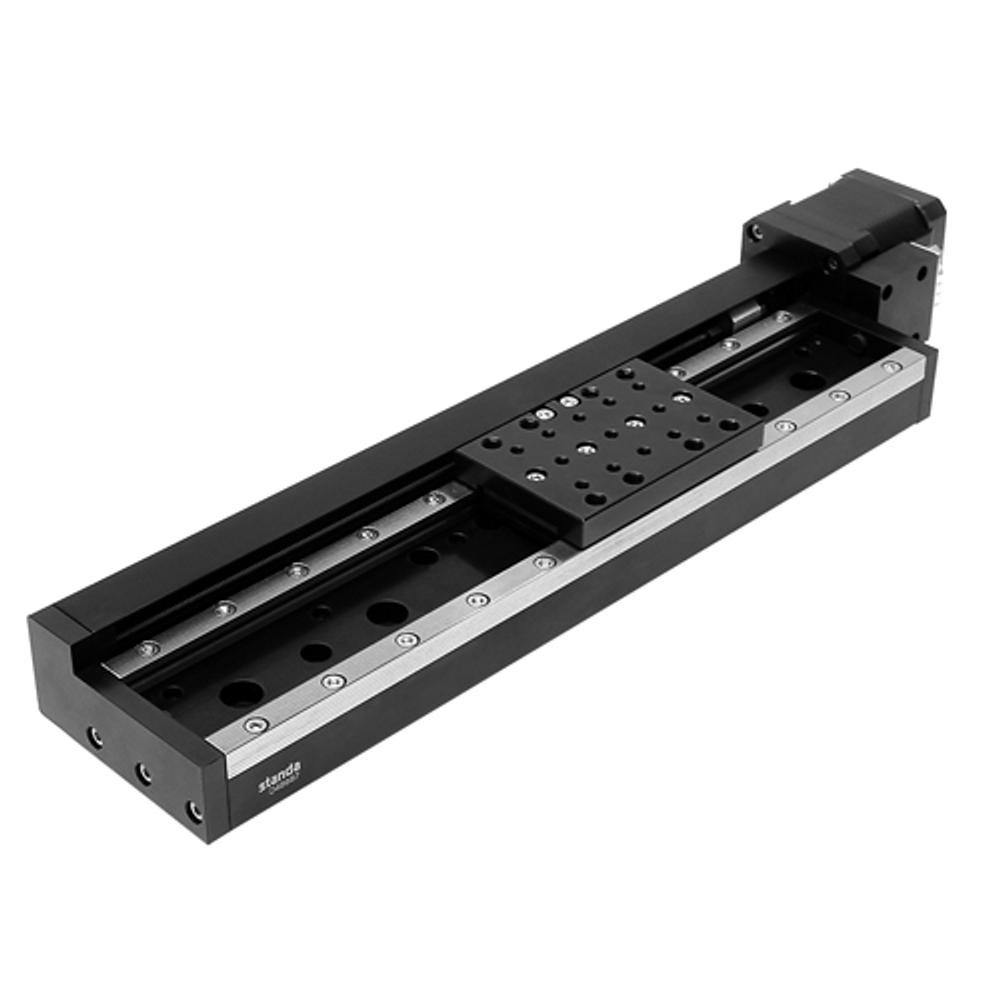

Motorized Translation Stage 960-0065
• Narrow • Compact design • High speed • Heavy load capacity • X-Y-Z configurations available • Angle Bracket 810-0160 is used to transform "horizontal" translators into vertical ones • Motors of other types are… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
Weight
Any
6
catalog variants — refine the spec to narrow it down.
| SKU | Description · Weight | |
|---|---|---|
| 960-0065-10BS1 | Travel range - 100 mm |
Out of stock
$1,671
|
| 960-0065-15BS1 | Travel range - 150 mm |
Out of stock
$2,190
|
| 960-0065-20BS1 | Travel range - 200 mm |
Out of stock
$2,784
|
| 960-0065Z-10BS1 | Travel range - 100 mm, for applications requiring vertical Z axis movement·1.1 kg |
Out of stock
—
|
| 960-0065Z-15BS1 | Travel range - 150 mm, for applications requiring vertical Z axis movement·1.4 kg |
Out of stock
—
|
| 960-0065Z-20BS1 | Travel range - 200 mm, for applications requiring vertical Z axis movement·1.65 kg |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Travel range | Travel range |
| 960-0065-10BS1 / 960-0065-15BS1 / 960-0065-20BS1 | 100 mm / 150 mm / 200 mm |
| Ball screw pitch | 1 mm |
| Resolution in full step* | 5 µm |
| Max. speed* | 20 mm / s |
| Load Capacity | Load Capacity |
| Horizontal / Vertical | 30 kg / 8 kg |
| Motor connector | DB9(M) |
| Stepper motor | 4247 |
| Assemblies: | Assemblies: |
| X-Y / Z | directly / 810-0160 |
Description
- Narrow
- Compact design
- High speed
- Heavy load capacity
- X-Y-Z configurations available
- Angle Bracket 810-0160 is used to transform "horizontal" translators into vertical ones
- Motors of other types are available
For applications requiring vertical Z axis movement, we suggest using stages with brake mounted on motor, to prevent carrier sliding down when motor current is turned off.
Encoder or Revolution sensor are available on request. More information.
