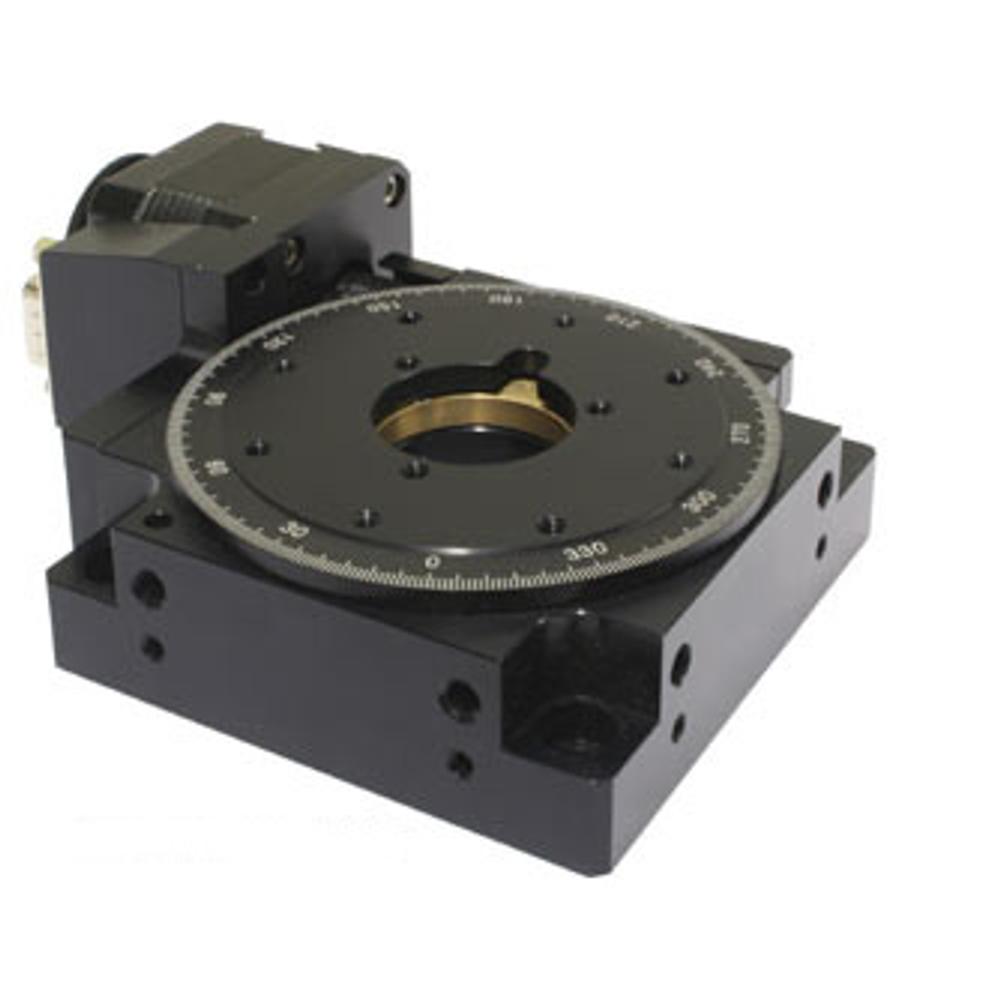

Motorized Rotation Stages 960-0150
• 360° rotation graduated in 1° • Three types of platform: - platform without big central hole (960-0150) - Ø23 mm clear aperture, M27x1 for 1" optics mounting (960-0150-23) - Ø30 mm clear aperture (960-0150-30) •… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 960-0150 | rotation stage 960-0150 without motor |
Out of stock
—
|
| 960-0150SM | Rotation stage 960-0150-30 with SM system |
Out of stock
—
|
| 962-0150-23 | Rotation stage 960-0150-23 with stepper motor 4247 (1.2A, 200 steps) |
Out of stock
—
|
| 962-0150-30 | Rotation stage 960-0150-30 with stepper motor 4247 (1.2A, 200 steps) |
Out of stock
—
|
| 964-0150-23 | Rotation stage 960-0150-23 with stepper motor 4233 (0.4A, 200 steps) |
Out of stock
—
|
| 964-0150-30 | Rotation stage 960-0150-30 with stepper motor 4233 (0.4A, 200 steps) |
Out of stock
—
|
| 968-0150 | Rotation stage 960-0150 with stepper motor 28 (0.67A, 200 steps) |
Out of stock
—
|
| 969-0150-23 | Rotation stage 960-0150-23 with stepper motor ZSS43 |
Out of stock
—
|
Specifications
| Rotation range | 360° |
| Resolution / in full step | 0.6 arcmin / (0.01 °) |
| Max. rotation speed* | 8 turn / min |
| Backlash | 0 µm |
| Wobble | 0.5 arcmin |
| Eccentricity | 10 µm |
| Load capacity: / horizontal / radial / torque | 10 kg / 2 kg / 1 Nm |
Description
- 360° rotation graduated in 1°
- Three types of platform:
- platform without big central hole (960-0150)
- Ø23 mm clear aperture, M27x1 for 1" optics mounting (960-0150-23)
- Ø30 mm clear aperture (960-0150-30)
- Resolution 4.5 arcsec in 1/8 step
- Encoders or Revolution sensors are available on request. More information
- Inch version available
