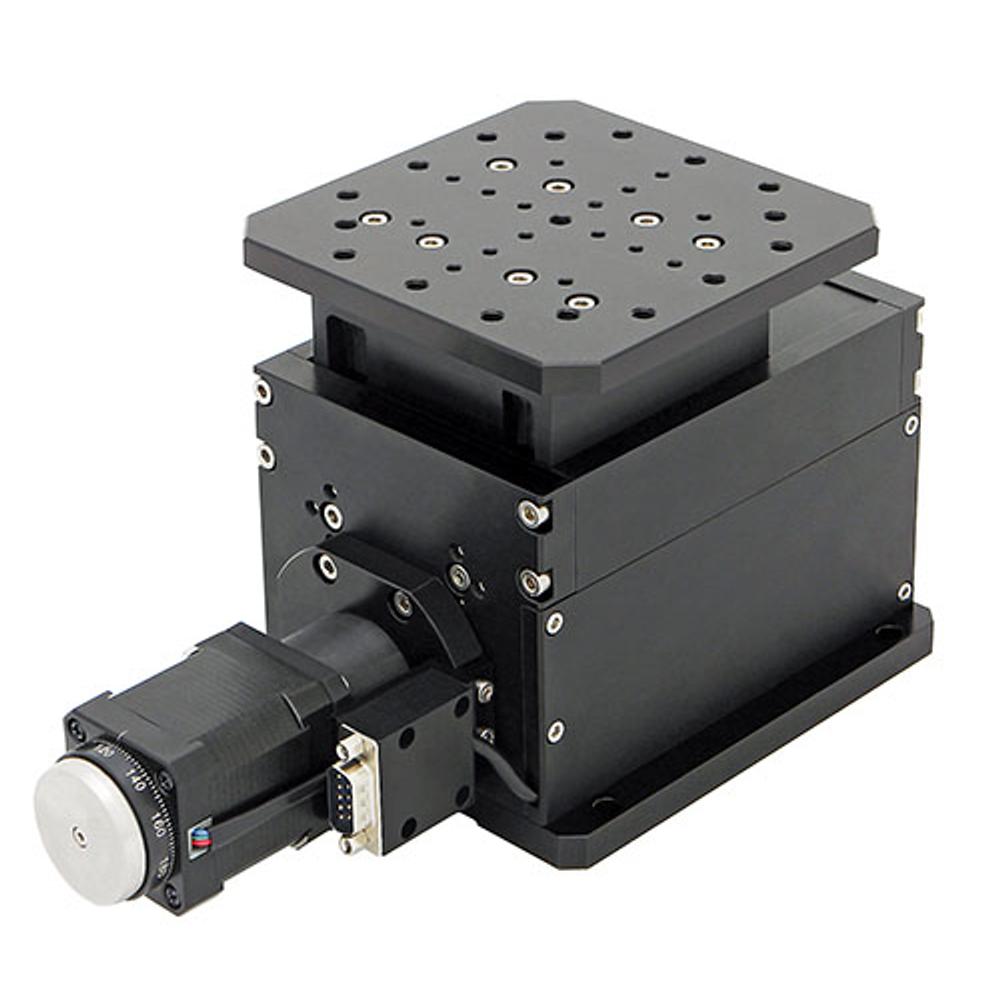

Motorized Precision Vertical Positioner 940-0218
Motorized Vertical Positioning Stage 940-0218 provides high-precision positioning and smooth travel for loads up to 10 kg. Together with high quality linear bearing guide the system ensures rigid movement across all… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 940-0218-01 |
Out of stock
—
|
|
| 940-0218-02 |
Out of stock
—
|
Specifications
| 940-0218-01 | |
| Travel range | 25.4 mm (1 inch) |
| Resolution in full step | 5 µm |
| Resolution in 1 / 256 step | 0.019 µm* |
| Encoder pulses per revolution | by request |
| Lead srew pitch | 1 mm |
| Wedge reduction rate | 1 : 1 |
| Unidirectional Repeatability | 1.5 µm |
| Bidirectional Repeatability | 3 µm |
| Accuracy | 10 µm |
| Lift parallelisim | 35 µm / (by request up to 15 µm) |
| Maximum speed | 20 mm / s |
| Maximum load capacity | 10 kg / (15 kg by request) |
| Stepper motor | 4247 |
| Brake | By request |
| Optocoupler end limit switches | 2 |
| Switch polarity | Pushed is open |
| Motor connector | DB9(M) |
| Material | Aluminium |
| Finish | Black anodized hard cover |
| Weight | 4.05 kg |
Description
Motorized Vertical Positioning Stage 940-0218 provides high-precision positioning and smooth travel for loads up to 10 kg. Together with high quality linear bearing guide the system ensures rigid movement across all range of travel and long lifetime.
- True vertical elevation of the platform
- Compact design
- Long life time
- Vacuum compatible version available under request
Based on specifics of application other stepper motors or servos can be used. Stepper motor can be equipped with linear encoder and brake.
