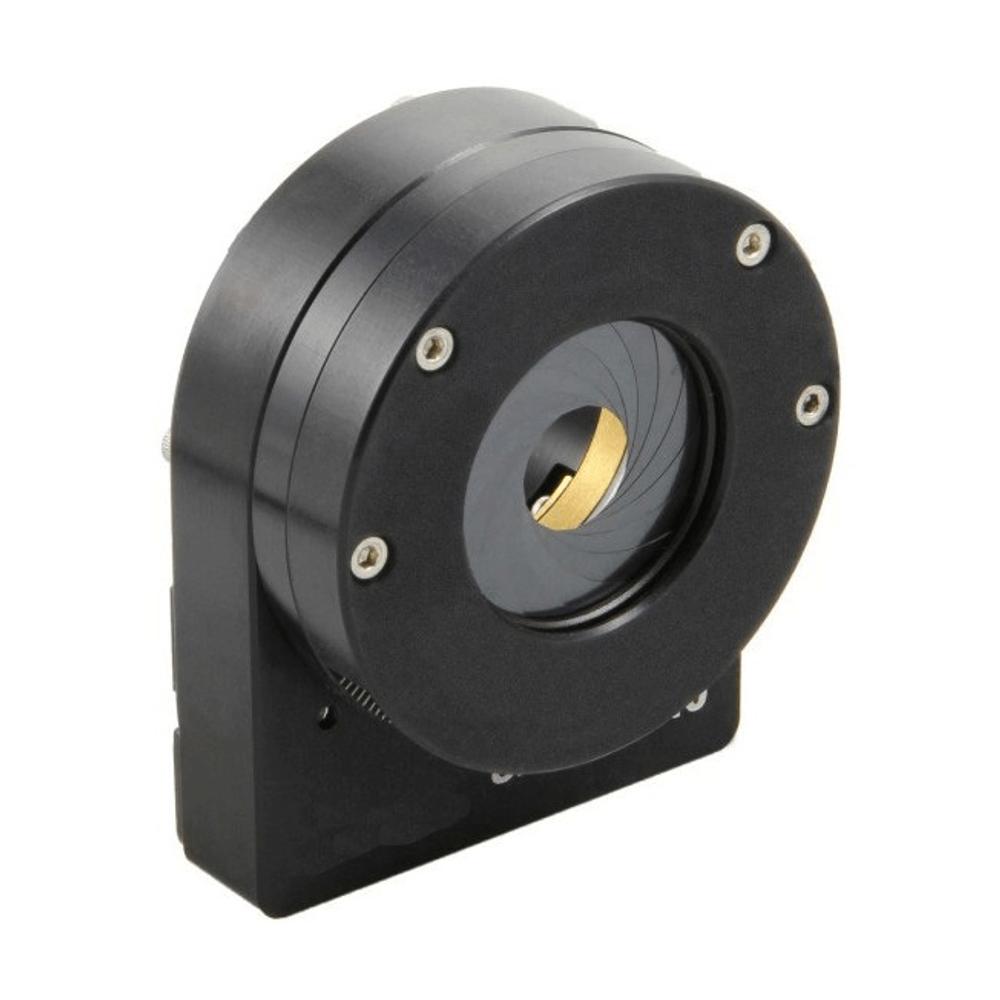

Motorized Iris Diaphragms 995 Series (Max. Aperture Range 5-27 mm)
995 Series Motorized Iris Diaphragms are available with various aperture ranges, with apertures from 5 mm to 98 mm. Irises with max. apertures from 5 mm to 27 mm are shown on this page. Irises with max. apertures up to… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Diaphragm Used · Max. Aperture, mm · Resolution, steps per mm · Min. Aperture, mm | |
|---|---|---|
| 995-1005-AR | 993-1005-AR·5·385·0.5 |
Out of stock
—
|
| 995-1005-N | 993-1005-N·5·385·0.5 |
Out of stock
—
|
| 995-1207-AR | 993-1207-AR·7·301·0.5 |
Out of stock
—
|
| 995-1207-N | 993-1207-N·7·301·0.5 |
Out of stock
—
|
| 995-1482-N | 993-1482-N·8.2·240·0.8 |
Out of stock
—
|
| 995-1488-N | 993-1488-N·8·244·1 |
Out of stock
—
|
| 995-1912-AR | 993-1912-AR·12·180·1 |
Out of stock
—
|
| 995-1912-H | 993-1912-H·12·180·1 |
Out of stock
—
|
| 995-1912-N | 993-1912-N·12·180·1 |
Out of stock
—
|
| 995-2214-AR | 993-2214-AR·14·161·1 |
Out of stock
—
|
| 995-2214-N | 993-2214-N·14·161·1 |
Out of stock
—
|
| 995-2415-H | 993-2415-H·15·141·1 |
Out of stock
—
|
| 995-2415-N | 993-2415-N·15·141·1 |
Out of stock
—
|
| 995-2818-AR | 993-2818-AR·18·118·1 |
Out of stock
—
|
| 995-3020-AR | 993-3020-AR·20·106·1.2 |
Out of stock
—
|
| 995-3020-H | 993-3020-H·20·106·1.2 |
Out of stock
—
|
| 995-3020-N | 993-3020-N·20·106·1.2 |
Out of stock
—
|
| 995-3322-N | 993-3322-N·22·102·1.5 |
Out of stock
—
|
| 995-3725-N | 993-3725-N·25·89·1.5 |
Out of stock
—
|
| 995-3922-H | 992-3922-H·22·385·0 |
Out of stock
—
|
| 995-3922-N | 992-3922-N·22·385·0 |
Out of stock
—
|
| 995-4027-AR | 993-4027-AR·26·79·1.5 |
Out of stock
—
|
| 995-4027-H | 993-4027-H·26·79·1.5 |
Out of stock
—
|
| 995-4027-N | 993-4027-N·26·79·1.5 |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Closing speed (min to max) | 1.2 seconds |
| Stepper motor / gear | 50:1 |
| Limit switch | 2 mechanical |
| Switch polarity | pushed is closed |
Classification
| Type | iris-diaphragm |
Description
995 Series Motorized Iris Diaphragms are available with various aperture ranges, with apertures from 5 mm to 98 mm. Irises with max. apertures from 5 mm to 27 mm are shown on this page. Irises with max. apertures up to 27 mm close from min. to max. in 1.2 seconds with resolution depending on aperture size (see table below). Zero aperture motorized Iris Diaphragms are available on request, max. aperture sizes from 12 mm to 40 mm.
