Laser Shelves 792
Laser Shelves are optional breadboards. They save space when installing a laser and other equipment beneath optical table tops. A shelf stays mechanically coupled to the table top. The shelves have a pattern of M6… Read more →
Order
| SKU | Product Type | Length | Height | |
|---|---|---|---|---|
| 792-0209 | Laser Shelf | 900 mm | 416 mm |
Out of stock
—
|
Specifications
| Product Type | Laser Shelf |
| Length | 900 mm |
| Height | 416 mm |
| Weight | 26 kg |
| Mounting Thread | M6 |
Description

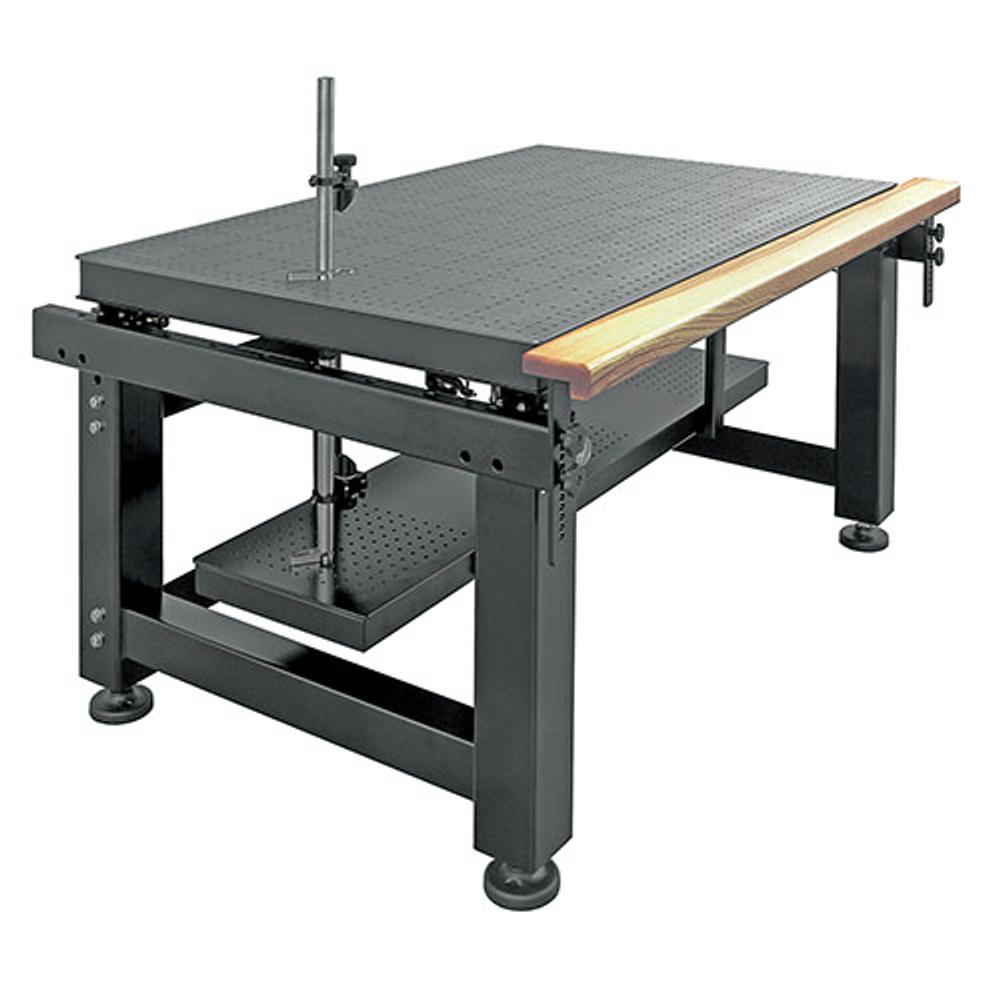

Laser Shelves are optional breadboards. They save space when installing a laser and other equipment beneath optical table tops. A shelf stays mechanically coupled to the table top. The shelves have a pattern of M6 holes.
Model 792-02 has M6 screws to attach directly to the bottom of a table top. So it can be used with any table top, with any support, or vibration isolation. Location of attachment (holes) can be standard, or specified by a customer.

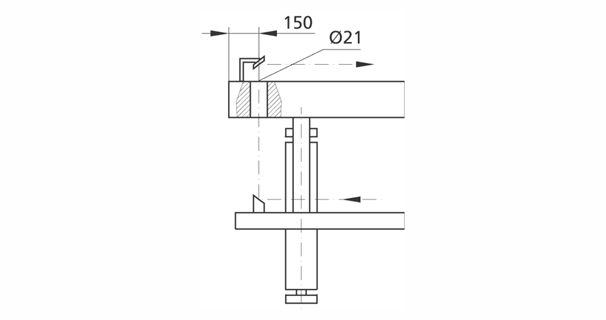

Laser Ports in a Table Top are used to let a laser beam or cables through. Standard location of a port is chosen for use with the Laser Shelves 792.
When ordering, append letter "H" to the code of a Honeycomb Table Top e.g. 720-1020-H.
