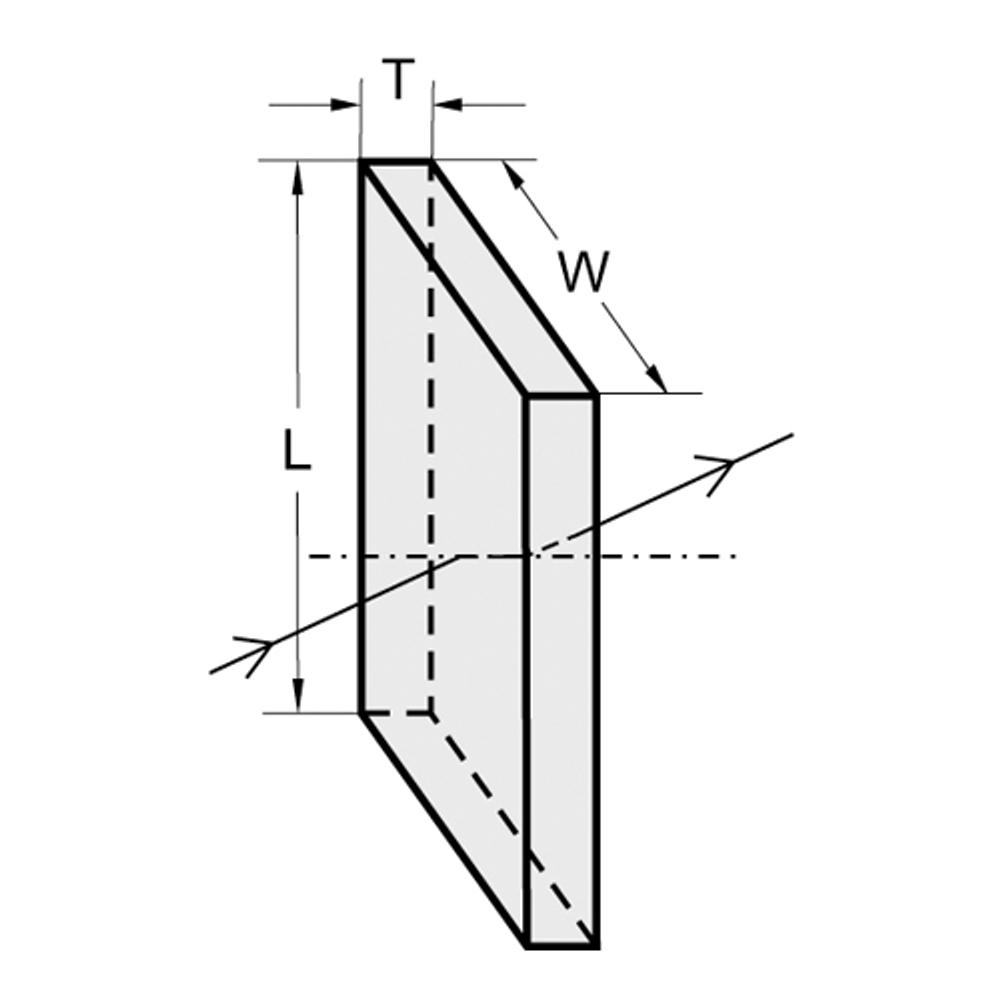

Flat Rectangular Windows
• Made of BK7 glass or UV grade fused silica • High transmittance, low wavefront distortion and low scatter • Durable and strong • 2 arcmin parallelism • Can be supplied with AR, HR or metallic coatings The… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Thickness | Material Type | Material | Coating S1W1 | Coating S2W1 | |
|---|---|---|---|---|---|---|
| 215-0122 | 2 mm | BK7 | BK7 | Uncoated | Uncoated |
25 in stock
Ships in: 2–5 calendar days
$14
|
| 215-0222 | 2 mm | BK7 | BK7 | Uncoated | Uncoated |
2 in stock
Ships in: 2–5 calendar days
$18
|
| 215-0232 | 2 mm | BK7 | BK7 | Uncoated | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$20
|
| 215-0252 | 2 mm | BK7 | BK7 | Uncoated | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$24
|
| 215-0552 | 2 mm | BK7 | BK7 | Uncoated | Uncoated |
8 in stock
Ships in: 2–5 calendar days
$34
|
| 215-0556 | 6.3 mm | BK7 | BK7 | Uncoated | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$40
|
| 215-1122 | 2 mm | FS | UVFS | Uncoated | Uncoated |
97 in stock
Ships in: 2–5 calendar days
$24
|
| 215-1222 | 2 mm | FS | UVFS | Uncoated | Uncoated |
25 in stock
Ships in: 2–5 calendar days
$30
|
| 215-1232 | 2 mm | FS | UVFS | Uncoated | Uncoated |
28 in stock
Ships in: 2–5 calendar days
$32
|
| 215-1252 | 2 mm | FS | UVFS | Uncoated | Uncoated |
3 in stock
Ships in: 2–5 calendar days
$39
|
| 215-1552 | 2 mm | FS | UVFS | Uncoated | Uncoated |
17 in stock
Ships in: 2–5 calendar days
$58
|
| 215-1556 | 6.3 mm | FS | UVFS | Uncoated | Uncoated |
11 in stock
Ships in: 2–5 calendar days
$64
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Thickness Tolerance Upper Limit | -0.2 mm |
| Thickness Tolerance Lower Limit | 0.2 mm |
Surface 1
| Surface quality, ISO | 60-40 |
| Power and Irregularity, fringes @633 nm | -(2) |
| Clear Aperture, % | 80 % - 100 % |
| Irregularity, fringes @633 nm | 2 fr |
Surface 1, Wavelength 1
| Coating | Uncoated |
Surface 2
| Surface quality, ISO | 60-40 |
| Power and Irregularity, fringes @633 nm | -(2) |
| Clear Aperture, % | 80 % - 100 % |
| Irregularity, fringes @633 nm | 2 fr |
Surface 2, Wavelength 1
| Coating | Uncoated |
Description
- Made of BK7 glass or UV grade fused silica
- High transmittance, low wavefront distortion and low scatter
- Durable and strong
- 2 arcmin parallelism
- Can be supplied with AR, HR or metallic coatings
The usage of flat windows allows optical radiation to pass from one environment to another, without mixing other components of these environments. Considerations in selecting windows may include transmission, scattering, wavefront distortion and resistance to certain environments. The ideal window allows an optical beam to pass from one medium to the next without changing the wavelength distribution of the beam, the transmitted wavefront or scatter any of the light out of the beam. We offer windows of three different materials, from which you may choose in accordance with the properties you need: BK7 and UV grade fused silica.
Windows can be supplied with a coating of your choice. If you would like to order a window with coating, please note the code of the window and the code of the coating in your request. For required coating please refer to the Coatings section of the Optical Components catalog.
