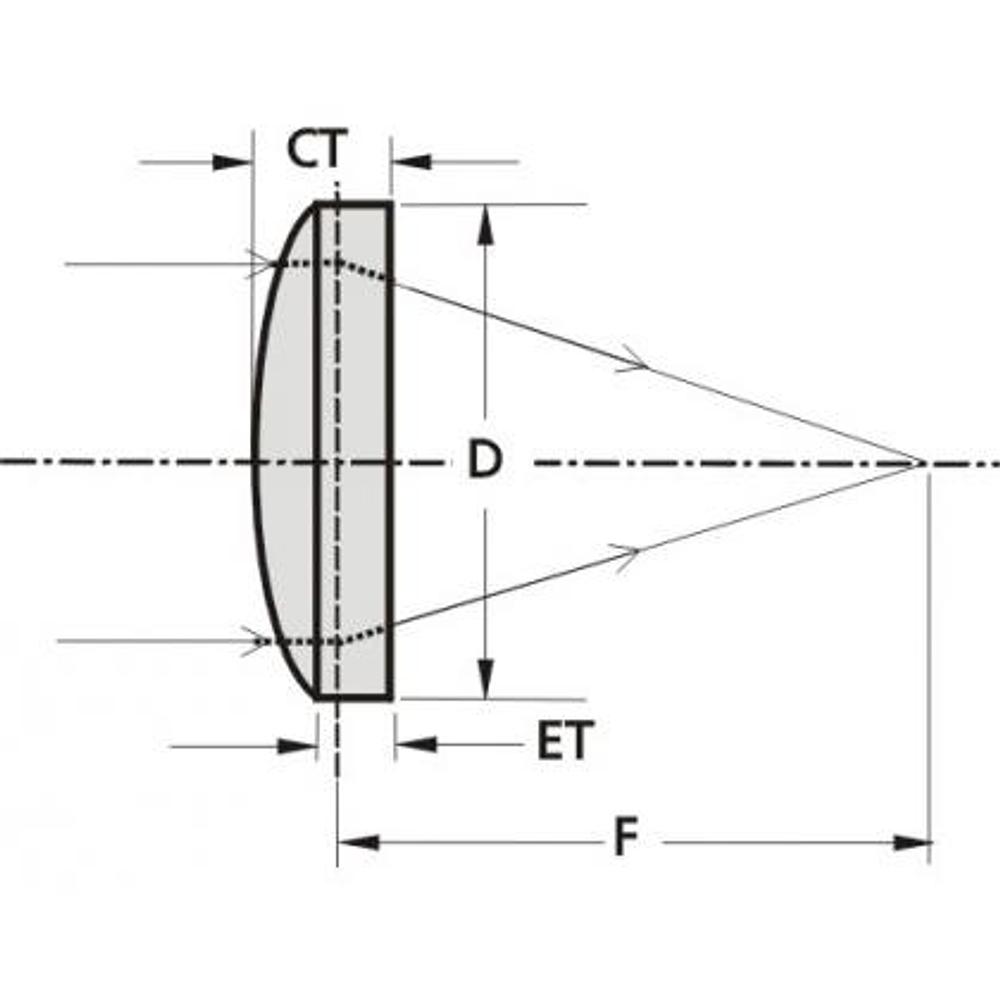

Femtoline Thin AR Lenses @ 380-420 nm

Femtoline Thin AR Lenses @ 380-420 nm

• Anti-Reflective coated AR/AR@380-420 nm • Very thin: edge thickness varies from 0,5~1,9 mm • Centre thickness varies from 1~3 mm • Plano-Convex or Plano-Concave type • Can be also supplied uncoated, or with… Read more →

From $114 Configure & order →

Volume discount

  • 5–9 units −10%
  • 10+ units −15%

Applied in your cart. Quantities of any variant of this product count together.

Listed in

Configure & order — pick a catalog variant or configure your own

Type Any
or
Diameter Any
Catalog band: 12.5–50.8 mm
Manufacturable: 12.5–50.8 mm
12.5 mm 50.8 mm
or mm
CT Any
Catalog band: 1.0–14.0 mm
Manufacturable: 1.0–14.0 mm
1.0 mm 14.0 mm
or mm
ET Any
Catalog band: 0.5–5.4 mm
Manufacturable: 0.5–5.4 mm
0.5 mm 5.4 mm
or mm
Focal Length @800nm Any
Catalog band: -500.0–6000.0 mm
Manufacturable: -500.0–6000.0 mm
-500.0 mm 6000.0 mm
or mm
Reflection Any
or
Material UVFS
144 catalog variants — refine the spec to narrow it down.
SKU Focal Length @800nm · ET · CT · Group · Diameter · Type · Reflection · Material
110-1106ET+AR400 30 mm·1.0 mm·2.5 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$114
110-1106ET+AR400HT 30 mm·1.0 mm·2.5 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.2%·UVFS
1 in stock Ships in: 2–5 calendar days
$198
110-1106MT+AR400 30 mm·1.0 mm·2.5 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1108ET+AR400 40 mm·0.7 mm·1.8 mm·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1108ET+AR400HT 40 mm·0.7 mm·1.8 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.2%·UVFS
1 in stock Ships in: 2–5 calendar days
$198
110-1108MT+AR400 40 mm·0.7 mm·1.8 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1109ET+AR400 50 mm·1.0 mm·1.9 mm·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1109ET+AR400HT 50 mm·1.0 mm·1.9 mm·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
110-1109MT+AR400 50 mm·1.0 mm·1.9 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1111ET+AR400 75 mm·1.2 mm·1.8 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$114
110-1111ET+AR400HT 75 mm·1.2 mm·1.8 mm·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
110-1111MT+AR400 75 mm·1.2 mm·1.8 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1115ET+AR400 100 mm·0.9 mm·1.5 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$114
110-1115ET+AR400HT 100 mm·0.9 mm·1.5 mm·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
110-1115MT+AR400 100 mm·0.9 mm·1.5 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1117ET+AR400 125 mm·1.0 mm·1.4 mm·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1117ET+AR400HT 125 mm·1.0 mm·1.4 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$198
110-1117MT+AR400 125 mm·1.0 mm·1.4 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1119ET+AR400 150 mm·1.2 mm·1.5 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$114
110-1119ET+AR400HT 150 mm·1.2 mm·1.5 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$198
110-1119MT+AR400 150 mm·1.2 mm·1.5 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1121ET+AR400 175 mm·1.0 mm·1.2 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$114
110-1121ET+AR400HT 175 mm·1.0 mm·1.2 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$198
110-1121MT+AR400 175 mm·1.0 mm·1.2 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1123ET+AR400 200 mm·1.0 mm·1.2 mm·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1123ET+AR400HT 200 mm·1.0 mm·1.2 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$198
110-1123MT+AR400 200 mm·1.0 mm·1.2 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1126ET+AR400 250 mm·1.0 mm·1.1 mm·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1126ET+AR400HT 250 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$198
110-1126MT+AR400 250 mm·1.0 mm·1.1 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1129ET+AR400 300 mm·1.0 mm·1.1 mm·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1129ET+AR400HT 300 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$198
110-1129MT+AR400 300 mm·1.0 mm·1.1 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1133ET+AR400 400 mm·1.0 mm·1.1 mm·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1133ET+AR400HT 400 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$198
110-1133MT+AR400 400 mm·1.0 mm·1.1 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1135ET+AR400 450 mm·1.0 mm·1.1 mm·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1135ET+AR400HT 450 mm·1.0 mm·1.1 mm·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
110-1135MT+AR400 450 mm·1.0 mm·1.1 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1137ET+AR400 500 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø 12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$114
110-1137ET+AR400HT 500 mm·1.0 mm·1.1 mm·12.7 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
110-1137MT+AR400 500 mm·1.0 mm·1.1 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
110-1205ET+AR400 50 mm·1.0 mm·4.9 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1205ET+AR400HT 50 mm·1.0 mm·4.9 mm·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$222
110-1209ET+AR400 75 mm·0.5 mm·3.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1209ET+AR400HT 75 mm·0.5 mm·3.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$222
110-1211ET+AR400 100 mm·0.7 mm·2.5 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1211ET+AR400HT 100 mm·0.7 mm·2.5 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$222
110-1216ET+AR400 125 mm·0.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1216ET+AR400HT 125 mm·0.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$222
110-1217ET+AR400 150 mm·0.8 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1217ET+AR400HT 150 mm·0.8 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$222
110-1219ET+AR400 200 mm·1.1 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1219ET+AR400HT 200 mm·1.1 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.2%·UVFS
1 in stock Ships in: 2–5 calendar days
$222
110-1223ET+AR400 300 mm·1.4 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1223ET+AR400HT 300 mm·1.4 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$222
110-1225ET+AR400 350 mm·1.5 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1225ET+AR400HT 350 mm·1.5 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.2%·UVFS
2 in stock Ships in: 2–5 calendar days
$222
110-1227ET+AR400 400 mm·1.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1227ET+AR400HT 400 mm·1.6 mm·2.0 mm·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$222
110-1231ET+AR400 450 mm·1.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1231ET+AR400HT 450 mm·1.6 mm·2.0 mm·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$222
110-1233ET+AR400 500 mm·1.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$138
110-1233ET+AR400HT 500 mm·1.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$222
110-1245ET+AR400 1000 mm·1.3 mm·1.5 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1245ET+AR400HT 1000 mm·1.3 mm·1.5 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.2%·UVFS
1 in stock Ships in: 2–5 calendar days
$222
110-1255ET+AR400 1500 mm·1.3 mm·1.4 mm·Thin Plano-Convex Lenses (ø 25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
110-1255ET+AR400HT 1500 mm·1.3 mm·1.4 mm·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$222
110-1265ET+AR400 2000 mm·1.3 mm·1.4 mm·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$138
110-1265ET+AR400HT 2000 mm·1.3 mm·1.4 mm·25.4 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$222
110-1505ET+AR400 75 mm·2.5 mm·14.0 mm·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$258
110-1505ET+AR400HT 75 mm·2.5 mm·14.0 mm·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$342
110-1509ET+AR400 100 mm·2.5 mm·10.3 mm·Thin Plano-Convex Lenses (ø 50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$258
110-1509ET+AR400HT 100 mm·2.5 mm·10.3 mm·Thin Plano-Convex Lenses (ø 50.8 mm)·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$342
110-1511ET+AR400 150 mm·2.5 mm·7.4 mm·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$258
110-1511ET+AR400HT 150 mm·2.5 mm·7.4 mm·Thin Plano-Convex Lenses (ø 50.8 mm)·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$342
110-1515ET+AR400 200 mm·2.5 mm·6.1 mm·Thin Plano-Convex Lenses (ø 50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$258
110-1515ET+AR400HT 200 mm·2.5 mm·6.1 mm·Thin Plano-Convex Lenses (ø 50.8 mm)·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$342
110-1519ET+AR400 300 mm·2.5 mm·4.9 mm·Thin Plano-Convex Lenses (ø 50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$258
110-1519ET+AR400HT 300 mm·2.5 mm·4.9 mm·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$342
110-1523ET+AR400 400 mm·2.5 mm·4.3 mm·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$258
110-1523ET+AR400HT 400 mm·2.5 mm·4.3 mm·Thin Plano-Convex Lenses (ø 50.8 mm)·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$342
110-1527ET+AR400 500 mm·2.5 mm·3.9 mm·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$258
110-1527ET+AR400HT 500 mm·2.5 mm·3.9 mm·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$342
110-1545ET+AR400 1000 mm·2.5 mm·3.2 mm·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$258
110-1545ET+AR400HT 1000 mm·2.5 mm·3.2 mm·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$342
110-1550ET+AR400 1500 mm·2.5 mm·3.0 mm·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$258
110-1550ET+AR400HT 1500 mm·2.5 mm·3.0 mm·Thin Plano-Convex Lenses (ø 50.8 mm)·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$342
110-1555ET+AR400 2000 mm·2.5 mm·2.9 mm·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$258
110-1555ET+AR400HT 2000 mm·2.5 mm·2.9 mm·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$342
110-1566ET+AR400 3000 mm·2.5 mm·2.7 mm·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$258
110-1566ET+AR400HT 3000 mm·2.5 mm·2.7 mm·Thin Plano-Convex Lenses (ø 50.8 mm)·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$342
110-1567ET+AR400 5000 mm·2.5 mm·2.6 mm·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$258
110-1567ET+AR400HT 5000 mm·2.5 mm·2.6 mm·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$342
110-1568ET+AR400 4000 mm·2.5 mm·2.7 mm·Thin Plano-Convex Lenses (ø 50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$258
110-1568ET+AR400HT 4000 mm·2.5 mm·2.7 mm·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$342
110-1570ET+AR400 6000 mm·2.5 mm·2.6 mm·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$258
110-1570ET+AR400HT 6000 mm·2.5 mm·2.6 mm·50.8 mm·pl/cx·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$342
112-1104ET+AR400 -20 mm·3.5 mm·1.0 mm·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1104ET+AR400HT -20 mm·3.5 mm·1.0 mm·12.7 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
112-1106ET+AR400 -30 mm·2.5 mm·1.0 mm·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1106ET+AR400HT -30 mm·2.5 mm·1.0 mm·12.7 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
112-1106MT+AR400 -30 mm·2.5 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1108ET+AR400 -40 mm·2.1 mm·1.0 mm·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1108ET+AR400HT -40 mm·2.1 mm·1.0 mm·12.7 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
112-1108MT+AR400 -40 mm·2.1 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1109ET+AR400 -50 mm·1.9 mm·1.0 mm·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1109ET+AR400HT -50 mm·1.9 mm·1.0 mm·12.7 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
112-1109MT+AR400 -50 mm·1.9 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1110ET+AR400 -60 mm·1.7 mm·1.0 mm·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1110MT+AR400 -60 mm·1.7 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1112ET+AR400 -75 mm·1.5 mm·1.0 mm·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1112ET+AR400HT -75 mm·1.5 mm·1.0 mm·12.7 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
112-1112MT+AR400 -75 mm·1.5 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1113ET+AR400 -80 mm·1.5 mm·1.0 mm·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1113ET+AR400HT -80 mm·1.5 mm·1.0 mm·12.7 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
112-1113MT+AR400 -80 mm·1.5 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1115ET+AR400 -100 mm·1.4 mm·1.0 mm·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1115ET+AR400HT -100 mm·1.4 mm·1.0 mm·12.7 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
112-1115MT+AR400 -100 mm·1.4 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1117ET+AR400 -125 mm·1.3 mm·1.0 mm·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1117ET+AR400HT -125 mm·1.3 mm·1.0 mm·12.7 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
112-1117MT+AR400 -125 mm·1.3 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1119ET+AR400 -150 mm·1.2 mm·1.0 mm·Thin Plano-Concave Lenses (ø 12.7 mm)·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$114
112-1119ET+AR400HT -150 mm·1.2 mm·1.0 mm·12.7 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$198
112-1119MT+AR400 -150 mm·1.2 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$114
112-1205ET+AR400 -50 mm·5.4 mm·1.5 mm·Thin Plano-Concave Lenses (ø 25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
112-1205ET+AR400HT -50 mm·5.4 mm·1.5 mm·25.4 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$222
112-1209ET+AR400 -75 mm·4.0 mm·1.5 mm·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$138
112-1209ET+AR400HT -75 mm·4.0 mm·1.5 mm·25.4 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$222
112-1211ET+AR400 -100 mm·3.3 mm·1.5 mm·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$138
112-1211ET+AR400HT -100 mm·3.3 mm·1.5 mm·Thin Plano-Concave Lenses (ø 25.4 mm)·25.4 mm·pl/cv·R<0.2%·UVFS
2 in stock Ships in: 2–5 calendar days
$222
112-1215ET+AR400 -125 mm·3.0 mm·1.5 mm·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$138
112-1215ET+AR400HT -125 mm·3.0 mm·1.5 mm·25.4 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$222
112-1217ET+AR400 -150 mm·2.7 mm·1.5 mm·Thin Plano-Concave Lenses (ø 25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
112-1217ET+AR400HT -150 mm·2.7 mm·1.5 mm·25.4 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$222
112-1219ET+AR400 -200 mm·2.4 mm·1.5 mm·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$138
112-1219ET+AR400HT -200 mm·2.4 mm·1.5 mm·25.4 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 58–61 calendar days
$222
112-1221ET+AR400 -250 mm·2.3 mm·1.5 mm·Thin Plano-Concave Lenses (ø 25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$138
112-1221ET+AR400HT -250 mm·2.3 mm·1.5 mm·Thin Plano-Concave Lenses (ø 25.4 mm)·25.4 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$222
112-1223ET+AR400 -300 mm·2.1 mm·1.5 mm·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$138
112-1223ET+AR400HT -300 mm·2.1 mm·1.5 mm·Thin Plano-Concave Lenses (ø 25.4 mm)·25.4 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$222
112-1233ET+AR400 -500 mm·1.9 mm·1.5 mm·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 58–61 calendar days
$138
112-1233ET+AR400HT -500 mm·1.9 mm·1.5 mm·Thin Plano-Concave Lenses (ø 25.4 mm)·25.4 mm·pl/cv·R<0.2%·UVFS
Out of stock Ships in: 62–65 calendar days
$222

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Material UVFS
Surface quality 40-20 scratch & dig (MIL-PRF-13830B)
Clear aperture 90% of the diameter
Diameter tolerance +0.00, -0.12 mm
Thickness tolerance ±0.2 mm
Surface irregularity λ / 8 @ 633 nm
Concentricity 3 arcmin
Paraxial focal length ±2% @ 800 nm
Technology Electron beam multilayer dielectric
Adhesion and Durability Per MIL-C-675A. Insoluble in lab solvents
Clear Aperture Exceeds central 85% of diameter
Damage Threshold 100 mJ / cm², 50 fsec pulse, 100 Hz
Coated Surface Flatness λ / 10 at 633 nm over clear aperture
Angle of incidence 0°

Classification

Line femtoline
Type thin

Description

  • Anti-Reflective coated AR/AR@380-420 nm
  • Very thin: edge thickness varies from 0,5~1,9 mm
  • Centre thickness varies from 1~3 mm
  • Plano-Convex or Plano-Concave type
  • Can be also supplied uncoated, or with different AR coatings

Femtoline thin lenses with anti-reflection coating at 380-420 nm range. Femtoline thin lenses are designed for applications with femtosecond Ti:Sapphire laser pulses. Presented lenses ensure low Group Delay Dispersion of broadband femtosecond Ti:Sapphire laser pulses.

Downloads

PDF
EKSMA_Optics_Thin_Lenses_7_.pdf PDF · 90.1 KB

Related products — often paired with this product
