Femtoline Laser Rear Mirrors @ 1030 nm
• Coated @ 1030±30 nm • Laser damage threshold: >100 mJ/cm², 50 fsec pulse, 800 nm typical • Manufactured from UVFS or BK7 • 25,4 or 50,8 mm sizes available High reflectivity (R>99.7%) dielectric coatings with high… Read more →
Volume discount
- 5–9 units −10%
- 10+ units −15%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
Material
Any
or
Size
Any
or
Substrate
Any
or
Radius
Any
or
Wavelength
1030±30 nm
69
catalog variants — refine the spec to narrow it down.
| SKU | Radius · Substrate · Material · Size · Group · Wavelength | |
|---|---|---|
| 012-8005 | -50 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 012-8010 | -100 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 012-8015 | -150 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$132
|
| 012-8020 | -200 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 012-8025 | -250 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 012-8050 | -500 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 012-8100 | -1000 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 012-8200 | -2000 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 012-8250 | -2500 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$132
|
| 012-8400 | -4000 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$132
|
| 012-8500 | -5000 mm·Plano-concave·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 012-9010 | 100 mm·Plano-convex·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$137
|
| 012-9020 | 200 mm·Plano-convex·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$137
|
| 012-9050 | 500 mm·Plano-convex·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$137
|
| 012-9100 | 1000 mm·Plano-convex·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
2 in stock
Ships in: 2–5 calendar days
$137
|
| 012-9200 | 2000 mm·Plano-convex·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$137
|
| 012-9400 | 4000 mm·Plano-convex·BK7·ø25.4 x 6 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$137
|
| 015-8005 | -50 mm·Plano-concave·BK7·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$194
|
| 015-8010 | -100 mm·Plano-concave·BK7·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$194
|
| 015-8015 | -150 mm·Plano-concave·BK7·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$194
|
| 015-8020 | -200 mm·Plano-concave·BK7·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$194
|
| 015-8025 | -250 mm·Plano-concave·BK7·ø50.8 x 10 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$194
|
| 015-8050 | -500 mm·Plano-concave·BK7·ø50.8 x 10 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
2 in stock
Ships in: 2–5 calendar days
$194
|
| 015-8100 | -1000 mm·Plano-concave·BK7·ø50.8 x 10 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$194
|
| 015-8200 | -2000 mm·Plano-concave·BK7·ø50.8 x 10 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$194
|
| 015-8250 | -2500 mm·Plano-concave·BK7·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$194
|
| 015-8400 | -4000 mm·Plano-concave·BK7·ø50.8 x 10 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$194
|
| 015-8500 | -5000 mm·Plano-concave·BK7·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$194
|
| 015-9010 | 100 mm·Plano-convex·BK7·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$206
|
| 015-9020 | 200 mm·Plano-convex·BK7·ø50.8 x 10 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$206
|
| 015-9050 | 500 mm·Plano-convex·BK7·ø50.8 x 10 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$206
|
| 015-9100 | 1000 mm·Plano-convex·BK7·ø50.8 x 10 mm·BK7 Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$206
|
| 015-9200 | 2000 mm·Plano-convex·BK7·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$206
|
| 015-9400 | 4000 mm·Plano-convex·BK7·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$206
|
| 022-8005 | -50 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$159
|
| 022-8010 | -100 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$159
|
| 022-8015 | -150 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 022-8020 | -200 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
2 in stock
Ships in: 2–5 calendar days
$159
|
| 022-8025 | -250 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 022-8050 | -500 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
11 in stock
Ships in: 2–5 calendar days
$159
|
| 022-8100 | -1000 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 022-8200 | -2000 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
2 in stock
Ships in: 2–5 calendar days
$159
|
| 022-8250 | -2500 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 022-8400 | -4000 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 022-8500 | -5000 mm·Plano-concave·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 022-9010 | 100 mm·Plano-convex·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$164
|
| 022-9020 | 200 mm·Plano-convex·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
7 in stock
Ships in: 2–5 calendar days
$164
|
| 022-9050 | 500 mm·Plano-convex·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
12 in stock
Ships in: 2–5 calendar days
$164
|
| 022-9100 | 1000 mm·Plano-convex·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
11 in stock
Ships in: 2–5 calendar days
$164
|
| 022-9200 | 2000 mm·Plano-convex·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$164
|
| 022-9400 | 4000 mm·Plano-convex·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$164
|
| 025-8005 | -50 mm·Plano-concave·UVFS·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$278
|
| 025-8010 | -100 mm·Plano-concave·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$278
|
| 025-8015 | -150 mm·Plano-concave·UVFS·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$278
|
| 025-8020 | -200 mm·Plano-concave·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$278
|
| 025-8025 | -250 mm·Plano-concave·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$278
|
| 025-8050 | -500 mm·Plano-concave·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$278
|
| 025-8100 | -1000 mm·Plano-concave·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$278
|
| 025-8200 | -2000 mm·Plano-concave·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$278
|
| 025-8250 | -2500 mm·Plano-concave·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$278
|
| 025-8400 | -4000 mm·Plano-concave·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$278
|
| 025-8500 | -5000 mm·Plano-concave·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$278
|
| 025-9010 | 100 mm·Plano-convex·UVFS·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$292
|
| 025-9020 | 200 mm·Plano-convex·UVFS·ø50.8 x 10 mm·1030±30 nm |
Out of stock
Ships in: 58–61 calendar days
$292
|
| 025-9050 | 500 mm·Plano-convex·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$292
|
| 025-9100 | 1000 mm·Plano-convex·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$292
|
| 025-9200 | 2000 mm·Plano-convex·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
1 in stock
Ships in: 2–5 calendar days
$292
|
| 025-9400 | 4000 mm·Plano-convex·UVFS·ø50.8 x 10 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
Out of stock
Ships in: 62–65 calendar days
$292
|
| 042-1030-i0 | ∞·Plano-plano·UVFS·ø25.4 x 6 mm·UVFS Rear Mirrors at 1030 nm·1030±30 nm |
11 in stock
Ships in: 2–5 calendar days
$115
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Material | UV grade Fused Silica or BK7 glass |
| S1 Surface Irregularity | λ / 10 at 633 nm |
| S1 Surface Quality | 20-10 scratch & dig (MIL-PRF-13830B) |
| S2 Surface Quality | Commercial polish |
| Diameter Tolerance | +0.00 mm-0.12 mm |
| Thickness Tolerance | ±0.25 |
| Chamfer | 0.3 mm at 45° typical |
| Technology | Electron beam multilayer dielectric |
| Adhesion and Durability | Per MIL-C-675A. Insoluble in lab solvents |
| Clear Aperture | Exceeds central 85% of diameter |
| Angle of Incidence | 0-8° (normal) |

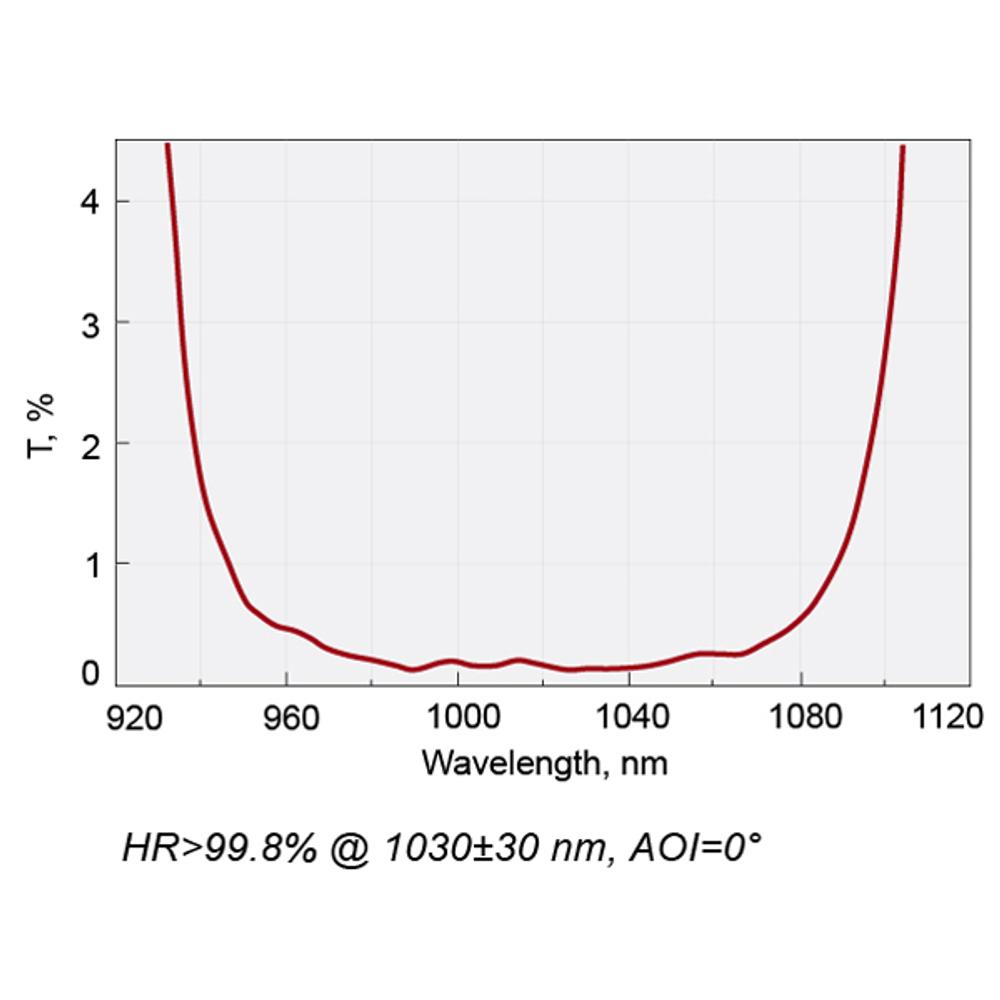

| Coating | Hard dielectric High reflection R>99.8% |
| Laser Damage Threshold | >100 mJ / cm², 50 fsec pulse, 800 nm typical |
Classification
| Line | femtoline |
Description
- Coated @ 1030±30 nm
- Laser damage threshold: >100 mJ/cm², 50 fsec pulse, 800 nm typical
- Manufactured from UVFS or BK7
- 25,4 or 50,8 mm sizes available
High reflectivity (R>99.7%) dielectric coatings with high laser damage threshold are applied on laser rear mirrors. UVFS substrates are recommended for high power laser applications. Back side can be AR coated to avoid back reflection from second surface on request.
