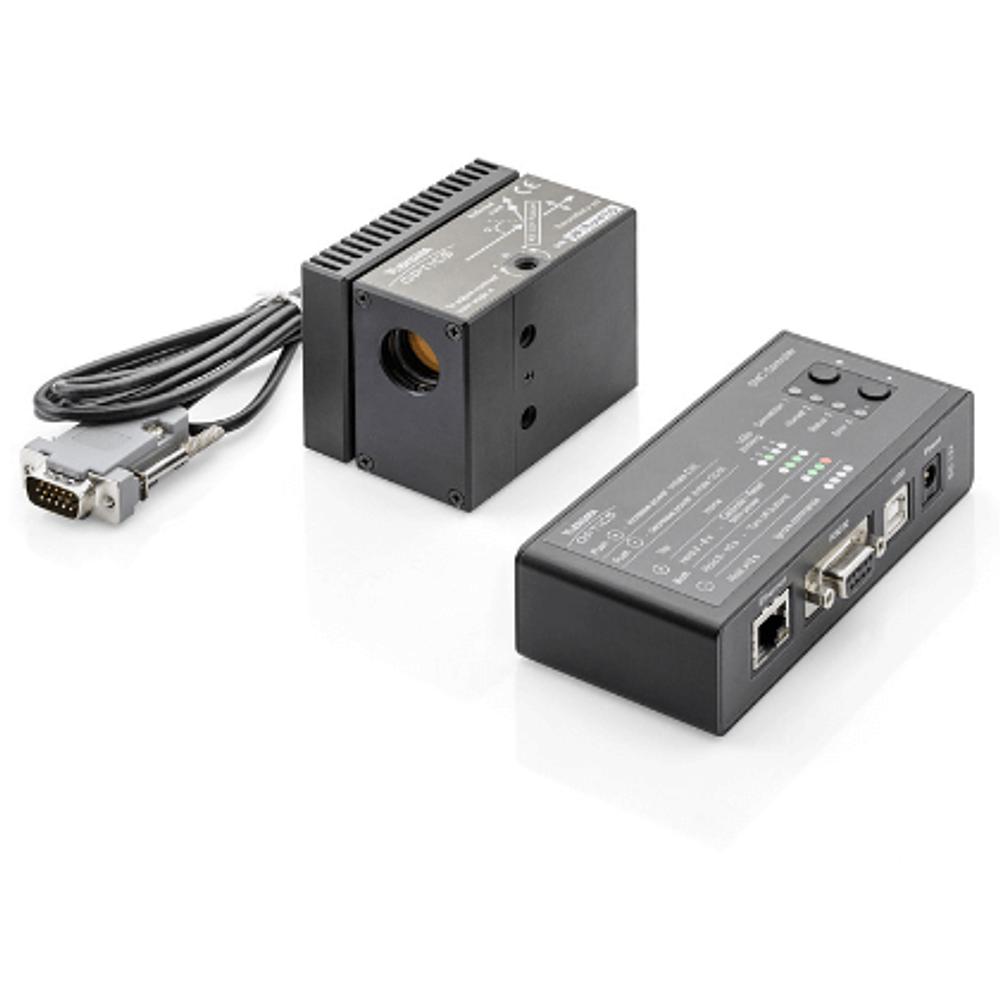

Compact Motorized Laser Power Attenuator
990-0075 series laser power attenuator is a compact motorized device for laser power control of linearly polarized beam. Its operation principle consists of changing laser beam polarization by rotation of zero-order… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Design Wavelength Range | Input Aperture Diameter | Angular Tilt Range | Beam Separation Angle | Controller and Power Supply Included | |
|---|---|---|---|---|---|---|---|
| 990-0075-1064M | Transmission type - Motorized | 1064 nm - 1064 nm | 18 mm | 4 Deg | 68 deg 24 min 0 sec | True |
2 in stock
Ships in: 2–5 calendar days
$1,704
|
| 990-0075-266M | Transmission type - Motorized | 266 nm - 266 nm | 18 mm | 4 Deg | 68 deg 24 min 0 sec | True |
13 in stock
Ships in: 2–5 calendar days
$1,860
|
| 990-0075-343M | Transmission type - Motorized | 343 nm - 343 nm | 18 mm | 4 Deg | 68 deg 24 min 0 sec | True |
1 in stock
Ships in: 2–5 calendar days
$1,860
|
| 990-0075-355M | Transmission type - Motorized | 355 nm - 355 nm | 18 mm | 4 Deg | 68 deg 24 min 0 sec | True |
6 in stock
Ships in: 2–5 calendar days
$1,860
|
| 990-0075-532M | Transmission type - Motorized | 532 nm - 532 nm | 18 mm | 4 Deg | 68 deg 24 min 0 sec | True |
9 in stock
Ships in: 2–5 calendar days
$1,704
|
| 990-0075C1 | RS232 Cable | — | — | — | — | — |
2 in stock
Ships in: 2–5 calendar days
$18
|
| 990-0075C5 | RS232 Cable | — | — | — | — | — |
3 in stock
Ships in: 2–5 calendar days
$24
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Description
990-0075 series laser power attenuator is a compact motorized device for laser power control of linearly polarized beam. Its operation principle consists of changing laser beam polarization by rotation of zero-order half-waveplate and then passing the beam through a fixed Brewster type thin film polarizer which transmits p-polarized and reflects s-polarized laser beam. The intensity ratio of s- and p- polarized beams can be continuously varied without alteration of other beam parameters by motorized rotation of the waveplate. The attenuation level is controlled by the software in 0.1 - 97% range.
The device combines unique mechanical design which ensures repeatability and high stability of performance. All optical components of the attenuator have high LIDT coatings (>10 J/cm² at 10 ns, 1064 nm) and provide stable and reliable performance even using device with high power lasers in industrial applications.
Standard compact motorized attenuators are designed for operation at the most common laser wavelengths: 1064 nm, 1020-1040 nm, 780-820 nm, 532 nm, 510-520 nm, 390-410 nm, 355 nm and 343 nm. Custom attenuators can be designed for other laser wavelengths.
A secondary laser beam with s-polarization can be rejected from the laser power attenuator unit to an external beam dump or utilized for the particular application. A standard compact external beam dump is optionally offered with this attenuator and is suitable for lasers with average power up to 6 W. This beam dump stops secondary s-polarized beam in the attenuator and allows to avoid any thermal effects or stress in the housing of the device.
Standard kit includes:
- Motorized laser power attenuator
- Controller
- Software
- Power suppy (DC 12 V)
- USB cable (1.5 m)
Available additional accessories:
- Attachable beam dump <6 W with protected coated window
- Separated beam dump <30 W
- RS232 cables: 1.8 m, 5 m, 10 m, 15 m
- DIN 35 rail adapter
