Broadband Laser Rear Mirrors @ 720-880 nm

Broadband Laser Rear Mirrors @ 720-880 nm

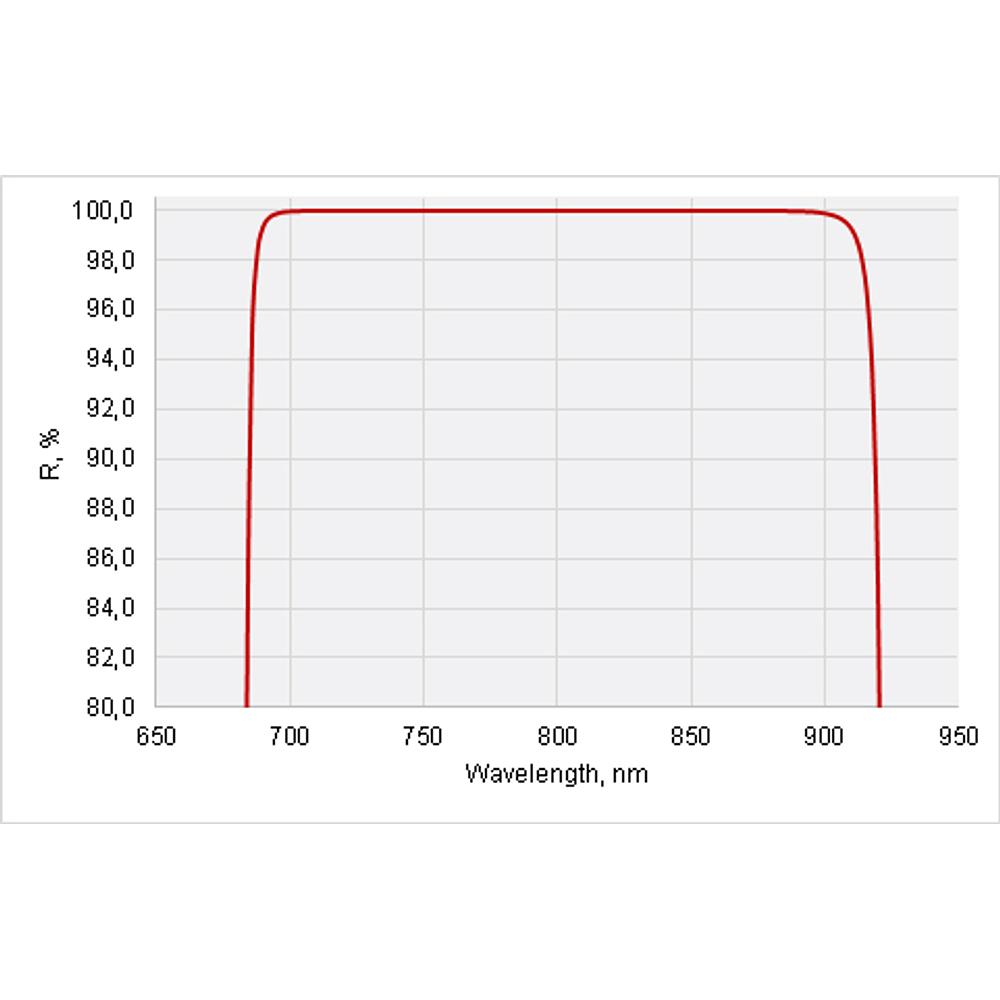

• HR coated @ 720-880 nm, R>99.0% • Laser damage threshold: >100 mJ/cm², 50 fsec pulse, 800 nm typical • Manufactured from UVFS or BK7 • 25.4 or 50.8 mm sizes available High reflectivity dielectric coatings with high… Read more →

From $145 Configure & order →

Volume discount

  • 5–9 units −10%
  • 10+ units −15%

Applied in your cart. Quantities of any variant of this product count together.

Listed in

Configure & order — pick a catalog variant or configure your own

Material Any
or
Size Any
or
Substrate Any
or
Radius Any
or
Wavelength 720-880 nm
84 catalog variants — refine the spec to narrow it down.
SKU Radius · Size · Substrate · Material · Group · Wavelength
062-8005B -50 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$170
062-8010B -100 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$170
062-8015B -150 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$170
062-8020B -200 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
3 in stock Ships in: 2–5 calendar days
$170
062-8025B -250 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$170
062-8050B -500 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$170
062-8100B -1000 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$170
062-8200B -2000 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$170
062-8250B -2500 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
4 in stock Ships in: 2–5 calendar days
$170
062-8300B -3000 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
2 in stock Ships in: 2–5 calendar days
$170
062-8400B -4000 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$170
062-8500B -5000 mm·ø25.4 x 6 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$170
062-9010B 100 mm·ø25.4 x 6 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$176
062-9020B 200 mm·ø25.4 x 6 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$176
062-9050B 500 mm·ø25.4 x 6 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$176
062-9060B 600 mm·ø25.4 x 6 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
2 in stock Ships in: 2–5 calendar days
$176
062-9100B 1000 mm·ø25.4 x 6 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
4 in stock Ships in: 2–5 calendar days
$176
062-9150B 1500 mm·ø25.4 x 6 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$176
062-9200B 2000 mm·ø25.4 x 6 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$176
062-9400B 4000 mm·ø25.4 x 6 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$176
065-8005B -50 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
2 in stock Ships in: 2–5 calendar days
$326
065-8010B -100 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$326
065-8015B -150 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$326
065-8020B -200 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$326
065-8025B -250 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
2 in stock Ships in: 2–5 calendar days
$326
065-8050B -500 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$326
065-8100B -1000 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$326
065-8200B -2000 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
2 in stock Ships in: 2–5 calendar days
$326
065-8250B -2500 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$326
065-8300B -3000 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$326
065-8400B -4000 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$326
065-8500B -5000 mm·ø50.8 x 10 mm·Plano-concave·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$326
065-9010B 100 mm·ø50.8 x 10 mm·Plano-convex·BK7·720-880 nm
Out of stock Ships in: 58–61 calendar days
$333
065-9020B 200 mm·ø50.8 x 10 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$333
065-9050B 500 mm·ø50.8 x 10 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$333
065-9060B 600 mm·ø50.8 x 10 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$333
065-9100B 1000 mm·ø50.8 x 10 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$333
065-9150B 1500 mm·ø50.8 x 10 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$333
065-9200B 2000 mm·ø50.8 x 10 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$333
065-9400B 4000 mm·ø50.8 x 10 mm·Plano-convex·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$333
072-7288-i0 ∞·ø25.4 x 6 mm·Plano-plano·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
13 in stock Ships in: 2–5 calendar days
$145
075-7288-i0 ∞·ø50.8 x 8 mm·Plano-plano·BK7·BK7 Rear Mirrors at 720-880 nm·720-880 nm
16 in stock Ships in: 2–5 calendar days
$305
082-7288-i0 ∞·ø25.4 x 6 mm·Plano-plano·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
17 in stock Ships in: 2–5 calendar days
$179
082-8005B -50 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$204
082-8010B -100 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
2 in stock Ships in: 2–5 calendar days
$204
082-8015B -150 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$204
082-8020B -200 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$204
082-8025B -250 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
2 in stock Ships in: 2–5 calendar days
$204
082-8050B -500 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$204
082-8100B -1000 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$204
082-8200B -2000 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
6 in stock Ships in: 2–5 calendar days
$204
082-8250B -2500 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$204
082-8300B -3000 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$204
082-8400B -4000 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
2 in stock Ships in: 2–5 calendar days
$204
082-8500B -5000 mm·ø25.4 x 6 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$204
082-9010B 100 mm·ø25.4 x 6 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$209
082-9020B 200 mm·ø25.4 x 6 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$209
082-9050B 500 mm·ø25.4 x 6 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$209
082-9060B 600 mm·ø25.4 x 6 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$209
082-9100B 1000 mm·ø25.4 x 6 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$209
082-9150B 1500 mm·ø25.4 x 6 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$209
082-9200B 2000 mm·ø25.4 x 6 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$209
082-9400B 4000 mm·ø25.4 x 6 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$209
085-7288-i0 ∞·ø50.8 x 8 mm·Plano-plano·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
5 in stock Ships in: 2–5 calendar days
$354
085-8005B -50 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$372
085-8010B -100 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$372
085-8015B -150 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$372
085-8020B -200 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$372
085-8025B -250 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$372
085-8050B -500 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$372
085-8100B -1000 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$372
085-8200B -2000 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$372
085-8250B -2500 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$372
085-8300B -3000 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$372
085-8400B -4000 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$372
085-8500B -5000 mm·ø50.8 x 10 mm·Plano-concave·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$372
085-9010B 100 mm·ø50.8 x 10 mm·Plano-convex·UVFS·720-880 nm
Out of stock Ships in: 58–61 calendar days
$379
085-9020B 200 mm·ø50.8 x 10 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$379
085-9050B 500 mm·ø50.8 x 10 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$379
085-9060B 600 mm·ø50.8 x 10 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$379
085-9100B 1000 mm·ø50.8 x 10 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$379
085-9150B 1500 mm·ø50.8 x 10 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
Out of stock Ships in: 62–65 calendar days
$379
085-9200B 2000 mm·ø50.8 x 10 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
1 in stock Ships in: 2–5 calendar days
$379
085-9400B 4000 mm·ø50.8 x 10 mm·Plano-convex·UVFS·UVFS Rear Mirrors at 720-880 nm·720-880 nm
4 in stock Ships in: 2–5 calendar days
$379

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.

Specifications

Material UV grade Fused Silica or BK7 glass
S1 Surface Irregularity λ / 10 at 633 nm
S1 Surface Quality 20-10 scratch & dig (MIL-PRF-13830B)
S2 Surface Quality Commercial polish
Diameter Tolerance +0.00 mm-0.12 mm
Thickness Tolerance ±0.25
Chamfer 0.3 mm at 45° typical

Coating

Technology Electron beam multilayer dielectric
Adhesion and Durability Per MIL-C-675A. Insoluble in lab solvents
Clear Aperture Exceeds central 85% of diameter
Angle of Incidence 0-8° (normal)
Coating Hard dielectric High reflection R>99.0%
Laser Damage Threshold >100 mJ / cm², 50 fsec pulse, 800 nm typical

Classification

Line femtoline

Description

  • HR coated @ 720-880 nm, R>99.0%
  • Laser damage threshold: >100 mJ/cm², 50 fsec pulse, 800 nm typical
  • Manufactured from UVFS or BK7
  • 25.4 or 50.8 mm sizes available

High reflectivity dielectric coatings with high laser damage threshold are applied on laser rear mirrors. UVFS substrates are recommended for high power laser applications. Back side can be AR coated to avoid back reflection from second surface on request.

Downloads

PDF
EKSMA_Optics_Femtoline_Laser_Rear_Mirrors_1_.pdf PDF · 91.7 KB

Related products — often paired with this product
