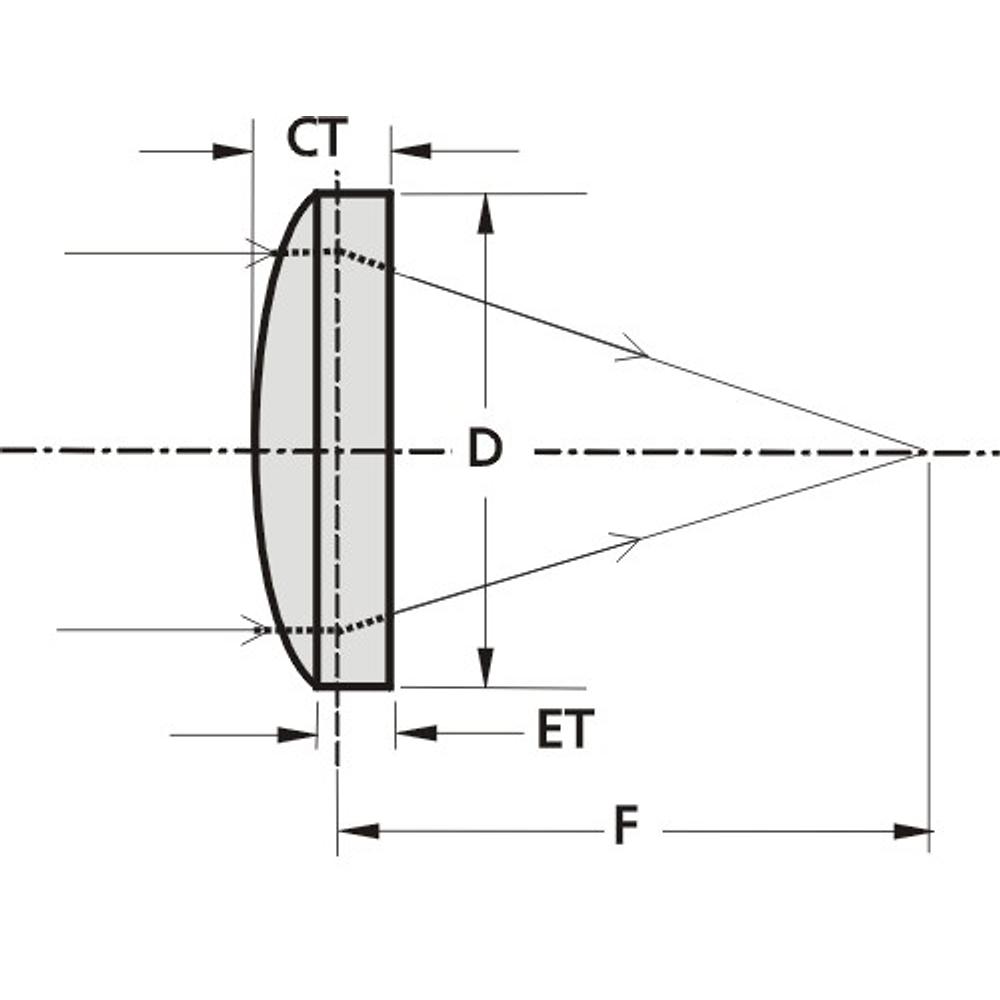

BK7 Plano-Convex Lenses
• Positive focal length • Converge incident light • Form both real and virtual images • Very close to the form minimizing spherical aberration for infinite conjugate applications These simplest form lenses have… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Diameter
12.7 mm - 76.2 mm · 5 values
Any
mm
mm
Center Thickness
2.1 mm - 12.7 mm · 32 values
Any
mm
mm
Focal Length
20 mm - 10000 mm · 42 values
Any
mm
mm
Surface 1, Wavelength 1
Coating
Any
Wavelength
350 nm - 1100 nm · 9 values
Any
nm
nm
Reflectivity, %
Any
%
%
140
catalog variants — refine the spec to narrow it down.
| SKU | Diameter | Center Thickness | Focal Length | Power and Irregularity, fringes @633 nm | Coating | Wavelength | Reflectivity, % | |
|---|---|---|---|---|---|---|---|---|
| 110-0104E | 12.7 mm | 4.5 mm | 20 mm | -(0.25) | Uncoated | — | — |
19 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0105E | 12.7 mm | 4 mm | 25 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$23
|
| 110-0106E | 12.7 mm | 3.5 mm | 30 mm | -(0.25) | Uncoated | — | — |
13 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0107E | 12.7 mm | 3 mm | 40 mm | -(0.25) | Uncoated | — | — |
35 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0109E | 12.7 mm | 3 mm | 50 mm | -(0.25) | Uncoated | — | — |
55 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0109E+AR1064 | 12.7 mm | 3 mm | 50 mm | -(0.25) | AR | 1064 nm | < 0.2 % |
1 in stock
Ships in: 2–5 calendar days
$53
|
| 110-0111E | 12.7 mm | 3 mm | 60 mm | -(0.25) | Uncoated | — | — |
2 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0115E | 12.7 mm | 3 mm | 75 mm | -(0.25) | Uncoated | — | — |
59 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0115E+AR1030HT | 12.7 mm | 3 mm | 75 mm | -(0.25) | AR | 1000 nm - 1060 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$144
|
| 110-0115E+AR532 | 12.7 mm | 3 mm | 75 mm | -(0.25) | AR | 532 nm | < 0.2 % |
Out of stock
Ships in: 58–61 calendar days
$53
|
| 110-0115E+ARB825 | 12.7 mm | 3 mm | 75 mm | -(0.25) | AR | 650 nm - 1100 nm | < 0.7 % |
Out of stock
Ships in: 62–65 calendar days
$92
|
| 110-0117E | 12.7 mm | 3 mm | 100 mm | -(0.25) | Uncoated | — | — |
62 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0117E+AR532 | 12.7 mm | 3 mm | 100 mm | -(0.25) | AR | 532 nm | < 0.2 % |
Out of stock
Ships in: 58–61 calendar days
$53
|
| 110-0117E+ARB625 | 12.7 mm | 3 mm | 100 mm | -(0.25) | AR | 350 nm - 900 nm | < 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$90
|
| 110-0121E | 12.7 mm | 3 mm | 150 mm | -(0.25) | Uncoated | — | — |
21 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0123E | 12.7 mm | 3 mm | 200 mm | -(0.25) | Uncoated | — | — |
41 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0123E+AR515HT | 12.7 mm | 3 mm | 200 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$144
|
| 110-0125E | 12.7 mm | 3 mm | 250 mm | -(0.25) | Uncoated | — | — |
9 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0125E+AR515HT | 12.7 mm | 3 mm | 250 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$144
|
| 110-0126E | 12.7 mm | 3 mm | 300 mm | -(0.25) | Uncoated | — | — |
67 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0126E+AR1064 | 12.7 mm | 3 mm | 300 mm | -(0.25) | AR | 1064 nm | < 0.2 % |
1 in stock
Ships in: 2–5 calendar days
$53
|
| 110-0127E | 12.7 mm | 3 mm | 350 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$23
|
| 110-0129E | 12.7 mm | 2.1 mm | 500 mm | -(0.25) | Uncoated | — | — |
7 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0129E+AR515HT | 12.7 mm | 2.1 mm | 500 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$144
|
| 110-0135E | 12.7 mm | 2.1 mm | 1000 mm | -(0.25) | Uncoated | — | — |
2 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0135E+AR515HT | 12.7 mm | 2.1 mm | 1000 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$144
|
| 110-0145E | 12.7 mm | 2.1 mm | 1500 mm | -(0.25) | Uncoated | — | — |
4 in stock
Ships in: 2–5 calendar days
$23
|
| 110-0145E+AR1030 | 12.7 mm | 2.1 mm | 1500 mm | -(0.25) | AR | 1000 nm - 1060 nm | < 0.3 % |
Out of stock
Ships in: 62–65 calendar days
$53
|
| 110-0205E | 25.4 mm | 8.5 mm | 30 mm | -(0.25) | Uncoated | — | — |
44 in stock
Ships in: 2–5 calendar days
$33
|
| 110-0205E+AR515 | 25.4 mm | 8.5 mm | 30 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.3 % |
Out of stock
Ships in: 58–61 calendar days
$65
|
| 110-0207E | 25.4 mm | 6.1 mm | 40 mm | -(0.25) | Uncoated | — | — |
37 in stock
Ships in: 2–5 calendar days
$27
|
| 110-0209E | 25.4 mm | 5 mm | 50 mm | -(0.25) | Uncoated | — | — |
29 in stock
Ships in: 2–5 calendar days
$26
|
| 110-0209E+AR515 | 25.4 mm | 5 mm | 50 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.3 % |
Out of stock
Ships in: 58–61 calendar days
$58
|
| 110-0209E+AR515HT | 25.4 mm | 5 mm | 50 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
1 in stock
Ships in: 2–5 calendar days
$149
|
| 110-0211E | 25.4 mm | 4.4 mm | 60 mm | -(0.25) | Uncoated | — | — |
50 in stock
Ships in: 2–5 calendar days
$26
|
| 110-0215E | 25.4 mm | 4 mm | 75 mm | -(0.25) | Uncoated | — | — |
21 in stock
Ships in: 2–5 calendar days
$26
|
| 110-0215E+AR515HT | 25.4 mm | 4 mm | 75 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
Out of stock
Ships in: 62–65 calendar days
$149
|
| 110-0218E | 25.4 mm | 3.8 mm | 90 mm | -(0.25) | Uncoated | — | — |
81 in stock
Ships in: 2–5 calendar days
$26
|
| 110-0218E+AR1064 | 25.4 mm | 3 mm | 90 mm | -(0.25) | AR | 1064 nm | < 0.2 % |
Out of stock
Ships in: 58–61 calendar days
$58
|
| 110-0219E | 25.4 mm | 3.5 mm | 100 mm | -(0.25) | Uncoated | — | — |
67 in stock
Ships in: 2–5 calendar days
$26
|
| 110-0219E+AR515 | 25.4 mm | 3.5 mm | 100 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.3 % |
Out of stock
Ships in: 58–61 calendar days
$58
|
| 110-0219E+AR515HT | 25.4 mm | 3.5 mm | 100 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
43 in stock
Ships in: 2–5 calendar days
$149
|
| 110-0223E | 25.4 mm | 3.2 mm | 125 mm | -(0.25) | Uncoated | — | — |
12 in stock
Ships in: 2–5 calendar days
$26
|
| 110-0223E+AR515HT | 25.4 mm | 3.2 mm | 125 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$149
|
| 110-0227E | 25.4 mm | 3 mm | 150 mm | -(0.25) | Uncoated | — | — |
81 in stock
Ships in: 2–5 calendar days
$26
|
| 110-0227E+AR515HT | 25.4 mm | 3 mm | 150 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
Out of stock
Ships in: 62–65 calendar days
$149
|
| 110-0229E | 25.4 mm | 3 mm | 175 mm | -(0.25) | Uncoated | — | — |
39 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0229E+AR515 | 25.4 mm | 3 mm | 175 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.3 % |
Out of stock
Ships in: 58–61 calendar days
$57
|
| 110-0229E+ARB550 | 25.4 mm | 3 mm | 175 mm | -(0.25) | AR | 400 nm - 700 nm | < 0.9 % |
Out of stock
Ships in: 62–65 calendar days
$89
|
| 110-0231E | 25.4 mm | 3 mm | 200 mm | -(0.25) | Uncoated | — | — |
30 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0231E+AR1064 | 25.4 mm | 3 mm | 200 mm | -(0.25) | AR | 1064 nm | < 0.2 % |
1 in stock
Ships in: 2–5 calendar days
$57
|
| 110-0231E+AR1064HT | 25.4 mm | 3 mm | 200 mm | -(0.25) | AR | 1064 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$148
|
| 110-0231E+AR515 | 25.4 mm | 3 mm | 200 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.3 % |
Out of stock
Ships in: 58–61 calendar days
$57
|
| 110-0231E+AR532 | 25.4 mm | 3 mm | 200 mm | -(0.25) | AR | 532 nm | < 0.2 % |
Out of stock
Ships in: 58–61 calendar days
$57
|
| 110-0235E | 25.4 mm | 3 mm | 250 mm | -(0.25) | Uncoated | — | — |
17 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0235E+AR515HT | 25.4 mm | 3 mm | 250 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$148
|
| 110-0235E+ARB825 | 25.4 mm | 3 mm | 250 mm | -(0.25) | AR | 650 nm - 1100 nm | < 0.7 % |
Out of stock
Ships in: 58–61 calendar days
$95
|
| 110-0239E | 25.4 mm | 3 mm | 300 mm | -(0.25) | Uncoated | — | — |
87 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0239E+AR1064 | 25.4 mm | 3 mm | 300 mm | -(0.25) | AR | 1064 nm | < 0.2 % |
Out of stock
Ships in: 58–61 calendar days
$57
|
| 110-0241E | 25.4 mm | 3 mm | 350 mm | -(0.25) | Uncoated | — | — |
50 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0243E | 25.4 mm | 3 mm | 400 mm | -(0.25) | Uncoated | — | — |
27 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0245E | 25.4 mm | 3 mm | 450 mm | -(0.25) | Uncoated | — | — |
13 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0247E | 25.4 mm | 3 mm | 500 mm | -(0.25) | Uncoated | — | — |
25 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0247E+AR515HT | 25.4 mm | 3 mm | 500 mm | -(0.25) | AR | 500 nm - 530 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$148
|
| 110-0247E+ARB825 | 25.4 mm | 3 mm | 500 mm | -(0.25) | AR | 650 nm - 1100 nm | < 0.7 % |
Out of stock
Ships in: 58–61 calendar days
$95
|
| 110-0248E | 25.4 mm | 3 mm | 550 mm | -(0.25) | Uncoated | — | — |
12 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0249E | 25.4 mm | 3 mm | 600 mm | -(0.25) | Uncoated | — | — |
40 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0249E+AR1064 | 25.4 mm | 3 mm | 600 mm | -(0.25) | AR | 1064 nm | < 0.2 % |
4 in stock
Ships in: 2–5 calendar days
$57
|
| 110-0249E+ARD1064 | 25.4 mm | 3 mm | 600 mm | -(0.25) | AR | 532 nm | < 0.25 % |
Out of stock
Ships in: 62–65 calendar days
$64
|
| 110-0251E | 25.4 mm | 3 mm | 700 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$24
|
| 110-0255E | 25.4 mm | 3 mm | 800 mm | -(0.25) | Uncoated | — | — |
20 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0257E | 25.4 mm | 3 mm | 900 mm | -(0.25) | Uncoated | — | — |
14 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0259E | 25.4 mm | 3 mm | 1000 mm | -(0.25) | Uncoated | — | — |
8 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0259E+AR1064HT | 25.4 mm | 3 mm | 1000 mm | -(0.25) | AR | 1064 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$148
|
| 110-0263E | 25.4 mm | 3 mm | 1200 mm | -(0.25) | Uncoated | — | — |
28 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0263E+AR532 | 25.4 mm | 3 mm | 1200 mm | -(0.25) | AR | 532 nm | < 0.2 % |
Out of stock
Ships in: 58–61 calendar days
$57
|
| 110-0263E+AR532HT | 25.4 mm | 3 mm | 1200 mm | -(0.25) | AR | 532 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$148
|
| 110-0264E | 25.4 mm | 3 mm | 1250 mm | -(0.25) | Uncoated | — | — |
1 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0264E+ARB825 | 25.4 mm | 3 mm | 1250 mm | -(0.25) | AR | 650 nm - 1100 nm | < 0.7 % |
Out of stock
Ships in: 58–61 calendar days
$95
|
| 110-0265E | 25.4 mm | 3 mm | 1300 mm | -(0.25) | Uncoated | — | — |
20 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0266E | 25.4 mm | 3 mm | 1400 mm | -(0.25) | Uncoated | — | — |
6 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0267E | 25.4 mm | 3 mm | 1500 mm | -(0.25) | Uncoated | — | — |
37 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0267E+AR532 | 25.4 mm | 3 mm | 1500 mm | -(0.25) | AR | 532 nm | < 0.2 % |
Out of stock
Ships in: 58–61 calendar days
$57
|
| 110-0267E+ARD800HT | 25.4 mm | 3 mm | 1500 mm | -(0.25) | AR | 400 nm | < 0.2 % |
Out of stock
Ships in: 62–65 calendar days
$172
|
| 110-0268E | 25.4 mm | 3 mm | 1600 mm | -(0.25) | Uncoated | — | — |
4 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0269E | 25.4 mm | 3 mm | 1750 mm | -(0.25) | Uncoated | — | — |
13 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0270E | 25.4 mm | 3 mm | 1900 mm | -(0.25) | Uncoated | — | — |
1 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0271E | 25.4 mm | 3 mm | 2000 mm | -(0.25) | Uncoated | — | — |
28 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0271E+AR800HT | 25.4 mm | 3 mm | 2000 mm | -(0.25) | AR | 760 nm - 840 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$148
|
| 110-0271E+ARB825 | 25.4 mm | 3 mm | 2000 mm | -(0.25) | AR | 650 nm - 1100 nm | < 0.7 % |
Out of stock
Ships in: 58–61 calendar days
$95
|
| 110-0275E | 25.4 mm | 3 mm | 2500 mm | -(0.25) | Uncoated | — | — |
68 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0275E+ARB825 | 25.4 mm | 3 mm | 2500 mm | -(0.25) | AR | 650 nm - 1100 nm | < 0.7 % |
Out of stock
Ships in: 62–65 calendar days
$95
|
| 110-0281E | 25.4 mm | 3 mm | 3000 mm | -(0.25) | Uncoated | — | — |
57 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0281E+AR800HT | 25.4 mm | 3 mm | 3000 mm | -(0.25) | AR | 760 nm - 840 nm | < 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$148
|
| 110-0281E+ARD800HT | 25.4 mm | 3 mm | 3000 mm | -(0.25) | AR | 400 nm | < 0.2 % |
Out of stock
Ships in: 58–61 calendar days
$172
|
| 110-0285E | 25.4 mm | 3 mm | 4000 mm | -(0.25) | Uncoated | — | — |
17 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0289E | 25.4 mm | 3 mm | 5000 mm | -(0.25) | Uncoated | — | — |
32 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0295E | 25.4 mm | 3 mm | 10000 mm | -(0.25) | Uncoated | — | — |
7 in stock
Ships in: 2–5 calendar days
$24
|
| 110-0405E | 38.1 mm | 12 mm | 50 mm | -(0.25) | Uncoated | — | — |
29 in stock
Ships in: 2–5 calendar days
$42
|
| 110-0406E | 38.1 mm | 8 mm | 63.5 mm | -(0.25) | Uncoated | — | — |
13 in stock
Ships in: 2–5 calendar days
$42
|
| 110-0407E | 38.1 mm | 8 mm | 75 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 58–61 calendar days
$42
|
| 110-0409E | 38.1 mm | 6.5 mm | 100 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 58–61 calendar days
$42
|
| 110-0411E | 38.1 mm | 5.1 mm | 150 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 58–61 calendar days
$42
|
| 110-0415E | 38.1 mm | 4.3 mm | 200 mm | -(0.25) | Uncoated | — | — |
9 in stock
Ships in: 2–5 calendar days
$42
|
| 110-0417E | 38.1 mm | 4 mm | 250 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 58–61 calendar days
$42
|
| 110-0419E | 38.1 mm | 4 mm | 300 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 58–61 calendar days
$42
|
| 110-0421E | 38.1 mm | 4 mm | 350 mm | -(0.25) | Uncoated | — | — |
3 in stock
Ships in: 2–5 calendar days
$42
|
| 110-0423E | 38.1 mm | 4 mm | 400 mm | -(0.25) | Uncoated | — | — |
4 in stock
Ships in: 2–5 calendar days
$42
|
| 110-0427E | 38.1 mm | 4 mm | 500 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 58–61 calendar days
$42
|
| 110-0435E | 38.1 mm | 4 mm | 700 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 58–61 calendar days
$42
|
| 110-0445E | 38.1 mm | 4 mm | 1000 mm | -(0.25) | Uncoated | — | — |
2 in stock
Ships in: 2–5 calendar days
$42
|
| 110-0450E | 38.1 mm | 4 mm | 2500 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 58–61 calendar days
$42
|
| 110-0455E | 38.1 mm | 4 mm | 5000 mm | -(0.25) | Uncoated | — | — |
3 in stock
Ships in: 2–5 calendar days
$42
|
| 110-0502E | 50.8 mm | 12.3 mm | 75 mm | -(0.25) | Uncoated | — | — |
41 in stock
Ships in: 2–5 calendar days
$66
|
| 110-0505E | 50.8 mm | 10.4 mm | 100 mm | -(0.25) | Uncoated | — | — |
17 in stock
Ships in: 2–5 calendar days
$59
|
| 110-0507E | 50.8 mm | 7.2 mm | 150 mm | -(0.25) | Uncoated | — | — |
22 in stock
Ships in: 2–5 calendar days
$56
|
| 110-0509E | 50.8 mm | 6.1 mm | 200 mm | -(0.25) | Uncoated | — | — |
39 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0511E | 50.8 mm | 5.4 mm | 250 mm | -(0.25) | Uncoated | — | — |
17 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0515E | 50.8 mm | 5 mm | 300 mm | -(0.25) | Uncoated | — | — |
4 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0519E | 50.8 mm | 4.7 mm | 350 mm | -(0.25) | Uncoated | — | — |
19 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0523E | 50.8 mm | 5.5 mm | 400 mm | -(0.25) | Uncoated | — | — |
50 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0525E | 50.8 mm | 5.2 mm | 500 mm | -(0.25) | Uncoated | — | — |
7 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0527E | 50.8 mm | 5 mm | 600 mm | -(0.25) | Uncoated | — | — |
21 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0528E | 50.8 mm | 5 mm | 650 mm | -(0.25) | Uncoated | — | — |
17 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0529E | 50.8 mm | 5 mm | 700 mm | -(0.25) | Uncoated | — | — |
9 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0531E | 50.8 mm | 5 mm | 800 mm | -(0.25) | Uncoated | — | — |
18 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0535E | 50.8 mm | 5 mm | 1000 mm | -(0.25) | Uncoated | — | — |
33 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0540E | 50.8 mm | 5 mm | 1500 mm | -(0.25) | Uncoated | — | — |
17 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0545E | 50.8 mm | 5 mm | 2000 mm | -(0.25) | Uncoated | — | — |
21 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0555E | 50.8 mm | 5 mm | 5000 mm | -(0.25) | Uncoated | — | — |
13 in stock
Ships in: 2–5 calendar days
$54
|
| 110-0565E | 50.8 mm | 5 mm | 10000 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$54
|
| 110-0711E | 76.2 mm | 12.7 mm | 250 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$144
|
| 110-0715E | 76.2 mm | 11.7 mm | 300 mm | -(0.25) | Uncoated | — | — |
12 in stock
Ships in: 2–5 calendar days
$144
|
| 110-0723E | 76.2 mm | 10.5 mm | 400 mm | -(0.25) | Uncoated | — | — |
6 in stock
Ships in: 2–5 calendar days
$144
|
| 110-0725E | 76.2 mm | 9.7 mm | 500 mm | -(0.25) | Uncoated | — | — |
49 in stock
Ships in: 2–5 calendar days
$144
|
| 110-0730E | 76.2 mm | 8.9 mm | 750 mm | -(0.25) | Uncoated | — | — |
13 in stock
Ships in: 2–5 calendar days
$144
|
| 110-0735E | 76.2 mm | 8.4 mm | 1000 mm | -(0.25) | Uncoated | — | — |
8 in stock
Ships in: 2–5 calendar days
$144
|
| 110-0740E | 76.2 mm | 7.9 mm | 1500 mm | -(0.25) | Uncoated | — | — |
10 in stock
Ships in: 2–5 calendar days
$144
|
| 110-0745E | 76.2 mm | 7.7 mm | 2000 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$144
|
| 110-0748E | 76.2 mm | 7.5 mm | 3000 mm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$144
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Center Thickness Upper Tolerance | 0.2 mm |
| Center Thickness Lower Tolerance | -0.2 mm |
| Edge Thickness Upper Tolerance | 0.2 mm |
| Edge Thickness Lower Tolerance | -0.2 mm |
| Focal Length Wavelength | 546 nm |
| Material | BK7 |
Surface 1
| Surface Shape | Convex |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.25) |
| Clear Aperture, % | >90 % |
Surface 2
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.25) |
| Clear Aperture, % | >90 % |
Description
- Positive focal length
- Converge incident light
- Form both real and virtual images
- Very close to the form minimizing spherical aberration for infinite conjugate applications
These simplest form lenses have flat surface on one side and spherical surface on the other. They are widely used in telescopes, microscopes, collimators, optical transceivers, magnifiers, condenser systems and eyepieces.
Plano convex lens made of UV FS (UV grade Fused Silica) and CaF₂ (Calcium Fluoride) are also available for fast off-the-shelf delivery.
Lenses can be supplied coated. For required coating please refer to the Coatings section of the Optical Components catalog. If you would like to order a coated lens, please note the code of the lens and the code of the coating in your request.
If you would like to order a range of lenses with different focal lengths, please have a look at our BK7 lens kit offers.
