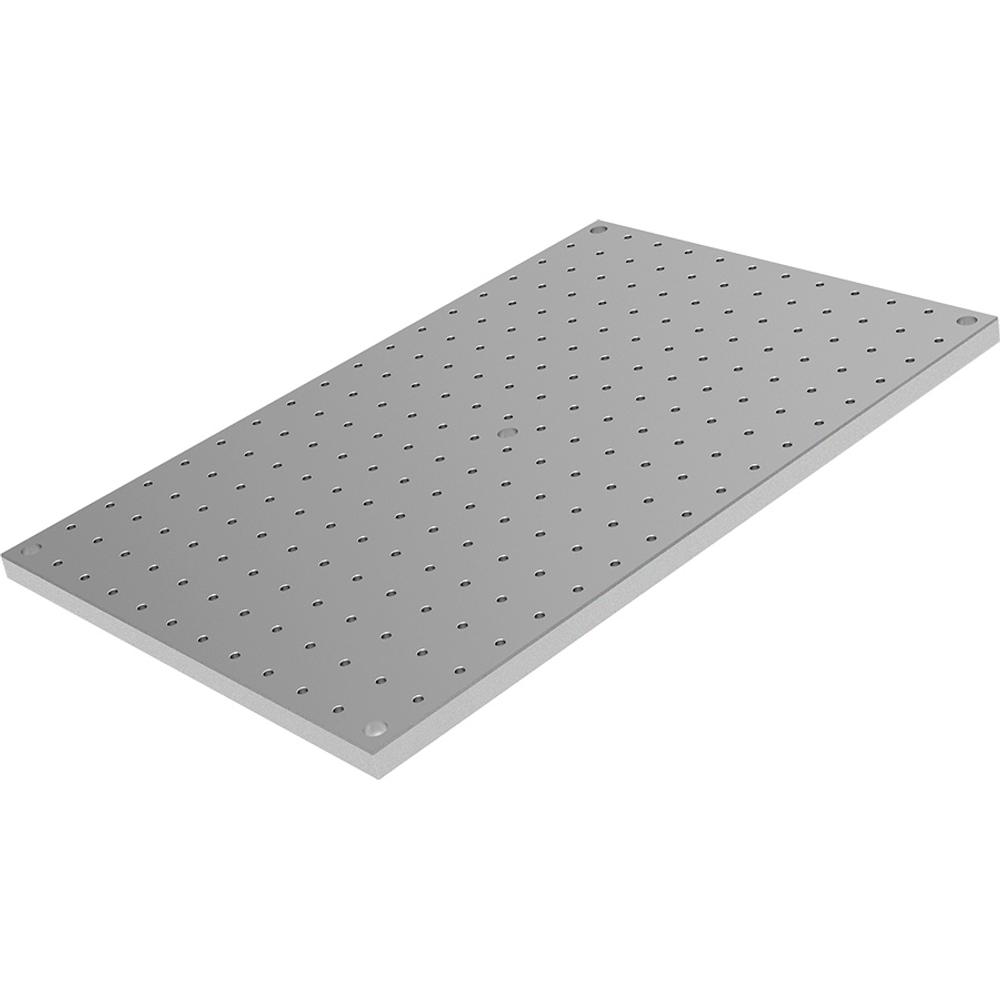

Aluminum Optical Breadboards 715-A
715-A series solid aluminum optical breadboards are similar to 715 series breadboards. The difference is that in 715-A mounting holes are closer to breadboard edge (12.5 mm) and it has fifth additional central… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Width | Length | Height | Mount Material and Coat | |
|---|---|---|---|---|---|---|
| 715-1020-A-BL | Solid Breadboard | 100 mm | 200 mm | 15 mm | Black Anodised Aluminum |
Out of stock
—
|
| 715-1515-A-BL | Solid Breadboard | 150 mm | 150 mm | 15 mm | Black Anodised Aluminum |
Out of stock
—
|
| 715-1520-A-BL | Solid Breadboard | 150 mm | 200 mm | 15 mm | Black Anodised Aluminum |
Out of stock
—
|
| 715-2040-A | Solid Breadboard | 200 mm | 400 mm | 15 mm | Uncoated Aluminum |
Out of stock
—
|
| 715-3030-A | Solid Breadboard | 300 mm | 300 mm | 15 mm | Uncoated Aluminum |
Out of stock
—
|
| 715-3030-A-BL | Solid Breadboard | 300 mm | 300 mm | 15 mm | Black Anodised Aluminum |
Out of stock
—
|
| 715-3045-A | Solid Breadboard | 300 mm | 450 mm | 15 mm | Uncoated Aluminum |
Out of stock
—
|
| 715-3045-A-BL | Solid Breadboard | 300 mm | 450 mm | 15 mm | Black Anodised Aluminum |
Out of stock
—
|
| 715-3060-A-BL | Solid Breadboard | 300 mm | 600 mm | 15 mm | Black Anodised Aluminum |
Out of stock
—
|
| 715-4545-A | Solid Breadboard | 450 mm | 450 mm | 15 mm | Uncoated Aluminum |
Out of stock
—
|
| 715-6060-A-BL | Solid Breadboard | 600 mm | 600 mm | 15 mm | Black Anodised Aluminum |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Solid Breadboard |
| Height | 15 mm |
| Hole spacing | 25 mm |
| Mounting Thread | M6 |
| Number of mounting holes | 5 |
| Hole-to-edge distance | 12.5 mm |
| Thickness | 15 mm |
Description
715-A series solid aluminum optical breadboards are similar to 715 series breadboards. The difference is that in 715-A mounting holes are closer to breadboard edge (12.5 mm) and it has fifth additional central counterbored through hole which makes it possible to mount smaller breadboards on a single supporting element and in case with larger breadboards when fifth support is added the rigidity increases and the stress reduces when mounting heavy loads. All other specifications are same to 715 breadboards.
