LBO Crystals for SHG of Yb:KGW/KYW Frequency Conversion SKU: LBO-1203H
Eksma Optics recommends the LBO crystals of a thickness indicated below for Type 1 SHG at 1030 nm depending on fundamental wavelength pulse duration, assuming it's spectrum limited Gausian pulse. SHG@1030 nm LBO crystal thickness 50 fs 0.9 mm 100 fs 1.9 mm 150 fs 2.8 mm 200 fs…
Variant specifications
| Specification | Value |
|---|---|
| Aperture | 12x12 mm |
| Thickness | 2,8 mm |
| θ | 90 |
| φ | 13.8 |

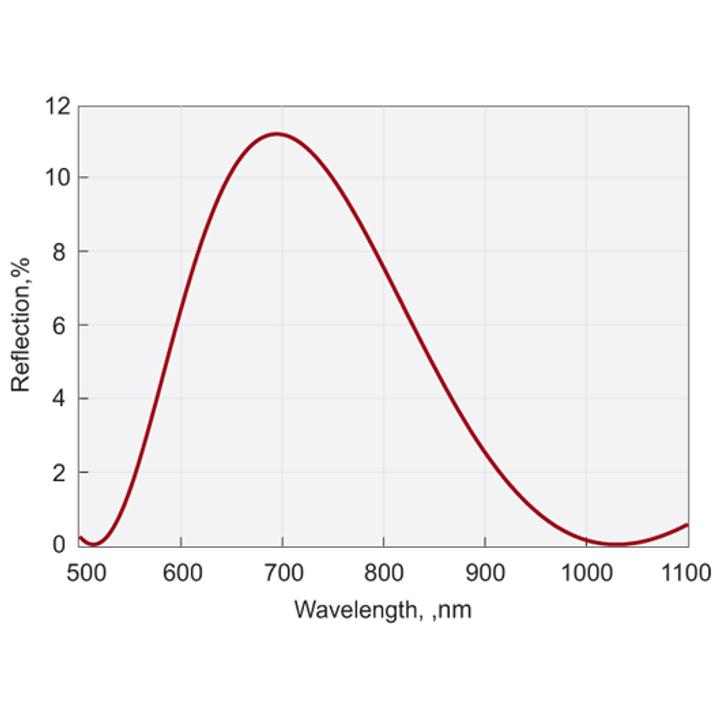

| Coating | AR/AR@515+1030 nm |
Shared product specifications
These specifications apply across the LBO Crystals for SHG of Yb:KGW/KYW Frequency Conversion product family.
Classification
| Line | femtoline |
