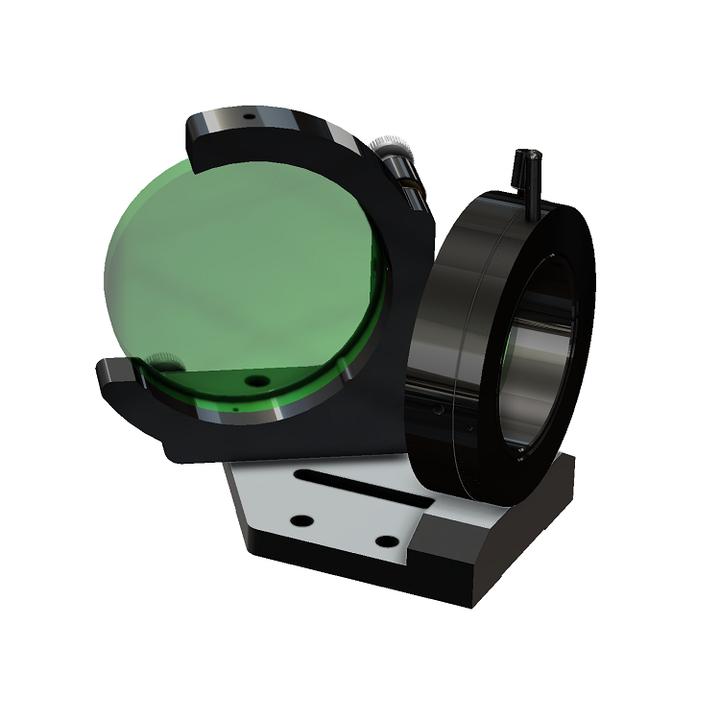

Variable Attenuator for Femtosecond and Nd:YAG Laser Pulses 990-0073 SKU: 990-0073-343
• Divides laser beam into two beams of manually adjustable intensity ratio separated by 68° angle • Large dynamic range • Transmitted beam shift ~1.4 mm • High optical damage threshold This variable attenuator/beamsplitter consists of UV FS Thin Film Brewster Type…
Variant specifications
| Specification | Value |
|---|---|
| Wavelength | 343 nm |
| Laser damage threshold | > 10 mJ/cm², 50 fs pulse, 800 nm |
Shared product specifications
These specifications apply across the Variable Attenuator for Femtosecond and Nd:YAG Laser Pulses 990-0073 product family.
| Clear aperture diameter | 36 mm |
| Damage threshold | |
| For Nd:YAG applications | >5 J / cm², 10 ns at, 10 Hz 1064 nm, typical |
| For femtosecond applications | >10 mJ / cm², 50 fs at 800 nm, typical |
| For high power applications | >100 mJ / cm², 50 fs at 800 nm, typical |
| Polarization contrast | >1:200 |
| Transmitted beam shift | ~1.4 mm |
| Weight | 0.6 kg |
