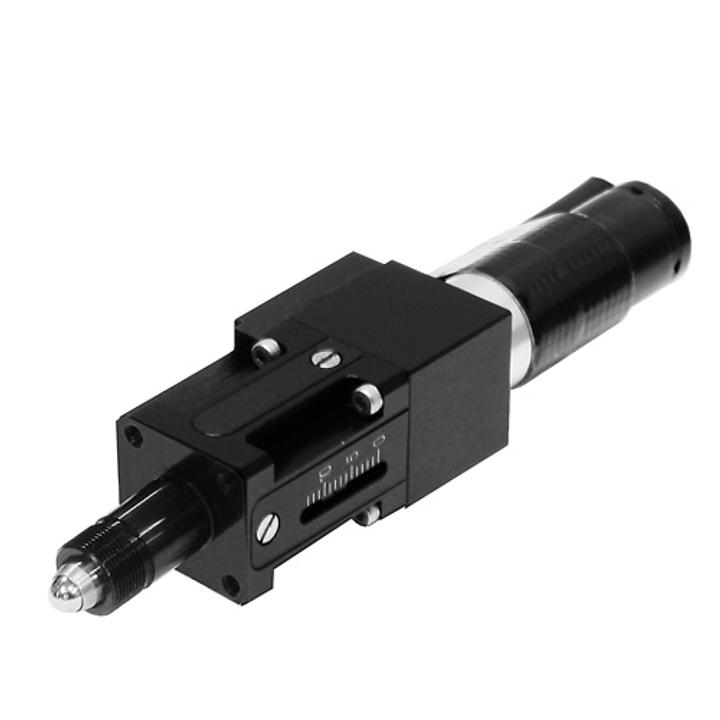

Ultra-High Resolution Compact Motorized Actuator (DC Motor) 970-0067 SKU: 970-0067-10*
• 13 mm or 25 mm travel range. • Resolution is 0.1 μm • Ultra-High Resolution Compact Motorized Actuator with Vacuum compatible DC motor 970-0067V is available.
Variant specifications
| Specification | Value |
|---|---|
| L | 104.5...117.5 mm |
| L1 | 10 mm |
| L2 | 4.5 mm |
| L3 | 40 mm |
Shared product specifications
These specifications apply across the Ultra-High Resolution Compact Motorized Actuator (DC Motor) 970-0067 product family.
| Model | 970-0067-15 | 970-0067-25 |
|---|---|---|
| Travel range | 13 mm | 25 mm |
| Minimal Incremental Motion | 0.01 μm | 0.01 μm |
| Resolution | 0.0281 μm | 0.0281 μm |
| Lead screw pitch | 0.25 mm | 0.25 mm |
| Max.speed | 0.15 mm / s | 0.15 mm / s |
| Nominal force | 30 N | 30 N |
| Cable | integrated, 1.2 m length | integrated, 1.2 m length |
| Motor connector | IDC-10F | IDC-10F |
| DC motor | DCE1524 | DCE1524 |
| Weight | 0.12 kg | 0.15 kg |
