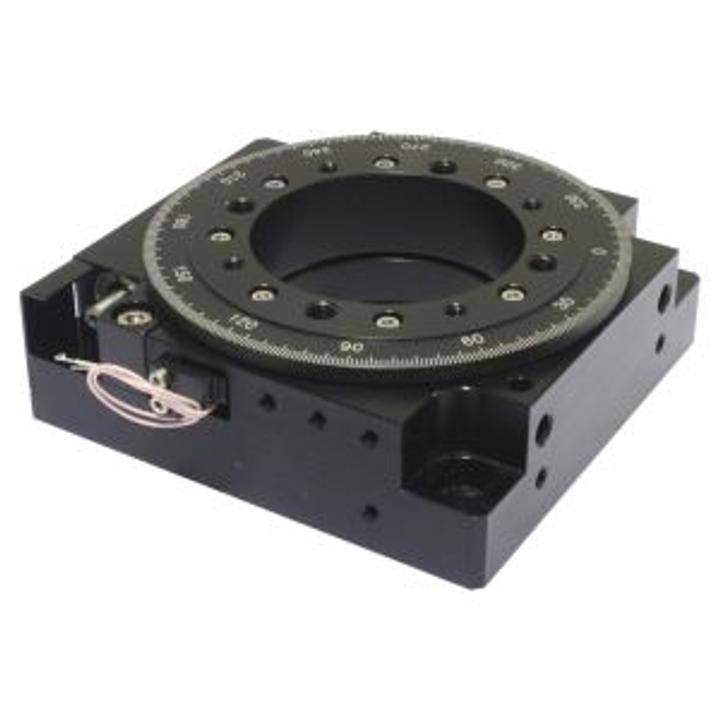

Motorized Rotation Stages 960-0140 SKU: 969-0140
• 360 degrees rotation graduated in 1° • 50.8 mm (2 inch) aperture • Resolution 4.5 arcsec in 1/8 step • Zero backlash • High stability • Home/zero position limit switch • Mounting modifications are available on request • Vacuum version is available • Encoders or Revolution…
Variant specifications
| Specification | Value |
|---|---|
| Description | Rotation stage 960-0140 with stepper motor Phytron ZSS43 (0.6 A, 200 steps) |
Shared product specifications
These specifications apply across the Motorized Rotation Stages 960-0140 product family.
| Model | 968-0140* | 960-0140V |
|---|---|---|
| Rotation range | 360° | 360° |
| Resolution in full step* | 0.6 arcmin (0.01°) | 0.6 arcmin (0.01°) |
| Max. rotation speed* | 8 turn / min | 2 turn / min |
| Backflash | 0 μm | 0 μm |
| Wobble | 0.5 arcmin | 0.5 arcmin |
| Eccentricity | 10 μm | 10 μm |
| Load capacity: / horizontal / radial | 10 kg / 2 kg | 10 kg / 2 kg |
| Torque | 1Nm | 0.6Nm |
| Weight | 1 kg | 1kg |
| Motor | 28 | VSS42** |
| Mechanical home reference switch | 1, pushed is "closed" | 1, pushed is "closed" |
