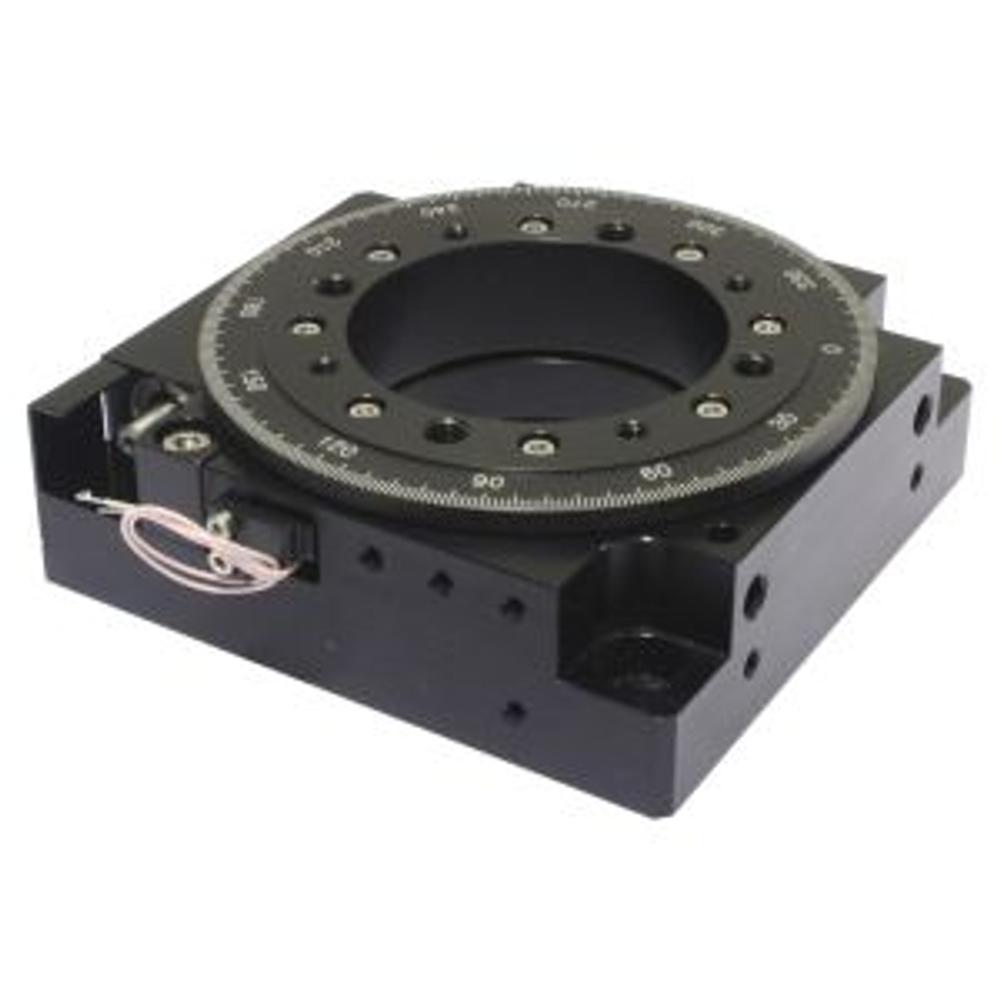

Motorized Rotation Stages 960-0140
• 360 degrees rotation graduated in 1° • 50.8 mm (2 inch) aperture • Resolution 4.5 arcsec in 1/8 step • Zero backlash • High stability • Home/zero position limit switch • Mounting modifications are available on… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 960-0140 | Rotation stage 960-0140 without motor |
Out of stock
$1,839
|
| 960-0140V | Vacuum compatible rotation stage 960-0140V with stepper motor VSS442 |
Out of stock
—
|
| 962-0140 | Rotation stage 960-0140 with stepper motor 4247 (1.2 A, 200 steps) |
Out of stock
$1,948
|
| 964-0140 | Rotation stage 960-0140 with stepper motor 4233 (0.4 A, 200 steps) |
1 in stock
Ships in: 2–5 calendar days
$1,959
|
| 968-0140 | Rotation stage 960-0140 with stepper motor Nanotec 28 (0.67 A, 200 steps) |
Out of stock
$1,901
|
| 969-0140 | Rotation stage 960-0140 with stepper motor Phytron ZSS43 (0.6 A, 200 steps) |
Out of stock
$1,773
|
Specifications
| Model | 968-0140* | 960-0140V |
|---|---|---|
| Rotation range | 360° | 360° |
| Resolution in full step* | 0.6 arcmin (0.01°) | 0.6 arcmin (0.01°) |
| Max. rotation speed* | 8 turn / min | 2 turn / min |
| Backflash | 0 μm | 0 μm |
| Wobble | 0.5 arcmin | 0.5 arcmin |
| Eccentricity | 10 μm | 10 μm |
| Load capacity: / horizontal / radial | 10 kg / 2 kg | 10 kg / 2 kg |
| Torque | 1Nm | 0.6Nm |
| Weight | 1 kg | 1kg |
| Motor | 28 | VSS42** |
| Mechanical home reference switch | 1, pushed is "closed" | 1, pushed is "closed" |
Description
- 360 degrees rotation graduated in 1°
- 50.8 mm (2 inch) aperture
- Resolution 4.5 arcsec in 1/8 step
- Zero backlash
- High stability
- Home/zero position limit switch
- Mounting modifications are available on request
- Vacuum version is available
- Encoders or Revolution sensors are available on request. More information
- Inch version available
