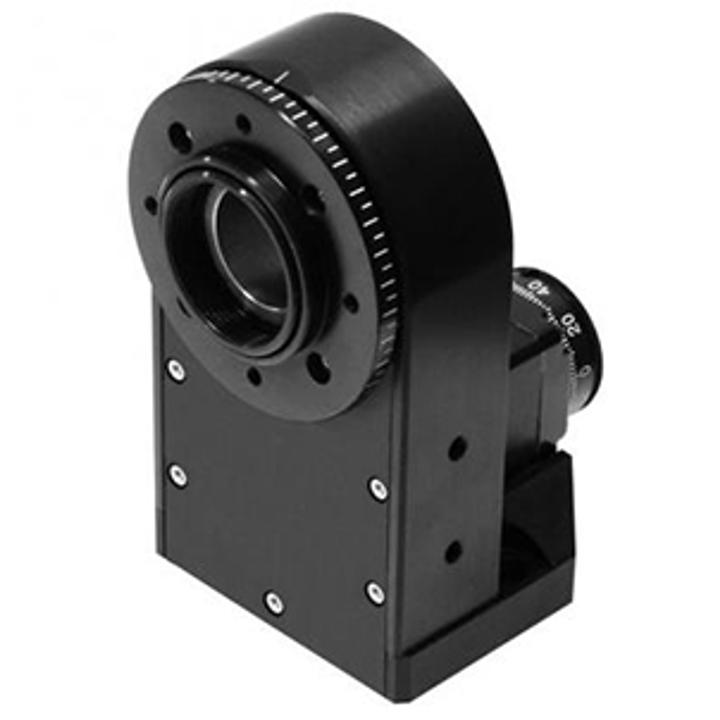

Universal Motorized Rotation Stage 960-0190 SKU: 960-0190-03
Universal Motorized Rotation Stage 960-0190 is a simple and durable low cost solution as it can be used as an optical element rotator, filter wheel or universal rotating platform. Center opening has a threaded M27x1 aperture for mounting 1” optical elements. Retaining ring for…
Variant specifications
| Specification | Value |
|---|---|
| Description | mounting platform version |
Shared product specifications
These specifications apply across the Universal Motorized Rotation Stage 960-0190 product family.
| Rotation range | 360° |
| Resolution in full step / in 1 / 8 step | 0.6° / 4.5 arcmin |
| Max. rotation speed* | 3÷5 rps |
| Wobble | 2 arcmin |
| Reduction gear | 3:1 |
| Limit switches | mechanical |
| Drive mechanism | belt |
| Load capacity / Horizontal / Radial / Torque | 5 kg / 1.5 kg / 4.5x10⁻³ Nm |
| Cable | integrated, 1,6 m length |
| Motor connector | HDB15(M) |
| Stepper motor | 28S |
| Mechanical reference switch / Switch polarity | 1 / pushed is closed |
