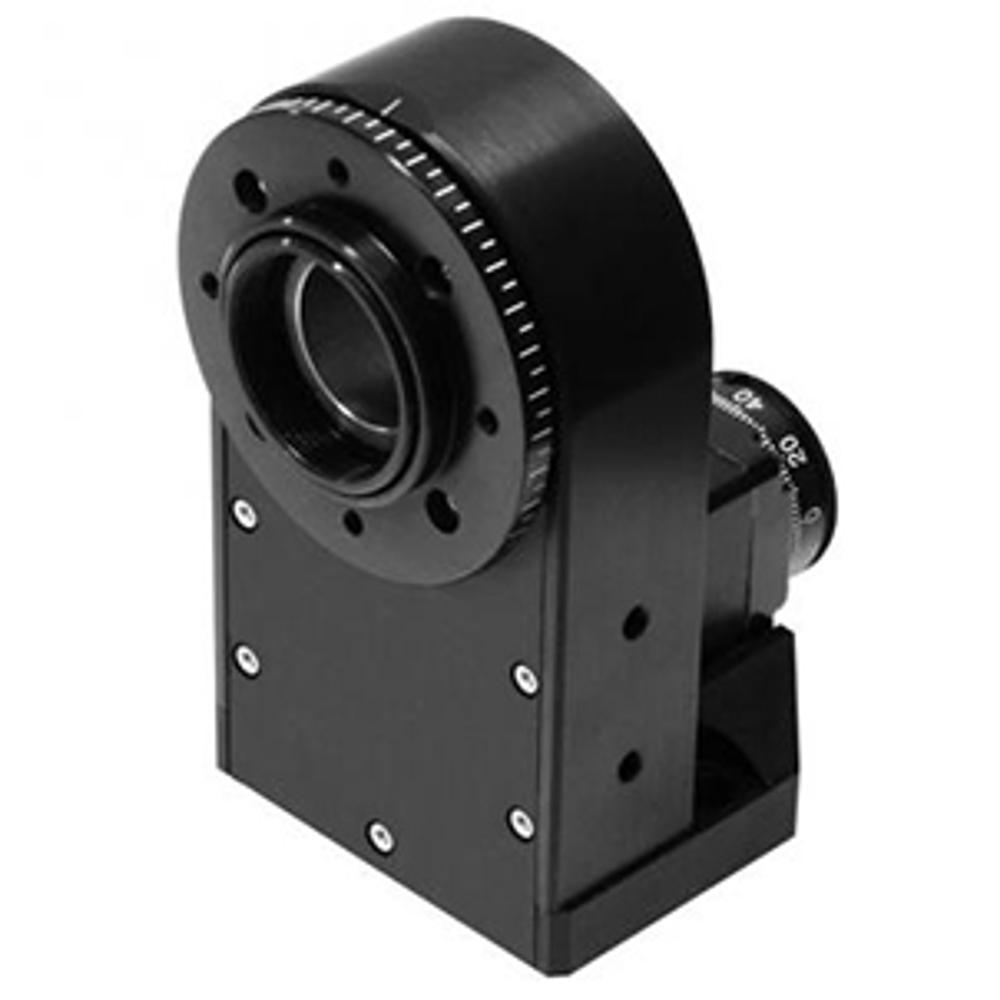

Universal Motorized Rotation Stage 960-0190
Universal Motorized Rotation Stage 960-0190 is a simple and durable low cost solution as it can be used as an optical element rotator, filter wheel or universal rotating platform. Center opening has a threaded M27x1… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 960-0190-01 | basic rotation stage of 1' optical elements |
Out of stock
$951
|
| 960-0190-02 | filter wheel version |
Out of stock
$1,257
|
| 960-0190-03 | mounting platform version |
Out of stock
$1,151
|
Specifications
| Rotation range | 360° |
| Resolution in full step / in 1 / 8 step | 0.6° / 4.5 arcmin |
| Max. rotation speed* | 3÷5 rps |
| Wobble | 2 arcmin |
| Reduction gear | 3:1 |
| Limit switches | mechanical |
| Drive mechanism | belt |
| Load capacity / Horizontal / Radial / Torque | 5 kg / 1.5 kg / 4.5x10⁻³ Nm |
| Cable | integrated, 1,6 m length |
| Motor connector | HDB15(M) |
| Stepper motor | 28S |
| Mechanical reference switch / Switch polarity | 1 / pushed is closed |
Description
Universal Motorized Rotation Stage 960-0190 is a simple and durable low cost solution as it can be used as an optical element rotator, filter wheel or universal rotating platform. Center opening has a threaded M27x1 aperture for mounting 1” optical elements. Retaining ring for fastening optics is included.
960-0190 with various accessories can serve as several devices in one. Custom accessories are manufactured on request.
960-0190-01 is a basic rotation stage that can rotate 1” optical elements. Various accessories and custom parts can be mounted on provided M3x7 mounting holes. 960-0190-02 and 960-0190-03 are variations of 960-0190-01 with accessories for various applications.
