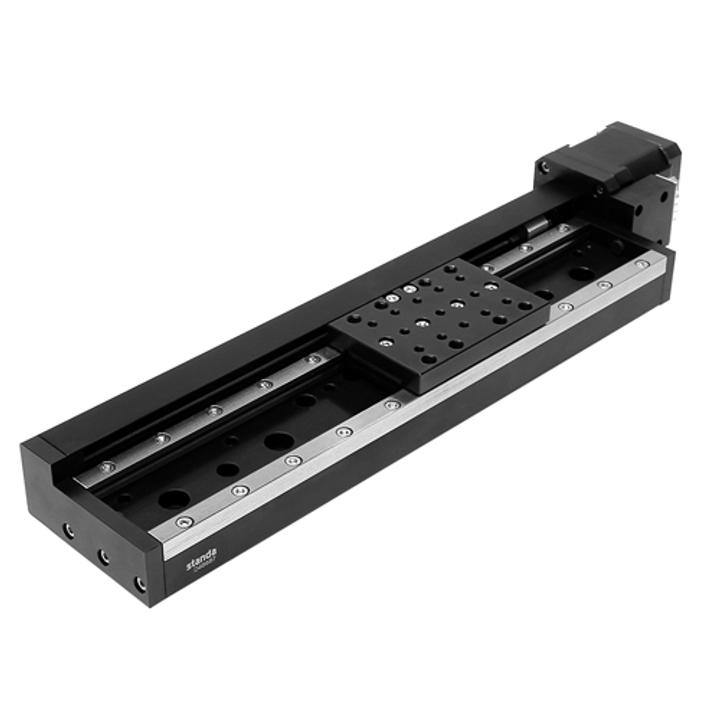

Motorized Translation Stage 960-0065 SKU: 960-0065Z-15BS1
• Narrow • Compact design • High speed • Heavy load capacity • X-Y-Z configurations available • Angle Bracket 810-0160 is used to transform "horizontal" translators into vertical ones • Motors of other types are available For applications requiring vertical Z axis movement, we…
Variant specifications
| Specification | Value |
|---|---|
| Description | Travel range - 150 mm, for applications requiring vertical Z axis movement |
| Weight | 1.4 kg |
Shared product specifications
These specifications apply across the Motorized Translation Stage 960-0065 product family.
| Travel range | Travel range |
| 960-0065-10BS1 / 960-0065-15BS1 / 960-0065-20BS1 | 100 mm / 150 mm / 200 mm |
| Ball screw pitch | 1 mm |
| Resolution in full step* | 5 µm |
| Max. speed* | 20 mm / s |
| Load Capacity | Load Capacity |
| Horizontal / Vertical | 30 kg / 8 kg |
| Motor connector | DB9(M) |
| Stepper motor | 4247 |
| Assemblies: | Assemblies: |
| X-Y / Z | directly / 810-0160 |
