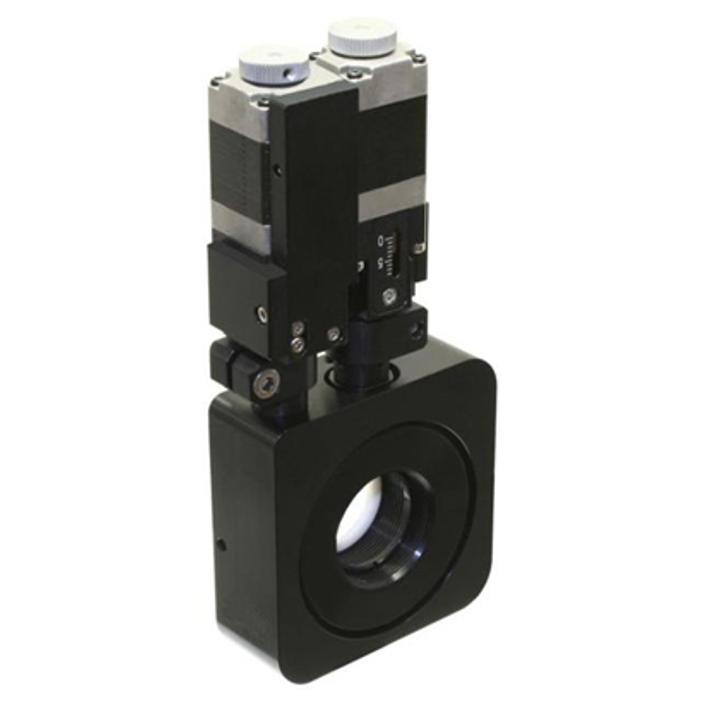

Motorized Gimbal Mount 940-0096 SKU: 940-0096V
• Angular range ±2,5° • Resolution 0,156 μm • Two Compact Motorized Actuators 970-0060 are installed • Optics diameter is 25,4 mm • Clear aperture - 23 mm • Vacuum version 940-0096V is available on request
Shared product specifications
These specifications apply across the Motorized Gimbal Mount 940-0096 product family.
| Optics diameter | 25,4 mm |
| Clear aperture | 23 mm |
| Angular range | ±2,5° |
| Installed actuators | 2x970-0060 |
| Resolution* / in full step / in 1 / 8 step | 1,25 μm / 0,156 μm |
| Lead screw pitch | 0,25 mm |
| Repeatability | 1 μm |
| Maximum speed | 4 mm / s |
| Cable | 1,2 m length cable included |
| Motor connector | HDB15(M) |
