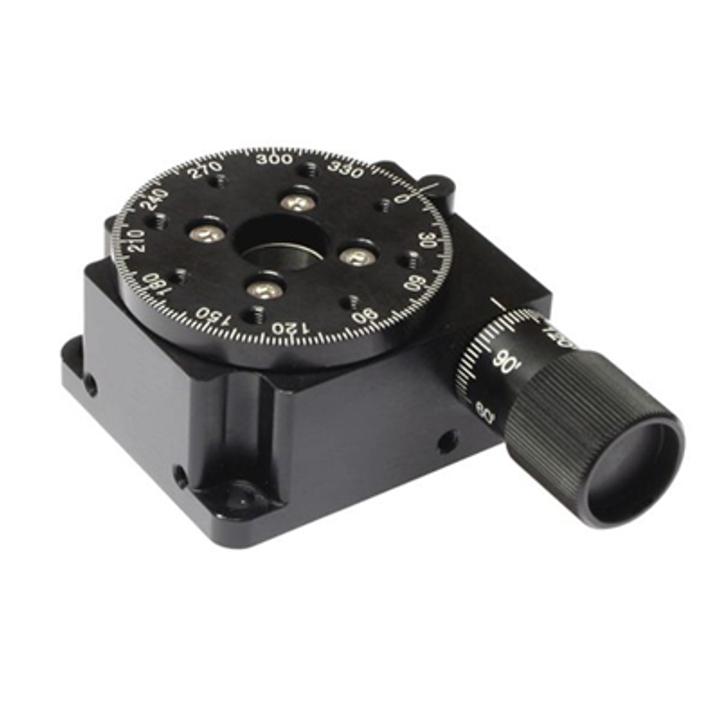

Mini Rotation Stage 860-0170 SKU: 860-0170E
• Worm gear design • Ø11 mm clear aperture in the center • Very compact design 46×65 mm • No need in adapter plate for mounting (there are mounting holes on bottom) • Resolution 3 arcmin The Advantages of Rotation Stage 860-0170 regarding the analogues of other manufacturers is…
Shared product specifications
These specifications apply across the Mini Rotation Stage 860-0170 product family.
| Rotation range | 360° (continuous) |
| Sensitivity | 1 arcmin |
| Reading accuracy | 3 arcmin |
| Wobble | 1 arcmin |
| Eccentricity | 10 µm |
| Load capacity: / horizontal / radial | 4 kg / 1.5 kg |
| Clear aperture | Ø11 mm |
| Mini Rotation Stage - Solidworks file | |
| Mini Rotation Stage - DWG file | |
| Mini Rotation Stage - STEP file |
Classification
| Type | translation|rotation |
