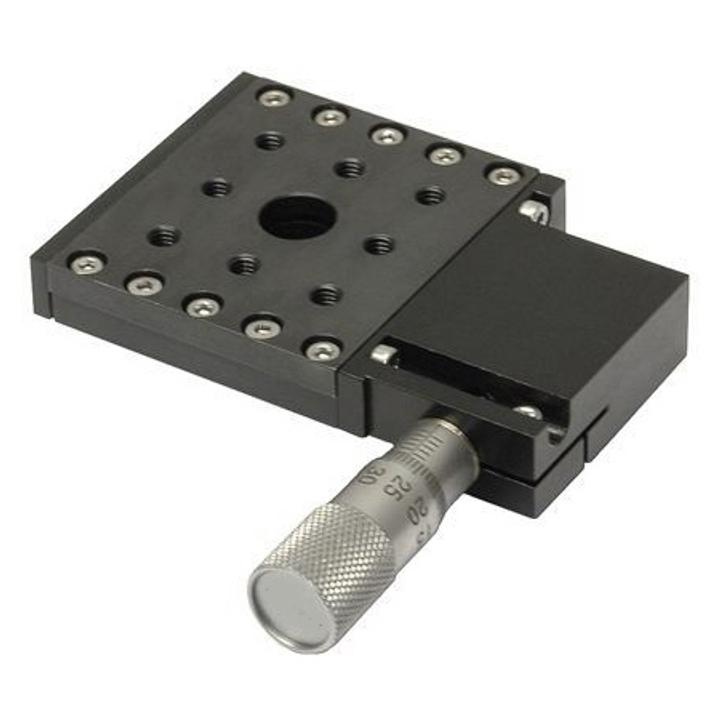

Side Control Linear Steel Stages 860-0092T SKU: 860-0092-01SST
• Stable steel stage • 10 mm travel range • Side control linear stage • Driving micrometer screw • Precise ball bearings • Compact XYZ configuration with all screws from one side • Stainless steel and vacuum versions available
Variant specifications
| Specification | Value |
|---|---|
| Description | made of stainless steel |
Shared product specifications
These specifications apply across the Side Control Linear Steel Stages 860-0092T product family.
| Travel range | 10 mm |
| Sensitivity | 1 µm |
| Tracking accuracy | 2 µm |
| Reading accuracy | 5 µm (1 / 2 div.) |
| Load capacity | |
| horizontal | 6 kg |
| vertical | 3 kg |
Classification
| Type | translation|rotation |
