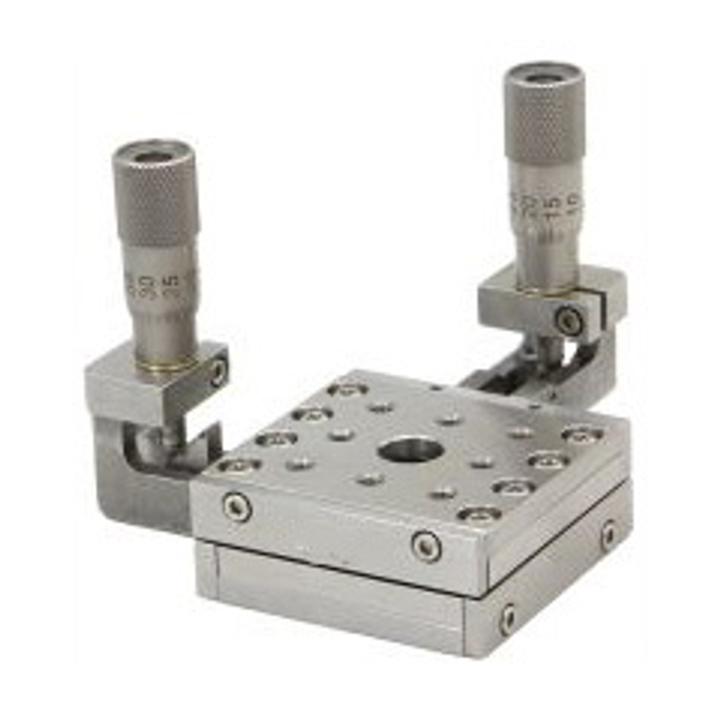

Vertical Drive Ultra Low Profile Steel Translation Stages 860-0092D SKU: 860-0092-01D
• Stable steel stage • 10 mm travel range • Driving micrometer screw • Precise ball bearings • Stainless steel and vacuum versions available
Variant specifications
| Specification | Value |
|---|---|
| Description | made of steel |
Shared product specifications
These specifications apply across the Vertical Drive Ultra Low Profile Steel Translation Stages 860-0092D product family.
| Travel range | 10 mm |
| Sensitivity | 1 µm |
| Tracking accuracy | 2 µm |
| Reading accuracy | 5 µm (1 / 2 div.) |
| Load capacity | |
| horizontal | 6 kg |
| vertical | 3 kg |
Classification
| Type | translation|rotation |
