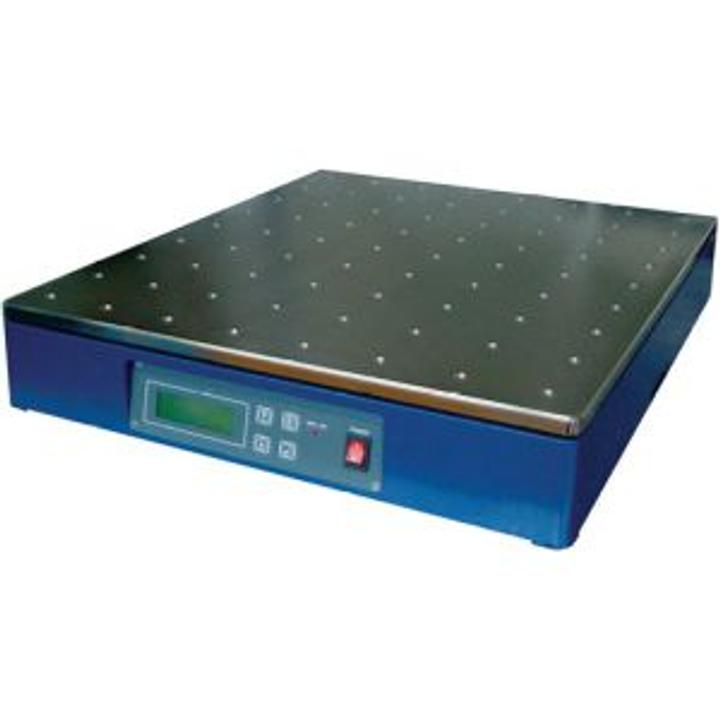

Active Vibration Isolation System 770-5060 SKU: 770-5060
• The isolation of the 770-5060 begins at 0.7 Hz, increasing rapidly to 40 dB beyond 10 Hz; • The lack of any low frequency resonance means much better performance than with common passive damping approaches; • The inherent stiffness of the 770-5090 imparts excellent directional…
Variant specifications
| Specification | Value |
|---|---|
| Description | solid board without holes |
Shared product specifications
These specifications apply across the Active Vibration Isolation System 770-5060 product family.
| Isolation | Dynamic 0.7 Hz to 200 Hz, mainly passive at a higher frequencies although for good stability the feedback is active at least 2 kHz. |
| Transmissibility | See Transmissibility Curve. Above 10 Hz transmissibility <0.01 (-40 dB) |
| Maximum load | 140 kg |
| Dimensions | 500x600x80 mm |
| Self-weight | 23 kg |
| Electrical | |
| Safety Class | 1 |
| Power Consumption | Maximum 10 W when isolating, maximum 20 W during load adjustment |
| Input Voltage | 90-120 V AC, 47-63 Hz / 200-240 V AC, 47-63 Hz |
| Fuses | 2x1.6 A / 250 V slow, located in the power socket on the rear side of the unit |
| Normal Enviromental Conditions | |
| Protection Class | IP 20 |
| Temperature Range | 5-40° C |
| Relative Humidity | 10-90% (5-30° C) / 10-60% (30-40° C) |
| Application | Indoor |
| Altitude | Up to 2000 m (6 500 ft) |
