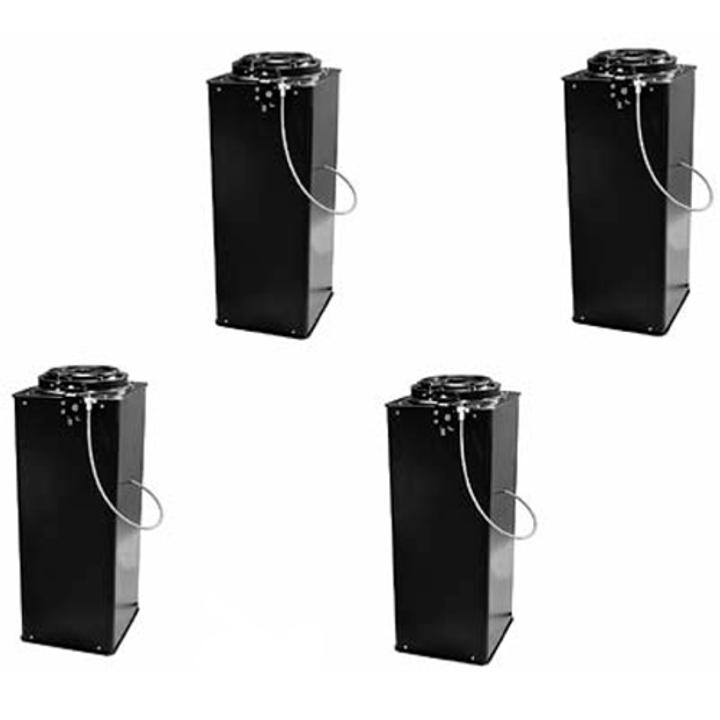

Pneumatic Vibration Isolation System 742 SKU: 742-5004
Vertical resonance frequency: 1.5 Hz (average load) Horizontal resonance frequency: 1.7 Hz (average load) Air source pressure: up to 600 KPa (6 bar) (87 PSI) Pneumatic Vibration Isolation System 742 is a convenient foundation for equipment which is sensitive to vibration,…
Variant specifications
| Specification | Value |
|---|---|
| Height of Isolator | 500 mm |
| Number of Isolators | 4 |
Shared product specifications
These specifications apply across the Pneumatic Vibration Isolation System 742 product family.
Specifications
| Height of the vibration isolation system | H= 400, 500, 600, 700 mm |
| Vertical movement range | 14mm |
| Precision of automatic level control | ±0.3 mm |
| Vertical resonance frequency | 1.5 Hz (average load) |
| Vertical isolation at 5 Hz | 85–93% |
| Vertical isolation at 10 Hz | 90–98% |
| Horizontal resonance frequency | 1.7 Hz (average load) |
| Horizontal isolation at 5 Hz | 85–93% |
| Horizontal isolation at 10 Hz | 90–97% |
| Pressure from source of air | 600 KPa (6 bar) (87 PSI) |
| Air supply socket opening | Ø 6 mm |
| Operating humidity (max) | 90% |
| Operating temperature range | 10–50 ºC |
| Load-bearing capacity (at 6 bar) | 1,060 kg per isolator |
