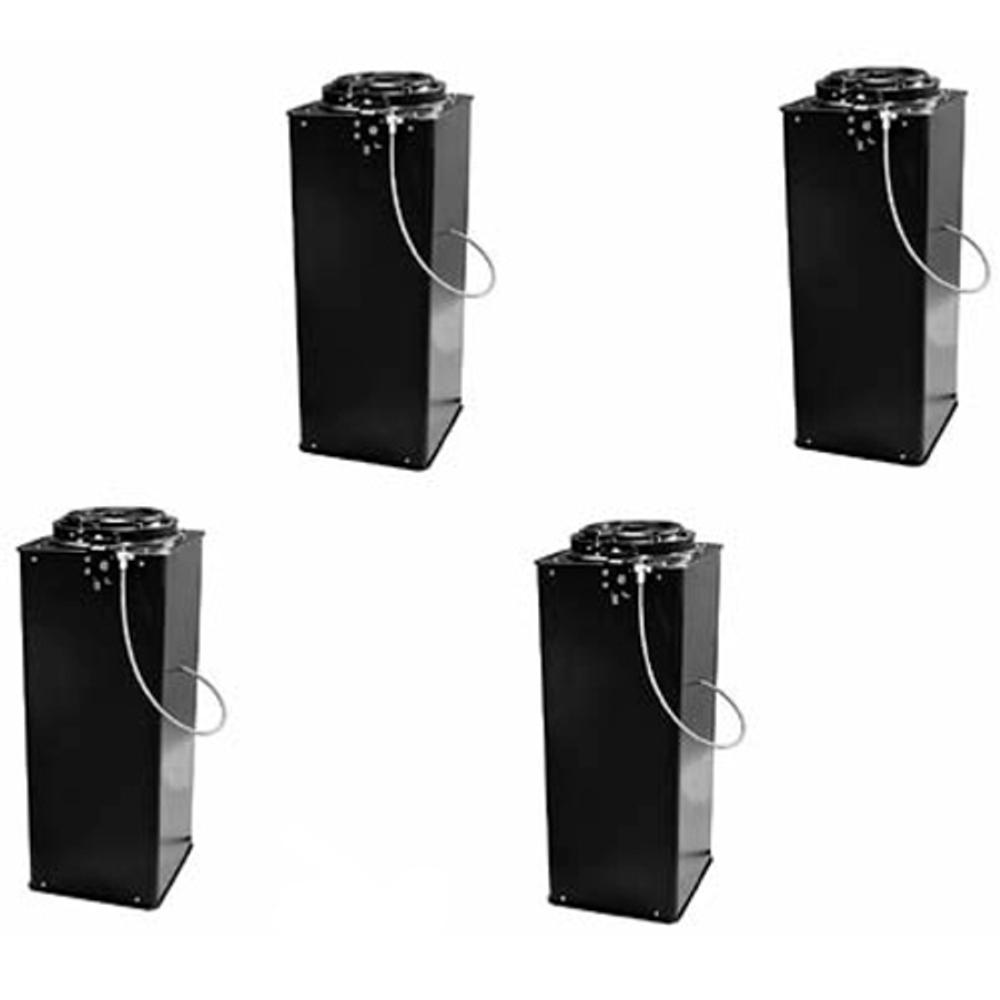

Pneumatic Vibration Isolation System 742
Vertical resonance frequency: 1.5 Hz (average load) Horizontal resonance frequency: 1.7 Hz (average load) Air source pressure: up to 600 KPa (6 bar) (87 PSI) Pneumatic Vibration Isolation System 742 is a convenient… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Height of Isolator · Number of Isolators | |
|---|---|---|
| 742-4004 | 400 mm·4 |
Out of stock
—
|
| 742-5004 | 500 mm·4 |
Out of stock
—
|
| 742-6004 | 600 mm·4 |
Out of stock
—
|
| 742-7004 | 700 mm·4 |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
Specifications
| Height of the vibration isolation system | H= 400, 500, 600, 700 mm |
| Vertical movement range | 14mm |
| Precision of automatic level control | ±0.3 mm |
| Vertical resonance frequency | 1.5 Hz (average load) |
| Vertical isolation at 5 Hz | 85–93% |
| Vertical isolation at 10 Hz | 90–98% |
| Horizontal resonance frequency | 1.7 Hz (average load) |
| Horizontal isolation at 5 Hz | 85–93% |
| Horizontal isolation at 10 Hz | 90–97% |
| Pressure from source of air | 600 KPa (6 bar) (87 PSI) |
| Air supply socket opening | Ø 6 mm |
| Operating humidity (max) | 90% |
| Operating temperature range | 10–50 ºC |
| Load-bearing capacity (at 6 bar) | 1,060 kg per isolator |
Description
Vertical resonance frequency: 1.5 Hz (average load) Horizontal resonance frequency: 1.7 Hz (average load) Air source pressure: up to 600 KPa (6 bar) (87 PSI) Pneumatic Vibration Isolation System 742 is a convenient foundation for equipment which is sensitive to vibration, e.g. microscopes, scales, interferometers, and similar devices.Work surface of the table is separated from the floor by means of a highly effective system of pneumatic supports, i.e. pneumatic springs with hydraulic (oil) dampers.The system features solid and light supports that come in various dimensions to support a wide range of table top sizes.This enables quick creation of vibration isolation systems for a variety of tasks.Maximum load capacity of each support leg is 1000 kg.
