Corner Cubes SKU: 340-0439

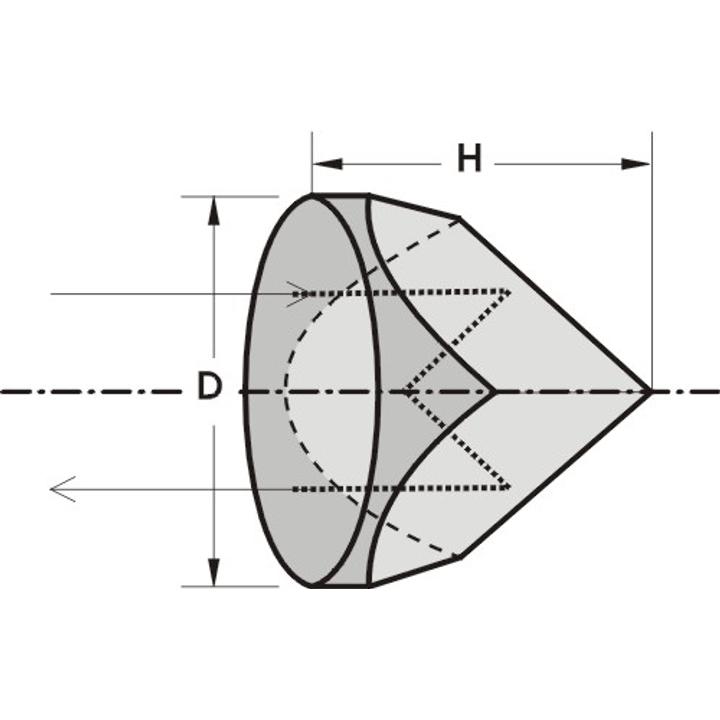

• Deviate incident light by 180 degrees independently of an angle of incidence These prisms (corner cube) have 3 mirror surfaces making angles of 90° to each other, juxtaposed to form the corner of a cube with the entrance face perpendicular to cube diagonal. All beams, despite…
Variant specifications
| Specification | Value |
|---|---|
| Material | BK7 |
| Diameter D | 50,0 mm |
| Height H | 37,5 mm |
Shared product specifications
These specifications apply across the Corner Cubes product family.
| Material | BK7, UV FS |
| Surface quality | 40-20 scratch & dig (MIL-PRF-13830B) |
| Flatness | λ / 4 at 633 nm |
| Angle tolerances | ±5 arcsec |
| Beam deviation | 180° ±30sec |
| Diameter tolerance | +0.0 / -0.3mm |
| Clear aperture | >80% |
| Uncoated |
