High Power Laser Mirrors for Nanosecond Applications SKU: 061-5306HHR
New ultra high damage threshold laser mirrors are designed for applications with femtosecond lasers. These mirrors are produced using advanced IBS coating technology. Mirrors design wavelengths include fundamental Nd:YAG laser 1064 nm, its frequency-doubled 532 nm and 800 nm…
Variant specifications
| Specification | Value |
|---|---|
| Wavelength | 532+1064 nm |
| Material | UV FS |
| Size | ø12.7 x 6 mm |
| AOI | 45° |

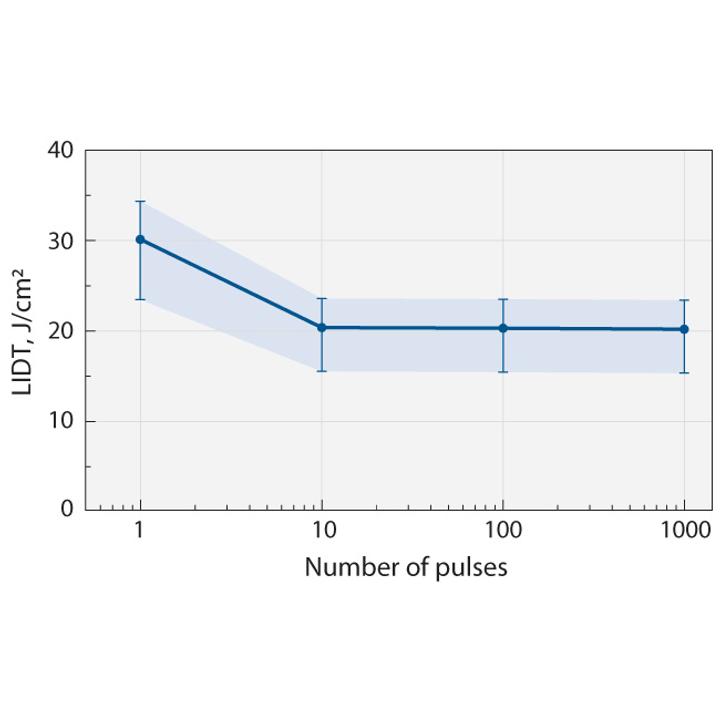

| LIDT | >15 J/cm2@1064 nm, >5 J/cm2@532 nm |
| R, % (s+p)/2 | 99.5% |
Shared product specifications
These specifications apply across the High Power Laser Mirrors for Nanosecond Applications product family.
Substrate
| Material | UV grade fused silica |
| S1 Surface flatness | λ / 10 at 633 nm |
| S1 Surface quality | 20-10 scratch&dig (MIL-PRF-13830B) |
| S2 Surface quality | Commercial polish |
| Diameter tolerance | +0.00 mm / -0.12 mm |
| Thickness tolerance | ±0.25 mm |
| Wedge | < 3 min |
| Chamfer | 0.3 mm at 45° typical |
Coating
| Technology | Ion Beam Sputtering (IBS) |
| Adhesion and Durability | Per MIL-C-675A, Insoluble in lab solvents |
| Clear apterture | Exceeds 85% of diameter |
| Coated surface flatness | λ / 8 at 633 nm over 80% of diameter |
| Laser Induced Damage Threshold | Measured at design wavelength, 10 ns pulse, 100 Hz |
Classification
| Wavelength | 1064nm |
Variant files
Technical drawings, models and data files for SKU 061-5306HHR.
Product brochures
Shared documentation for the complete product family.
