Nd:YAG Laser Line Mirrors SKU: 045-0350T12HHR-0
Two kinds of substrate material are available. Laser line mirrors are designed for 45° or 0° angle of incidence. Featuring high polishing quality, low scattering and high damage threshold enables dielectric reflectors to have perfect beam steering for Nd:YAG lasers.
Variant specifications
| Specification | Value |
|---|---|
| Wavelength | 351-361 nm |
| Application | YAG 3H |
| Material | UVFS |
| Diameter | ø 50.8 mm |
| Thickness | 12 mm |
| AOI | 0° |
| R, % (s+p)/2 | 99.9% |

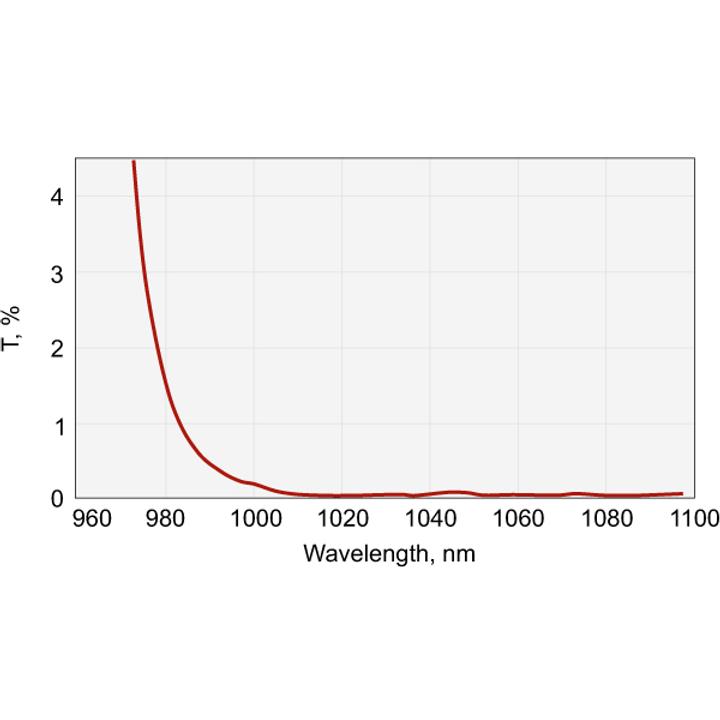

Shared product specifications
These specifications apply across the Nd:YAG Laser Line Mirrors product family.
| Material | UV grade Fused silica or BK7 glass |
| S1 Surface Flatness | λ / 10 at 633 nm |
| S1 Surface Quality | 20-10 scratch & dig (MIL-PRF-13830B) |
| S2 Surface Quality | Commercial polish |
| Diameter Tolerance | +0.00 mm-0.12 mm |
| Thickness Tolerance | ±0.25 |
| Wedge | <3 min |
| Chamfer | 0.3 mm at 45° typical |
| Technology | Electron beam multilayer dielectric or Ion Beam Sputtering |
| Adhesion and Durability | Per MIL-C-675A. Insoluble in lab solvents |
| Clear Aperture | Exceeds central 85% of diameter |
| Damage Threshold | BK7 laser line mirrors 5 J / cm², 8 nsec pulse, 1064 nm typical / UVFS laser line mirrors 8 J / cm², 8 nsec pulse, 1064 nm typical |
| Coated Surface Flatness | λ / 10 at 633 nm over 85% over clear aperture |
| Angle of Incidence | 0 or 45 degrees |
Classification
| Wavelength | 1064nm |
