High Power Laser Mirrors for Picosecond Applications SKU: 041-1030PHR-i0
New ultra high damage threshold laser mirrors are designed for applications with picosecond lasers. These mirrors are produced using advanced IBS coating technology. Mirrors design wavelengths are 515 nm or 1030 nm with reflection values R>99.9%. Laser induced damage…
Variant specifications
| Specification | Value |
|---|---|
| Wavelength | 1030 nm |
| Material | UV FS |
| Size | ø12.7 x 6 mm |
| AOI | 0° |
| R, % (s+p)/2 | 99.95% |

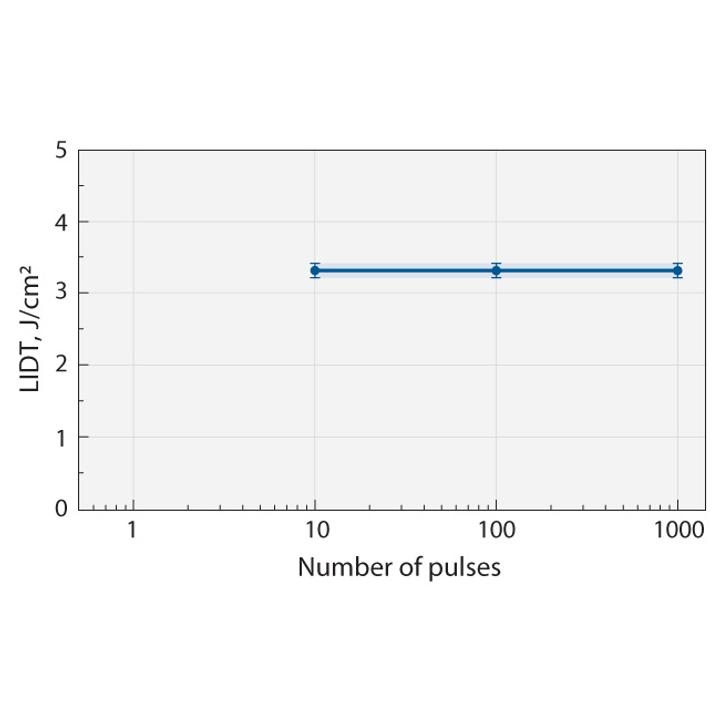

| LIDT | >1.5 J/cm² |
Shared product specifications
These specifications apply across the High Power Laser Mirrors for Picosecond Applications product family.
Substrate
| Material | UV grade fused silica |
| S1 Surface flatness | λ / 10 at 633 nm |
| S1 Surface quality | 20-10 scratch&dig (MIL-PRF-13830B) |
| S2 Surface quality | Commercial polish |
| Diameter tolerance | +0.00 mm / -0.12 mm |
| Thickness tolerance | ±0.25 mm |
| Wedge | < 3 min |
| Chamfer | 0.3 mm at 45° typical |
Coating
| Technology | Ion Beam Sputtering (IBS) |
| Adhesion and Durability | Per MIL-C-675A, Insoluble in lab solvents |
| Clear apterture | Exceeds 85% of diameter |
| Coated surface flatness | λ / 8 at 633 nm over 80% of diameter |
| Laser Induced Damage Threshold | Measured at design wavelength, 10 ps pulse, 20 kHz |
Classification
| Coating | dielectric |
Variant files
Technical drawings, models and data files for SKU 041-1030PHR-i0.
