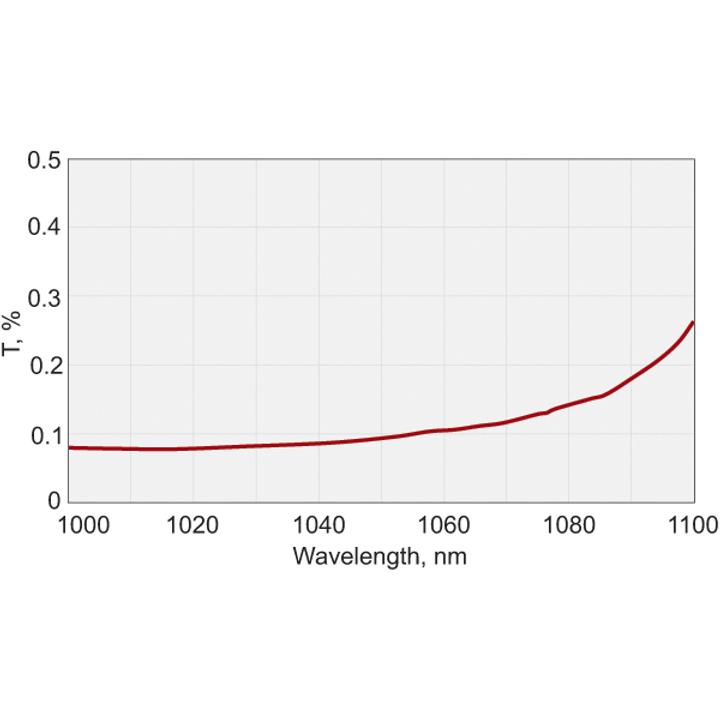

Nd:YAG Laser Rear Mirrors SKU: 032-9030
Laser rear mirrors with hard dielectric coatings for pulsed and CW high power fundamental Nd:YAG laser applications. High reflectivity (R>99.7%) coatings are applied on laser rear mirrors. The UVFS substrates are suggested for pulsed and CW high power fundamental Nd:YAG laser…
Variant specifications
| Specification | Value |
|---|---|
| Wavelength | 1065 nm |
| Substrate type | Plano-convex |
| Radius | +300 mm |
| Material | BK7 |
| Dimensions | ø25.4 x 6 mm |
Shared product specifications
These specifications apply across the Nd:YAG Laser Rear Mirrors product family.
Substrate
| Material | UV grade fused silica or BK7 glass |
| S1 Surface Irregularity | λ / 10 at 633 nm |
| S1 Surface Quality | 20-10 scratch & dig (MIL-PRF-13830B) |
| S2 Surface Quality | Commercial polish |
| Diameter | Ø 25.4x6mm |
| Diameter Tolerance | +0.00 mm-0.12 mm |
| Thickness Tolerance | ±0.25 |
| Chamfer | 0.3 mm at 45° typical |
| Technology | Electron beam multilayer dielectric |
| Adhesion and Durability | Per MIL-C-675A. Insoluble in lab solvents |
| Clear Aperture | Exceeds central 85% of diameter |
| Damage Threshold | 5 J / cm², 8 nsec pulse, 1064nm typical for BK7 substrates / 8 J / cm², 8 nsec pulse, 1064nm typical for UVFS substrates |
| Angle of Incidence | 0°-8° (normal) |
| Reflectivity | R>99.7% |
Classification
| Wavelength | 1064nm |
