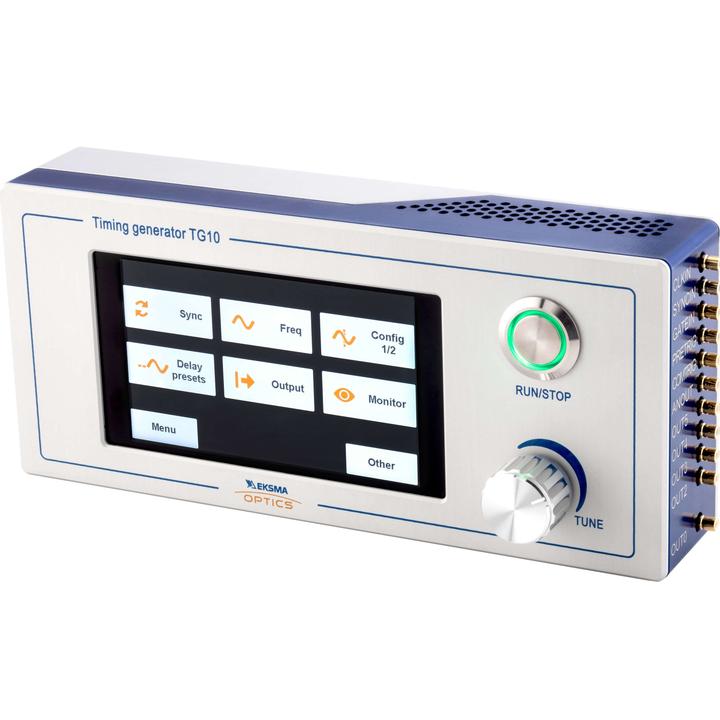

Timing Generators for Laser Sync SKU: SY4000
The compact timing generator TG10 with an ultra-stable 0.2 ppm internal clock creates up to 8 delay channels precisely synchronized to the internal or external clock at up to 100 MHz repetition rate. TG10 features a precise trigger output with an exceptionally low 3-5 ps jitter,…
Variant specifications
| Specification | Value |
|---|---|
| Description | OEM dekstop version in box |
Shared product specifications
These specifications apply across the Timing Generators for Laser Sync product family.
| MODEL | Timing Generator TG10 |
| Time Base | Time Base |
| Internal source | 100 MHz 0.2 ppm TCXO |
| External source, Optical clock | 20-100 MHz |
| Internal rate generator | Internal rate generator |
| Source | 100 MHz clock, Optical clock, SYNC IN, Software command |
| Rate (T0 period) | 50 ns - 100 s (0.01 Hz to 20 MHz) |
| Resolution | 10 ns or 1 Optical period or 1 SYNC IN period |
| RMS jitter | <350 ps |
| External trigger, SYNC IN input | External trigger, SYNC IN input |
| System modes | Direct SYNC IN, SYNC IN re-clocked to Optical clock |
| Rate | DC to 20 MHz |
| Threshold | 1.3 V |
| Input range | 0-5 V |
| Trigger slope | rising edge |
| RMS jitter, Direct SYNC IN | <120 ps |
| RMS jitter, SYNC IN re-clocked | <5 ns |
| Insertion delay | <80 ns |
| Delay generators | Delay generators |
| Channels, total | 8 |
| High res channels | 5 |
| High res channels, resolution | 25 ps |
| Low res channels | 3 |
| Low res channels, resolution | <10 ns |
| Delay | 0-150 ms |
| Pulse width | 2 ns - 150 ms |
| Accuracy, high res channel | 2.5 ns + 0.000001 setpoint |
| Accuracy, Low res channel | ≤10 ns + 0.000001 setpoint |
| Time base, Internal clock | 100 MHz, 0.2 PPM TCXO |
| RSM jitter, channel to channel | <30 ps TTL output, <4 ps PRET output |
| Configuration switch | Configuration switch |
| System modes | Single shot burst, continuous, frequency divider, GATE IN, inverted GATER IN |
| Burst counter | 1 - 65535 |
| Frequency divider | 1 - 32767 |
| Outputs, TTL / COMS | Outputs, TTL / COMS |
| Voltage @50 Ω Load | 2.5 V or 4.5 V |
| Voltage @1 MΩ load | 5 V or 9 V |
| Voltage selection 5 V / 9 V | Internal jumper |
| Impedance | 50 Ω |
| Rise time | 1.5 ns typ |
| Outputs, PRET | Outputs, PRET |
| Pulse amplitude @ 50 Ω load | >1V |
| Impedance | 50 Ω |
| Rise time | 200 ps typ |
| Outputs, differenctial | Outputs, differenctial |
| Type | LVPECL |
| Output, analog | Output, analog |
| DAC resolution | 12 bit |
| Max amplitude @50 Ω | 1 V |
| Power | Power |
| Voltage | 12 V±10% |
| Power | 15 W max |
