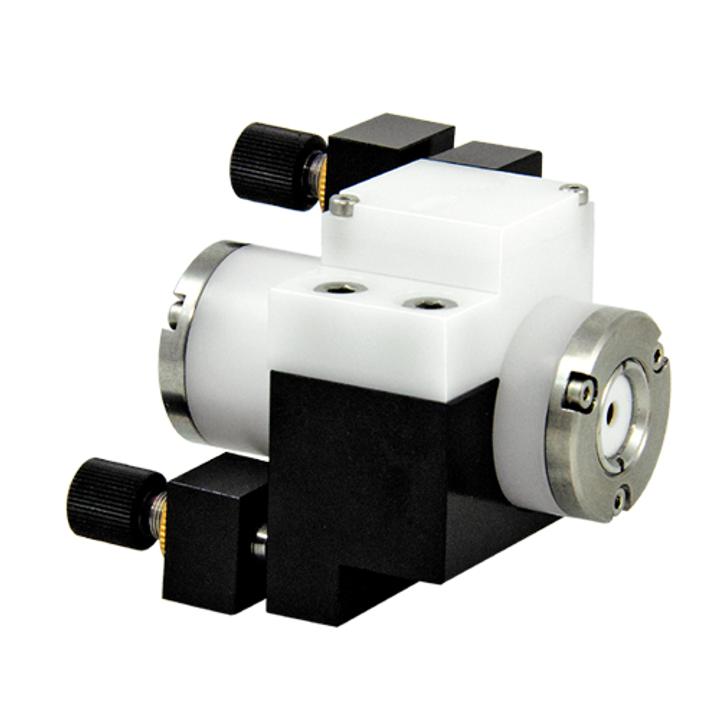

Mounting Stages for Pockels Cells of dia 25.4 mm SKU: PCH1-3-0.35
PCRH series mounting stage for Pockels cells of 25.4 mm of diameter.
Variant specifications
| Specification | Value |
|---|---|
| Amount of Adjustment Screws | 3 |
| Adjustment Screw Thread | M6x0.35 |
| Screw Sensitivity, µm | 1.3 |
Shared product specifications
These specifications apply across the Mounting Stages for Pockels Cells of dia 25.4 mm product family.
Specifications
| SPECIFICATIONS | |
| Adjusting angle allong X and Y axis | 8 deg |
| Rotation angle along Z-axis for D-Compact series Pockels cells | 22 deg |
| Rotating angle along Z-axis for BBO Pockels cells | 12 deg |
Product brochures
Shared documentation for the complete product family.
