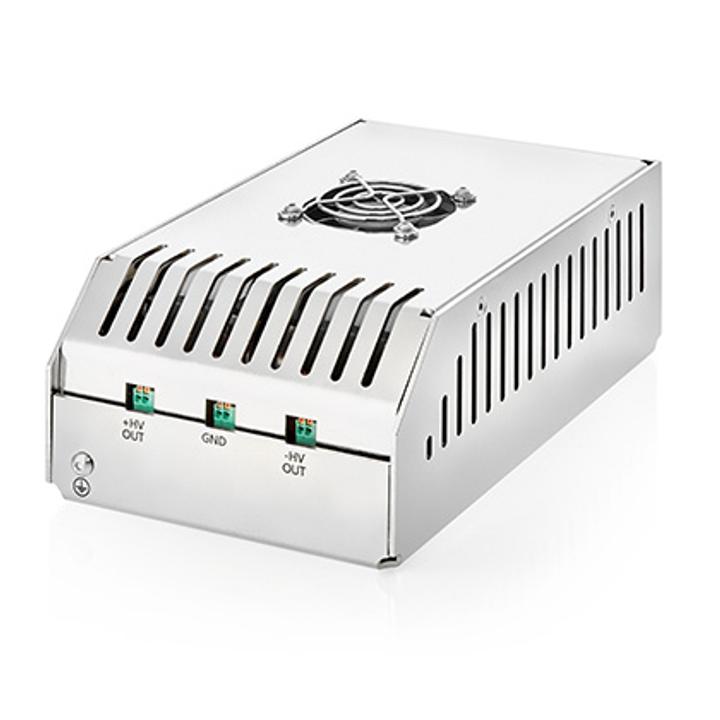

HV Series OEM High Voltage Power Supplies SKU: HV-2x200-2.6
OEM type HV series power supply modules are designed to be used with high power and high repetition rate Pockels cell drivers that require >120 W power from HV source. To extend the versatility of possible applications we offer both single (positive) polarity and bipolar HV…
Variant specifications
| Specification | Value |
|---|---|
| Max HV output | +/- 2.6 kV |
| Max output power | 2x200 W |
Shared product specifications
These specifications apply across the HV Series OEM High Voltage Power Supplies product family.
| Model | HV-200 | HV-400 | HV-2x200 |
|---|---|---|---|
| Maximal high voltage output options | 1.8 kV / 2.6 kV / 3.6 kV / 4.0 kV¹⁾ ²⁾ | 1.8 kV / 2.6 kV / 3.6 kV / 4.0 kV¹⁾ ²⁾ | ±1.5 kV / ±2.0 kV / ±2.6 kV / ±3.6 kV |
| Maximal output | 200 W¹⁾ | 400 W²⁾ | 2 x 200 W |
| Voltage control range | 0 - Umax | 0 - Umax | 0 - Umax |
| Auxiliary output | CAN, RS232, internal trimmer potentiometer | CAN, RS232, internal trimmer potentiometer | CAN, RS232, internal trimmer potentiometer |
| Powering | 48 V, 4.5 A | 48 V, 9 A | 48 V, 9 A |
| Dimensions | 200 x 118 x 75 mm | 200 x 118 x 75 mm | 200 x 118 x 75 mm |
