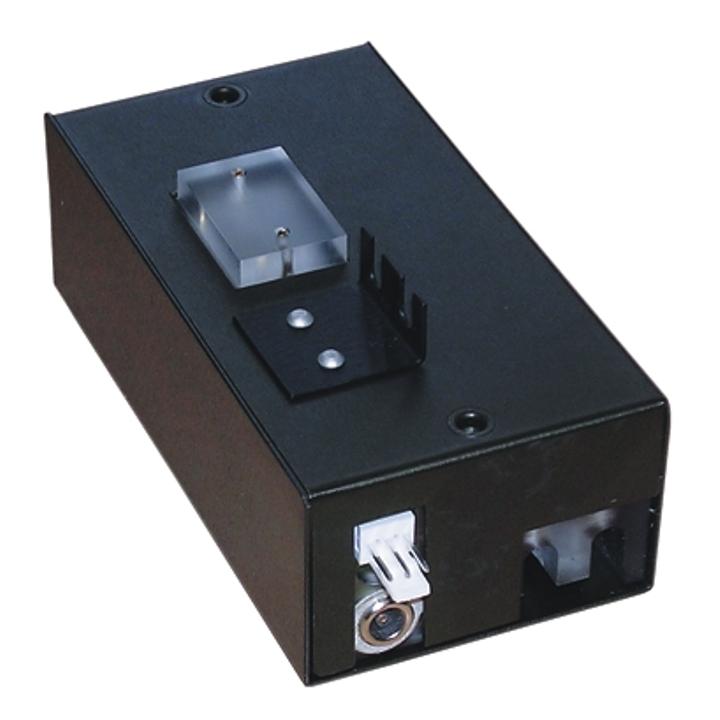

DP Cavity Dumper Driver SKU: DP-3-4.2
DP series cavity dumper driver has been designed for use in mode-locked lasers for cavity dumping or for cavity Q-switching of solid-state nanosecond lasers. Fast HV (less than 7 s.) edge ensures excellent pre- and post-pulse constrast. Two versions are available: DP-3-4.4 and…
Shared product specifications
These specifications apply across the DP Cavity Dumper Driver product family.
Specifications
| Model | DP-3-4.2 |
|---|---|
| Maximum high voltage (HV) pulse amplitude | 4.2 kV |
| HV pulse fall time | < 7 ns |
| HV pulse rise time | ~0.1 ms |
| HV pulse duration | from 5 to 100 µs1) |
| Maximum HV repetition rate | 3 kHz |
| Jitter | < 0.5 ns |
| External triggering pulse duration requirement | 100-1000 ns |
| External triggering pulse amplitude requirement | 3-5 V (50 Ω) |
| External triggering pulse rise & fall time | < 20 ns |
| HV pulse delay | 35-40 ns |
External powering requirements:
| high voltage supply | 4.4 kV, 0.2 mA max |
| low voltage DC supply | 24-28 V, 50 mA max |
| Size | 100 x 50 x 40 mm |
