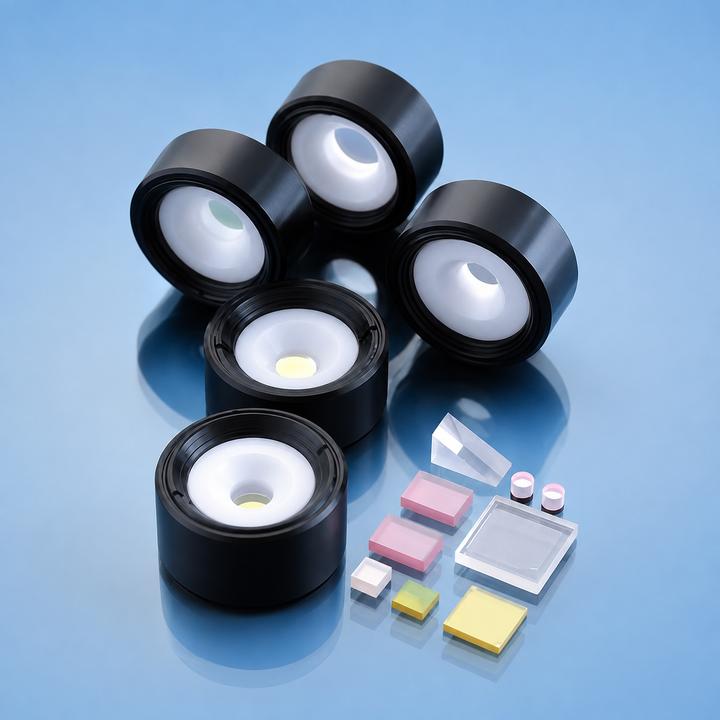

Thin BBO Crystals for THG of Ti:Sapphire Laser Wavelength SKU: BBO-1511H
Free Standing BBO Crystals Crystals down to 100 µm thickness can be manufactured as free standing crystals (not attached to any kind of support). However, ring mounts are highly recommended for safe handling of these thin crystals. Minimum aperture of free standing BBO is 5x5…
Variant specifications
| Specification | Value |
|---|---|
| Aperture | 15x15 mm |
| Thickness | 0.5 mm |
| θ | 44.3 |
| φ | 90 |
| Coating | P/P@400-800/266 |
Shared product specifications
These specifications apply across the Thin BBO Crystals for THG of Ti:Sapphire Laser Wavelength product family.
SPECIFICATIONS
| Flatness | λ/8 @ 633 nm |
| Parallelism | < 20 arcsec |
| Perpendicularity | < 5 arcmin |
| Angle tolerance | < 30 arcmin |
| Aperture tolerance | ± 0.1 mm |
| Surface quality | 10-5 scratch & dig (MIL-PRF-13830B) |
| Clear aperture | >90% of full aperture |
| Laser damage threshold | >0.5 J/cm2, 133 fsec pulse, 800 nm typical, 50 Hz |
