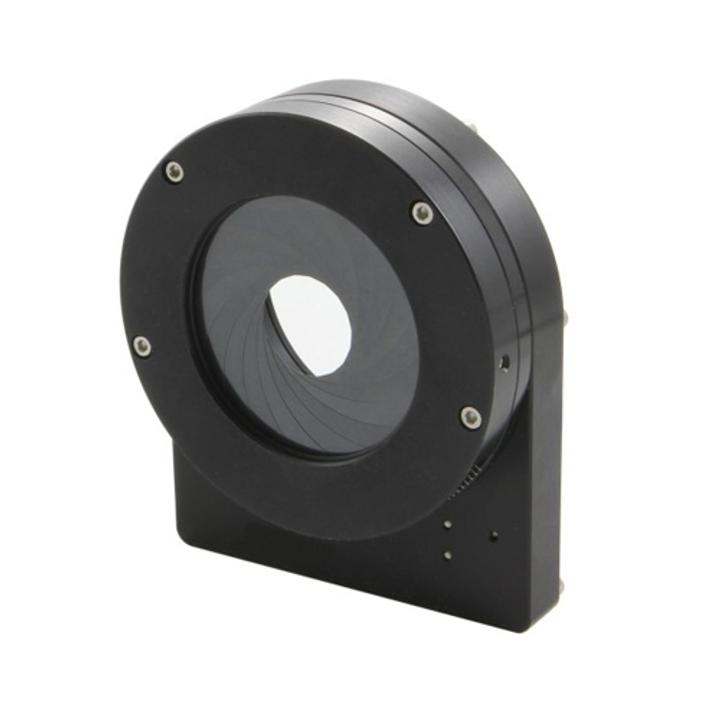

Motorized Iris Diaphragms 996 Series (Max. Aperture Range 30-50 mm) SKU: 996-6040-N
Irises with max. apertures from 30 mm to 50 mm close from min. to max. in 2 seconds with resolution depending on aperture size. Zero aperture motorized Iris Diaphragms are available on request, max. aperture sizes from 12 mm to 40 mm.
Variant specifications
| Specification | Value |
|---|---|
| Diaphragm Used | 993-6040-N |
| d Min. Aperture, mm | 2.5 |
| d Max. Aperture, mm | 40 |
| Resolution, steps per mm | 90 |
Shared product specifications
These specifications apply across the Motorized Iris Diaphragms 996 Series (Max. Aperture Range 30-50 mm) product family.
| Closing speed (min to max) | 2 seconds |
| Stepper motor / gear | 50:1 |
| Limit switch | 2 mechanical |
| Switch polarity | pushed is closed |
| Stepper motor | PG15 / 50 |
Classification
| Type | iris-diaphragm |
