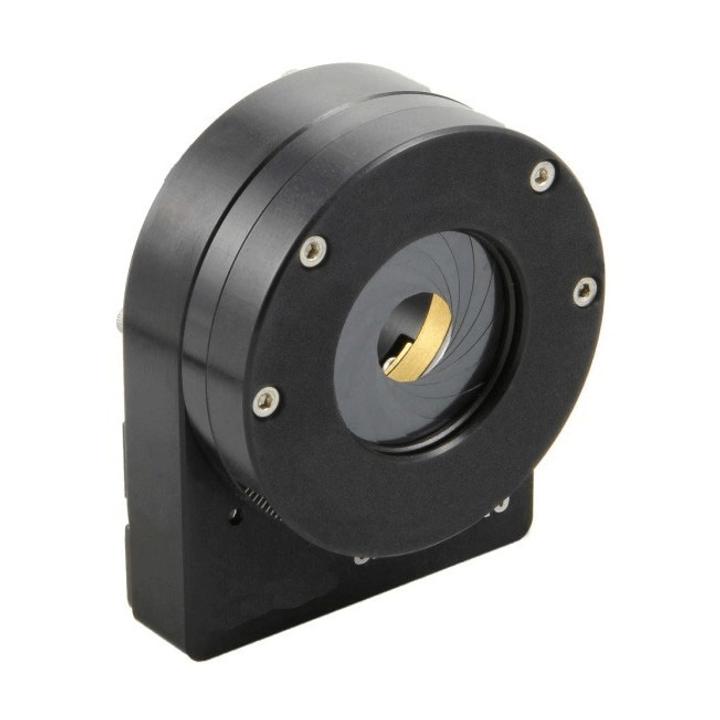

Motorized Iris Diaphragms 995 Series (Max. Aperture Range 5-27 mm) SKU: 995-3725-N
995 Series Motorized Iris Diaphragms are available with various aperture ranges, with apertures from 5 mm to 98 mm. Irises with max. apertures from 5 mm to 27 mm are shown on this page. Irises with max. apertures up to 27 mm close from min. to max. in 1.2 seconds with resolution…
Variant specifications
| Specification | Value |
|---|---|
| Diaphragm Used | 993-3725-N |
| Min. Aperture, mm | 1.5 |
| Max. Aperture, mm | 25 |
| Resolution, steps per mm | 89 |
Shared product specifications
These specifications apply across the Motorized Iris Diaphragms 995 Series (Max. Aperture Range 5-27 mm) product family.
| Closing speed (min to max) | 1.2 seconds |
| Stepper motor / gear | 50:1 |
| Limit switch | 2 mechanical |
| Switch polarity | pushed is closed |
Classification
| Type | iris-diaphragm |
