Unmounted Iris Diaphragms SKU: 993-1290-AR

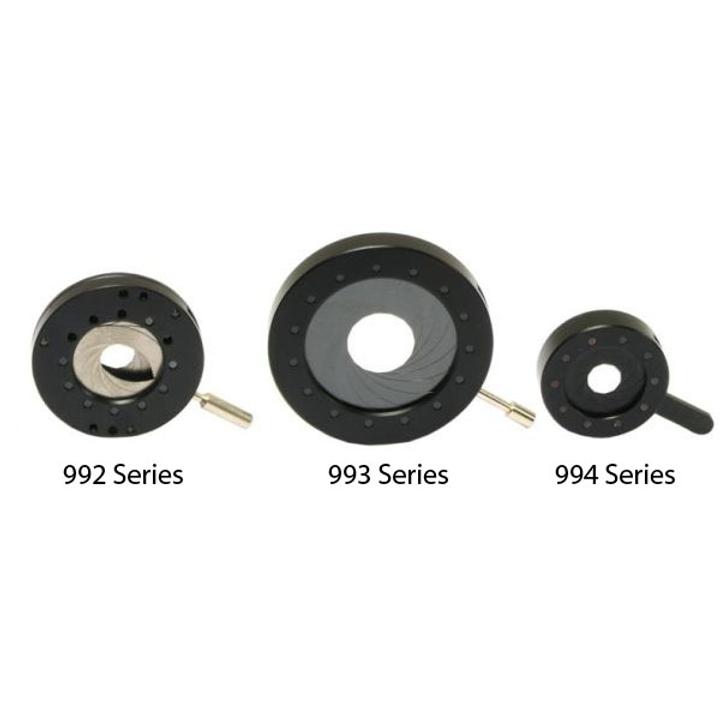

Eksma Optics offers three types of unmounted iris diaphragms: • zero aperture iris diaphragms (992 series) • standard iris diaphragms with retainer (993 series) • standard iris diaphragms screwed (994 series) All Zero Aperture iris diaphragms (992 series) contain two…
Variant specifications
| Specification | Value |
|---|---|
| Min. Aperture | 3.5 mm |
| Max. Aperture | 90 mm |
| Outer Diameter | 120 mm |
| Number of Leaves | 20 |
| Temperature | up to 180°C |
Shared product specifications
These specifications apply across the Unmounted Iris Diaphragms product family.
Classification
| Type | iris-diaphragm |
