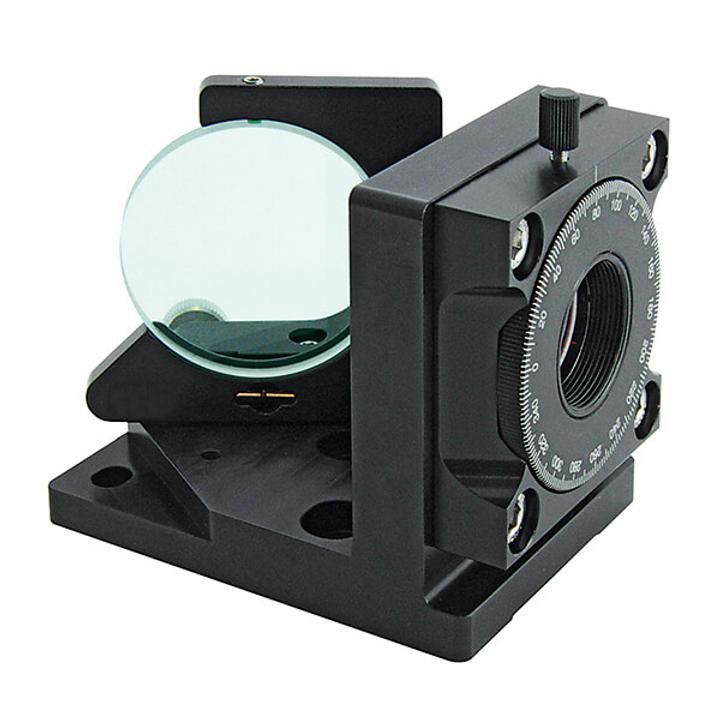

Variable Attenuator for Femtosecond and Nd:YAG Laser Pulses 990-0072 SKU: 990-072-266H
• Divides laser beam into two beams of manually adjustable intensity ratio separated by 68° angle • Large dynamic range • Transmitted beam shift ~1 mm • High optical damage threshold This variable attenuator/beamsplitter consists of UV FS Thin Film Brewster Type…
Variant specifications
| Specification | Value |
|---|---|
| Wavelength | 266 nm |
| Laser Damage Threshold | > 100 mJ/cm², 50 fs pulse, 800 nm |
Shared product specifications
These specifications apply across the Variable Attenuator for Femtosecond and Nd:YAG Laser Pulses 990-0072 product family.
For Femtosecond Applications
| Aperture diameter | 22 mm |
| Damage threshold / for high power laser applications: | >10 mJ / cm², 50 fs pulse at 800 nm, typical / >100 mJ / cm², 50 fs pulse at 800 nm, typical |
| Time dispersion | t<4 fs for 100 fs Ti:Sapphire laser pulses |
| Polarization Contrast | >1:200 |
For Nd:YAG Laser Applications
| Aperture diameter | 22 mm |
| Damage threshold | 5 J / cm² pulsed at 1064 nm, typical |
| Polarization Contrast | >1:200 |
| Manual Variable Attenuator - 3D files |
